L6370 Series

Catalog

PWR LOAD SWITCH, HIGH-SIDE, 35V, VFQFPN

Part	Switch Type	Output Type	Input Type	Voltage - Load [Min]	Voltage - Load [Max]	Mounting Type	Fault Protection	Number of Outputs	Voltage - Supply (Vcc/Vdd)	Features	Interface	Ratio - Input:Output	Package / Case	Current - Output (Max) [Max]	Rds On (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Output Configuration

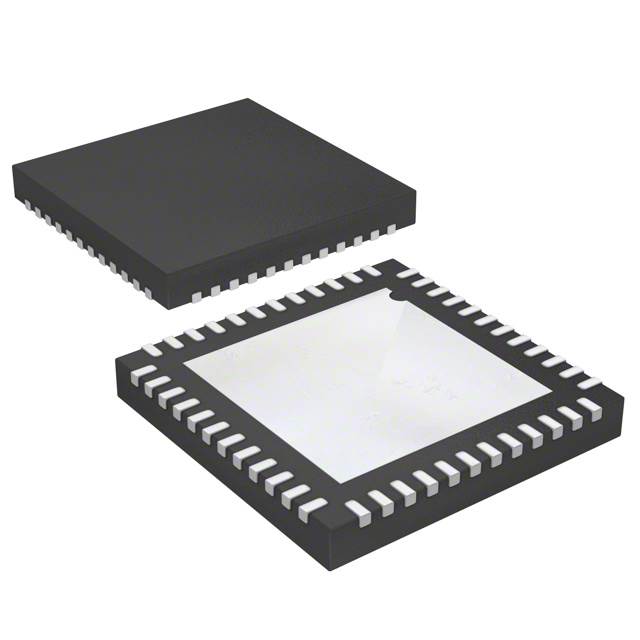

STMicroelectronics L6370QTR	General Purpose	N-Channel	Differential	9.5 V	35 V	Surface Mount	Current Limiting (Fixed) Open Load Detect Over Temperature UVLO	1	Not Required	Status Flag	On/Off	1:1	48-VFQFN Exposed Pad	2.5 A	100 mOhm	125 °C	-25 °C	48-QFN (7x7)	High Side
STMicroelectronics L6370D	General Purpose	N-Channel	Differential	9.5 V	35 V	Surface Mount	Current Limiting (Fixed) Open Load Detect Over Temperature UVLO	1	Not Required	Status Flag	On/Off	1:1	20-SOIC (0.433" 11.00mm Width) Exposed Pad	2.5 A		85 °C	-25 °C	PowerSO-20	High Side
STMicroelectronics L6370D013TR	General Purpose	N-Channel	Differential	9.5 V	35 V	Surface Mount	Current Limiting (Fixed) Open Load Detect Over Temperature UVLO	1	Not Required	Status Flag	On/Off	1:1	20-SOIC (0.433" 11.00mm Width) Exposed Pad	2.5 A		85 °C	-25 °C	PowerSO-20	High Side
