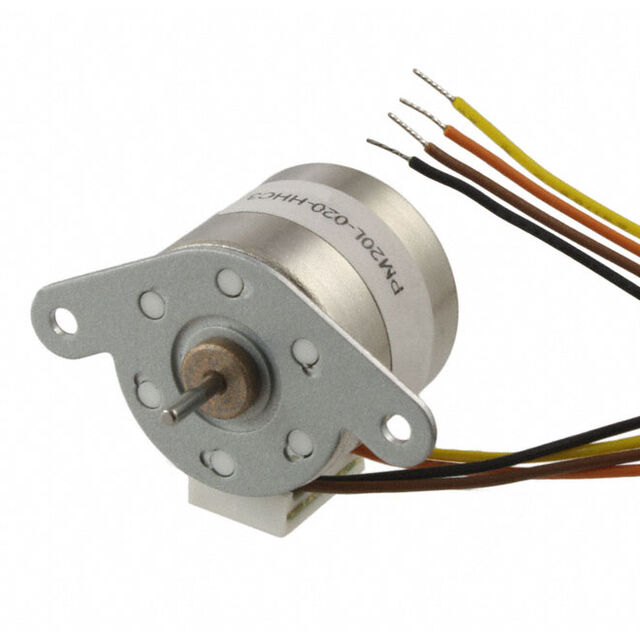

PM20L Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K
STEPPER MOTOR, PERMANENT MAGNET, PERMANENT MAGNET, BIPOLAR, 18 °, 14.7 MN-M, 400 MA
| Part | Type | Coil Resistance | Torque - Holding (oz-in / mNm) | Torque - Holding (oz-in / mNm) | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Coil Type | Termination Style | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | Size / Dimension [diameter] | Size / Dimension [diameter] | Step Angle | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Voltage - Rated | Current Rating (Amps) | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | Permanent Magnet | 13 Ohms | 2.1 oz-in | 15 mNm | 8 mm | 0.315 in | Bipolar | Wire Leads | 1.1 in | 28 mm | 0.787 " | 20 mm | 18 ° | 1.5 mm | 0.059 in | 24 VDC | 400 mA | Round Shaft |
