AD9625 Series
Manufacturer: Analog Devices
Beta
⌘K
EVAL BOARD FOR AD9625
| Part | Number of Bits | Sampling Rate (Per Second) | Input Range | Number of A/D Converters | Power (Typ) @ Conditions | Supplied Contents | Data Interface | Utilized IC / Part | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | Configuration | Architecture | Package / Case | Voltage - Supply, Digital [Min] | Voltage - Supply, Digital [Max] | Input Type | Number of Inputs | Ratio - S/H:ADC | Reference Type | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

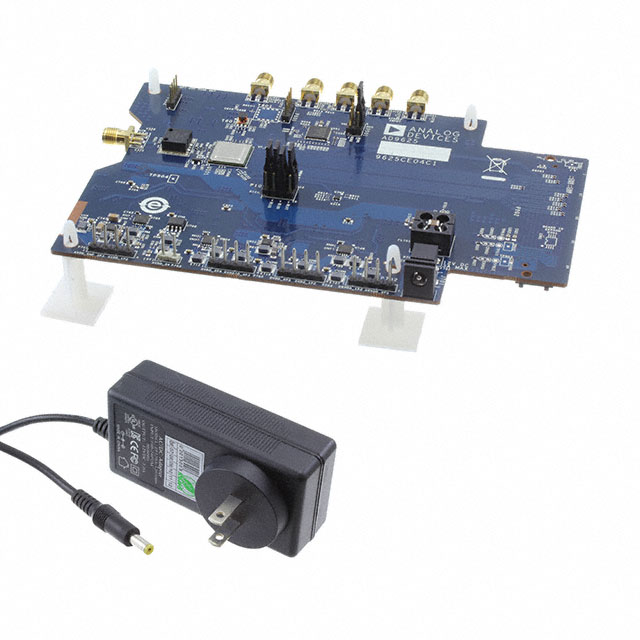

 Analog Devices | 12 bits | 2.6 G | 1 Vpp | 1 | 4 W | Board(s) | Serial JESD204B SPI™ | AD9625 | |||||||||||||||
 Analog Devices | 12 bits | 2.6 G | 1 Vpp | 1 | 4 W | Board(s) | Serial JESD204B SPI™ | AD9625 | |||||||||||||||

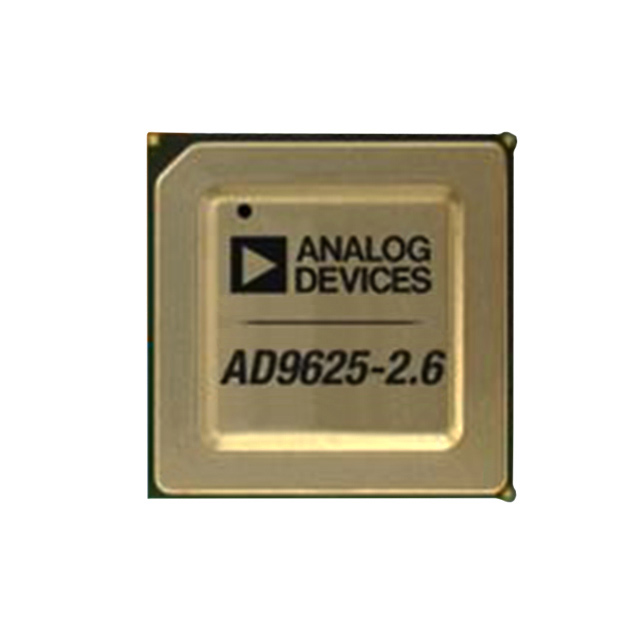

 Analog Devices | 12 bits | 2.6 G | 1 | JESD204B | 1.32 V 2.6 V | 1.26 V 2.4 V | S/H-ADC | Pipelined | 196-LFBGA Exposed Pad | 1.26 V 2.4 V | 1.32 V 2.6 V | Differential | 1 | 1:1 | Internal | Surface Mount | 85 °C | -40 °C | 196-BGA-ED (12x12) | ||||
 Analog Devices | 12 bits | 2.5 G | 1 | JESD204B | 1.32 V 2.6 V | 1.26 V 2.4 V | S/H-ADC | Pipelined | 196-LFBGA Exposed Pad | 1.26 V 2.4 V | 1.32 V 2.6 V | Differential | 1 | 1:1 | Internal | Surface Mount | 85 °C | -40 °C | 196-BGA-ED (12x12) | ||||
Analog Devices | 12 bits | 2.5 G | 1 | JESD204B | 1.32 V 2.6 V | 1.26 V 2.4 V | S/H-ADC | Pipelined | 196-LFBGA Exposed Pad | 1.26 V 2.4 V | 1.32 V 2.6 V | Differential | 1 | 1:1 | Internal | Surface Mount | 85 °C | -40 °C | 196-BGA-ED (12x12) | ||||

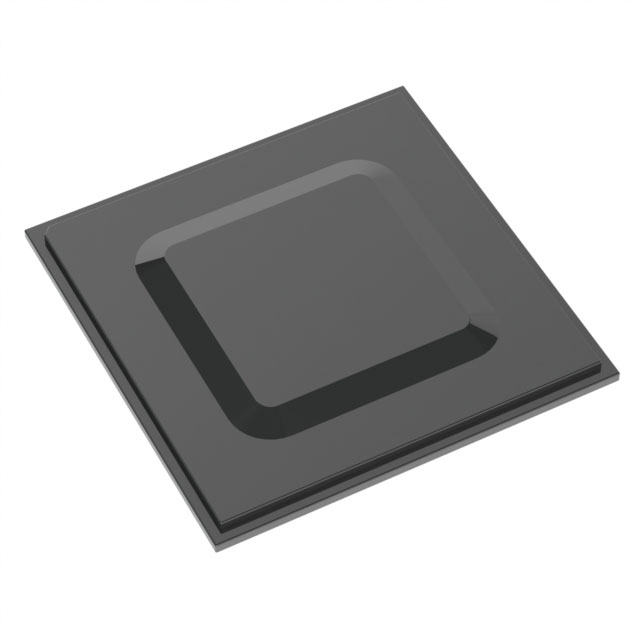

Analog Devices | 196-LFBGA Exposed Pad | Surface Mount | 196-BGA-ED (12x12) | ||||||||||||||||||||

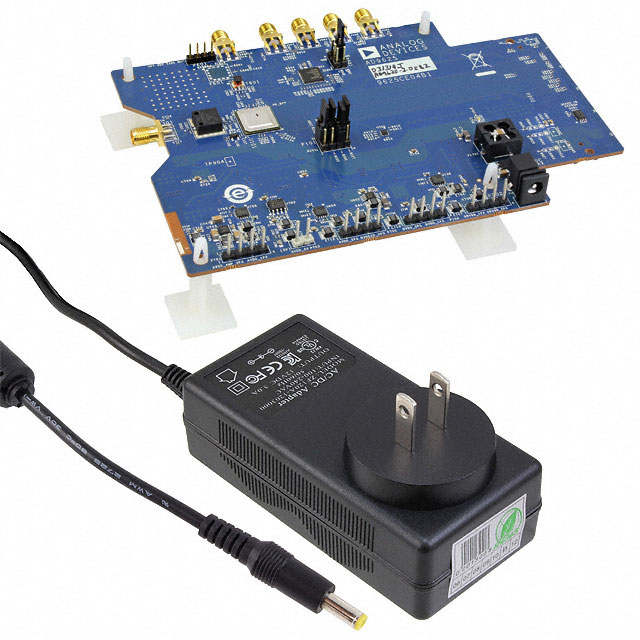

 Analog Devices | 12 bits | 2 G | 1.1 Vpp | 1 | 3.48 W | Board(s) | Serial JESD204B SPI™ | AD9625 |
