C8109 Series
Manufacturer: Prysmian Group
Beta
⌘K

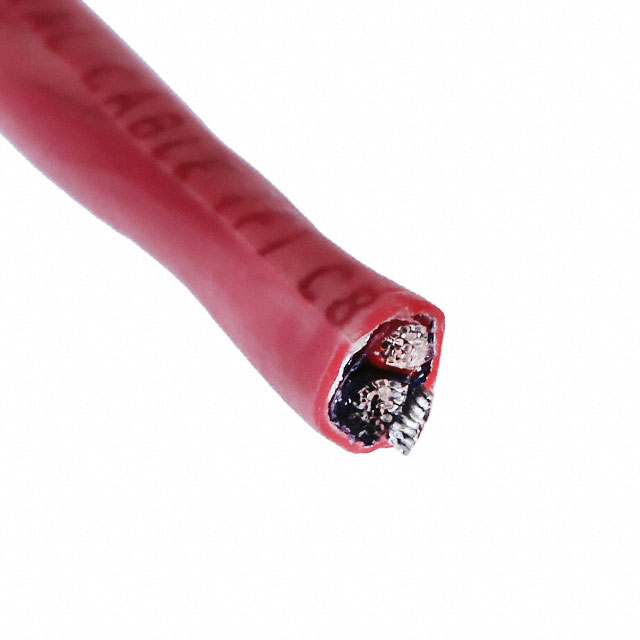

CABLE 2COND 22AWG RED SHLD 100'
| Part | Conductor Insulation | Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Features | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Wire Gauge | Shield Type | Conductor Material | Length [x] | Length [x] | Conductor Strand [custom] | Conductor Strand [custom] | Usage | Number of Conductors | Jacket Color | Shield Material | Shield Coverage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | Fluorinated Ethylene-Propylene (FEP) | 300 VDC | -40 C | 200 °C | 0.122 in | 3.1 mm | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | Drain Wire | Multi-Conductor | 0.406 mm | 0.016 in | Fluorinated Ethylene-Propylene (FEP) | 22 AWG | Foil | Copper Tinned | 100 ft | 30.5 m | 30 AWG | 7 | Communication Control | 2 | Red | ||
Prysmian Group | Fluorinated Ethylene-Propylene (FEP) | 300 VDC | -40 C | 200 °C | 0.122 in | 3.1 mm | 152.4 m 304.8 m | 500 ft 1000 ft | Drain Wire | Multi-Conductor | 0.406 mm | 0.016 in | Fluorinated Ethylene-Propylene (FEP) | 22 AWG | Foil | Copper Tinned | 100 ft | 30.5 m | 30 AWG | 7 | Communication Control | 2 | Red | Flexfoil® | 100 % |
 Prysmian Group | Fluorinated Ethylene-Propylene (FEP) | 300 VDC | -100 °C | 200 °C | 0.122 in | 3.1 mm | Drain Wire | Multi-Conductor | 0.406 mm | 0.016 in | Fluorinated Ethylene-Propylene (FEP) Plenum | 22 AWG | Foil | Copper Annealed Tinned | 30 AWG | 7 | 2 | Red | Flexfoil® | 100 % |
