MCG16P03 Series

Catalog

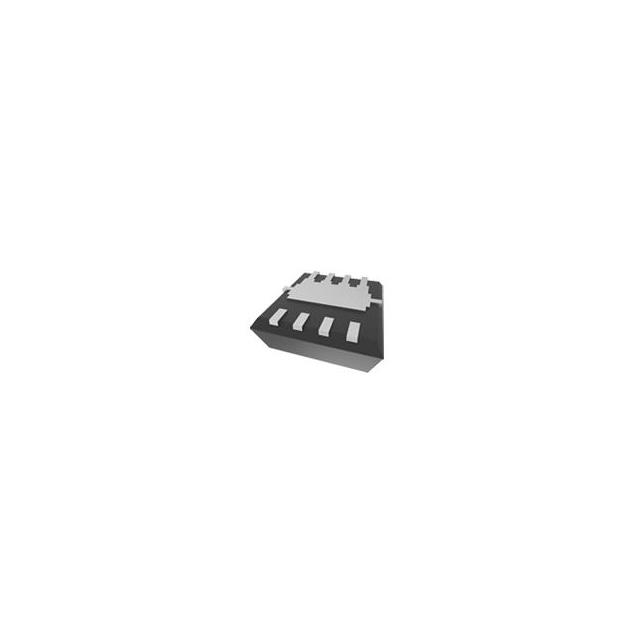

MOSFET P-CH 30V 16A DFN3030

Part	Vgs (Max)	Supplier Device Package	Package / Case	Current - Continuous Drain (Id) @ 25°C	Input Capacitance (Ciss) (Max) @ Vds	Power Dissipation (Max) [Max]	Rds On (Max) @ Id, Vgs	Drain to Source Voltage (Vdss)	Vgs(th) (Max) @ Id	Gate Charge (Qg) (Max) @ Vgs [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Technology	Mounting Type	Drive Voltage (Max Rds On, Min Rds On)	FET Type
Micro Commercial Components MCG16P03-TP	20 V	DFN3030	8-PowerVDFN	16 A	2130 pF	35 W	15 mOhm	30 V	1.9 V	45.6 nC	-55 °C	150 °C	MOSFET (Metal Oxide)	Surface Mount	4.5 V 10 V	P-Channel
