SE10GO Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K

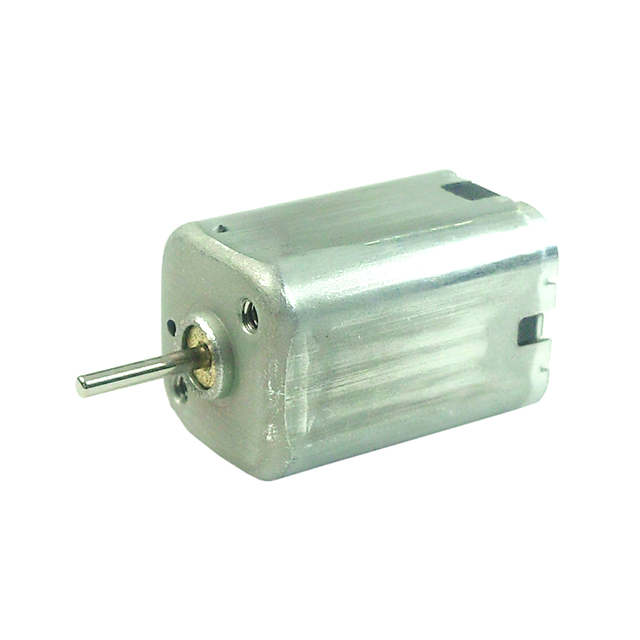

STANDARD MOTOR 5651 RPM 4V
| Part | Weight | Weight | Motor Type | Type | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Termination Style | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Voltage - Rated | RPM | Function | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | 0.013 lb | 5.9 g | Brushed | DC Motor | 10 mm | 0.394 " | 0.394 " | 10 mm | Solder Tab | 0.4 mNm | 0.056 oz-in | 0.039 in | 1 mm | 4 V | 5651 RPM | Standard | 6.5 mm | 0.256 in | 8 mm | 0.315 in |
