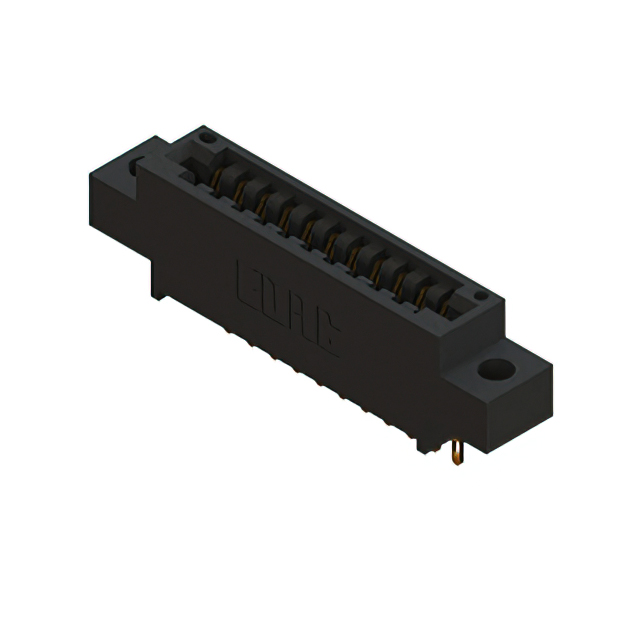

896-011 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SGL FMALE 11POS 0.125
| Part | Material - Insulation | Termination Rows | Number of Positions | Termination | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Card Thickness [Max] | Card Thickness [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Read Out | Pitch | Pitch | Contact Finish | Color | Number of Rows | Contact Type | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Mounting Type | Gender | Card Type | Number of Positions/Bay/Row |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 11 | Solder | 0.25 Ám | 10 Áin | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Single | 3.18 mm | 0.125 in | Gold | Black | 1 | Cantilever | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | Through Hole | Female | Non Specified - Single Edge | 11 |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 11 | Wire Wrap | 0.25 Ám | 10 Áin | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Single | 3.18 mm | 0.125 in | Gold | Black | 1 | Cantilever | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Through Hole | Female | Non Specified - Single Edge | 11 |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 11 | Solder | 0.25 Ám | 10 Áin | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Single | 3.18 mm | 0.125 in | Gold | Black | 1 | Cantilever | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Right Angle Through Hole | Female | Non Specified - Single Edge | 11 |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 11 | Wire Wrap | 0.25 Ám | 10 Áin | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Single | 3.18 mm | 0.125 in | Gold | Black | 1 | Cantilever | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Through Hole | Female | Non Specified - Single Edge | 11 |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 11 | Wire Wrap | 0.25 Ám | 10 Áin | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Single | 3.18 mm | 0.125 in | Gold | Black | 1 | Cantilever | 0.128 " | 3.25 mm | Through Hole | Female | Non Specified - Single Edge | 11 | |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 11 | Solder | 0.25 Ám | 10 Áin | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Single | 3.18 mm | 0.125 in | Gold | Black | 1 | Cantilever | Flush Mount M3 Threaded Insert Top Opening | Right Angle Through Hole | Female | Non Specified - Single Edge | 11 | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 11 | Solder | 0.25 Ám | 10 Áin | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Single | 3.18 mm | 0.125 in | Gold | Black | 1 | Cantilever | 4-40 Threaded Insert Top Mount Opening | Right Angle Through Hole | Female | Non Specified - Single Edge | 11 | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 11 | Solder | 0.25 Ám | 10 Áin | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Single | 3.18 mm | 0.125 in | Gold | Black | 1 | Cantilever | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Right Angle Through Hole | Female | Non Specified - Single Edge | 11 |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 11 | Solder Eyelet(s) | 0.25 Ám | 10 Áin | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Single | 3.18 mm | 0.125 in | Gold | Black | 1 | Cantilever | 0.156 " | 3.96 mm | Through Hole | Female | Non Specified - Single Edge | 11 | |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 11 | Solder Eyelet(s) | 0.25 Ám | 10 Áin | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Single | 3.18 mm | 0.125 in | Gold | Black | 1 | Cantilever | Flush Mount M3 Threaded Insert Top Opening | Through Hole | Female | Non Specified - Single Edge | 11 |
