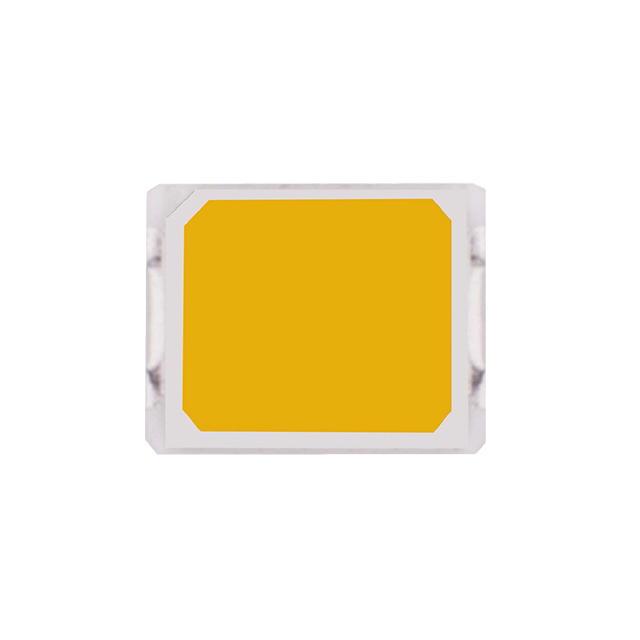

BXEN-40 Series
Manufacturer: BRIDGELUX
Beta
⌘K

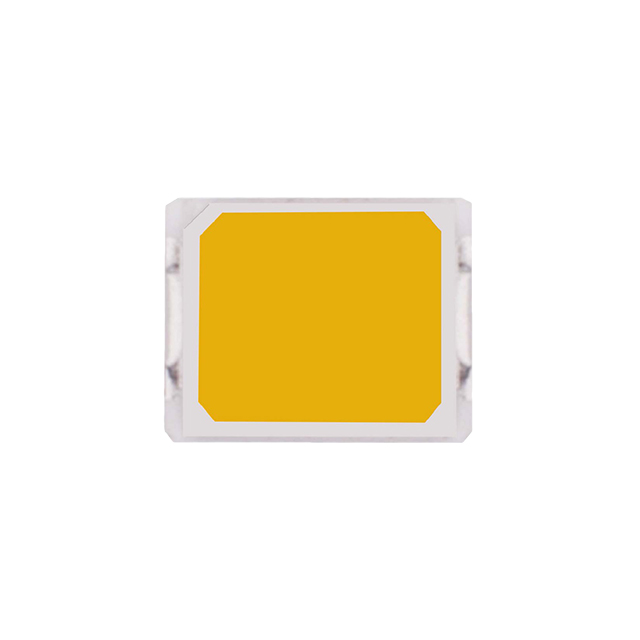

LED GEN2 NEUTRAL WHT 4000K 2835
| Part | Thermal Resistance of Package | Mounting Type | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Supplier Device Package | Current - Test | Voltage - Forward (Vf) (Typ) | Color | CRI (Color Rendering Index) | Lumens/Watt @ Current - Test | Package / Case | CCT (K) | Flux @ 85°C, Current - Test | Current - Max [Max] | Viewing Angle | Flux @ 25°C, Current - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BRIDGELUX | 8 °C/W | Surface Mount | 3.4 mm | 0.134 in | 2.74 mm | 0.108 " | 0.7 mm | 0.028 " | 2835 | 60 mA | 2.7 V | Neutral White | 80 | 172 lm/W | 1113 (2835 Metric) | 4000 K | 28 lm | |||
 BRIDGELUX | 16 °C/W | Surface Mount | 3.4 mm | 0.134 in | 2.74 mm | 0.108 " | 0.7 mm | 0.028 " | 2835 | 100 mA | 9.1 V | Neutral White | 95 | 118 lm/W | 1113 (2835 Metric) | 4000 K | 97 lm | 120 mA | 120 ° | 107 lm |
 BRIDGELUX | 12 °C/W | Surface Mount | 3.4 mm | 0.134 in | 2.74 mm | 0.108 " | 0.7 mm | 0.028 " | 2835 | 150 mA | 3 V | Neutral White | 80 | 133 lm/W | 1113 (2835 Metric) | 4000 K | 60 lm | 150 mA | ||
 BRIDGELUX | 10 °C/W | Surface Mount | 3.4 mm | 0.134 in | 2.74 mm | 0.108 " | 0.7 mm | 0.028 " | 2835 | 100 mA | 9.2 V | Neutral White | 80 | 122 lm/W | 1113 (2835 Metric) | 4000 K | 112 lm | 120 mA | 116 ° | |
 BRIDGELUX | 8 °C/W | Surface Mount | 3.4 mm | 0.134 in | 2.74 mm | 0.108 " | 0.7 mm | 0.028 " | 2835 | 60 mA | 2.75 V | Neutral White | 80 | 170 lm/W | 1113 (2835 Metric) | 4000 K | 28 lm | 80 mA | 116 ° |
