MCS-16 Series
Manufacturer: Omnetics
Beta
⌘K

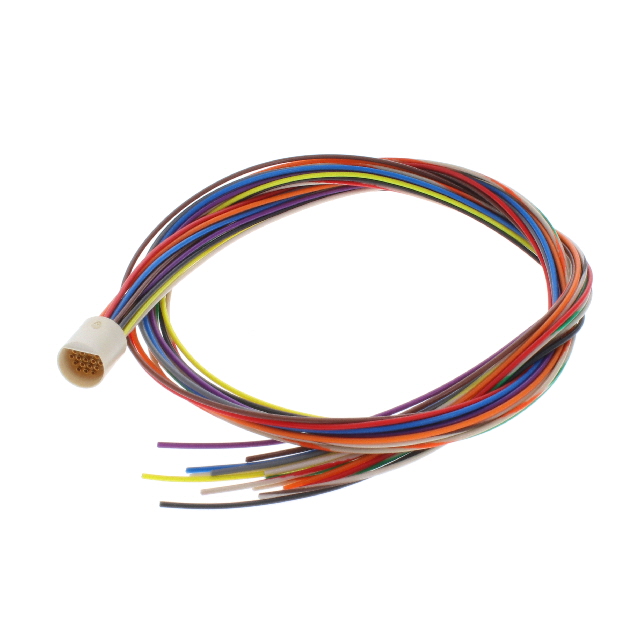

CIRC CBL 16POS RCPT TO WIRE 1.5'
| Part | 1st Connector Type | Color | 1st Connector Number of Positions Loaded | Shielding | Cable Material | 1st Connector Orientation | 1st Connector Number of Positions | 1st Connector Mounting Type | Length [x] | Length [x] | 2nd Connector Type | 1st Connector Gender | Assembly Configuration | Cable Type | Usage | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material | Insert Material | Contact Finish - Mating | Primary Material | Number of Positions | Mounting Type | Current Rating (Amps) | Shell Material | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Orientation | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omnetics | Receptacle | Multiple | All | Unshielded | Polytetrafluoroethylene (PTFE) | Keyed | 16 | Free Hanging (In-Line) | 457.2 mm | 1.5 ft | Wire Leads | Female Sockets | Standard | Individual | Industrial Environments | |||||||||||||||

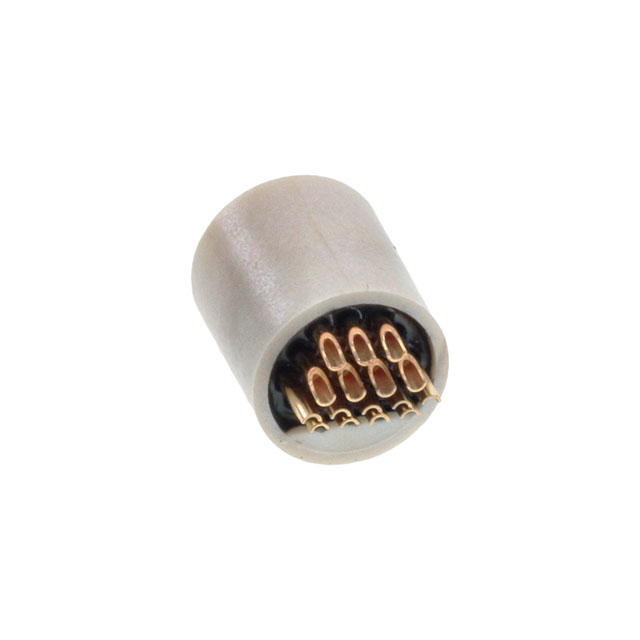

 Omnetics | Natural | Unshielded | 50 µin | 1.27 µm | Copper Alloy | Liquid Crystal Polymer (LCP) | Gold | Plastic | 16 | Free Hanging (In-Line) | 3 A | Liquid Crystal Polymer (LCP) | -55 C | 125 °C | Push-Pull | Keyed | Receptacle Female Sockets |
