AD8065 Series

High Performance, 145 MHzFastFET™Op Amps

Catalog

High Performance, 145 MHzFastFET™Op Amps

Part	-3db Bandwidth	Package / Case	Voltage - Supply Span (Min) [Min]	Mounting Type	Slew Rate	Output Type	Amplifier Type	Voltage - Input Offset	Current - Output / Channel	Supplier Device Package	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply Span (Max) [Max]	Current - Supply	Current - Input Bias	Channels per IC	Utilized IC / Part	Board Type	Supplied Contents	Package / Case [y]	Package / Case [x]	Grade
Analog Devices AD8065ART-R2	145 MHz	SC-74A SOT-753	5 V	Surface Mount	180 V/µs	Rail-to-Rail	Voltage Feedback	400 µV	30 mA	SOT-23-5	1	85 °C	-40 °C	24 V	6.6 mA	3 pA
Analog Devices AD8065ARTZ-REEL	145 MHz	SC-74A SOT-753	5 V	Surface Mount	180 V/µs	Rail-to-Rail	Voltage Feedback	400 µV	30 mA	SOT-23-5	1	85 °C	-40 °C	24 V	6.6 mA	3 pA

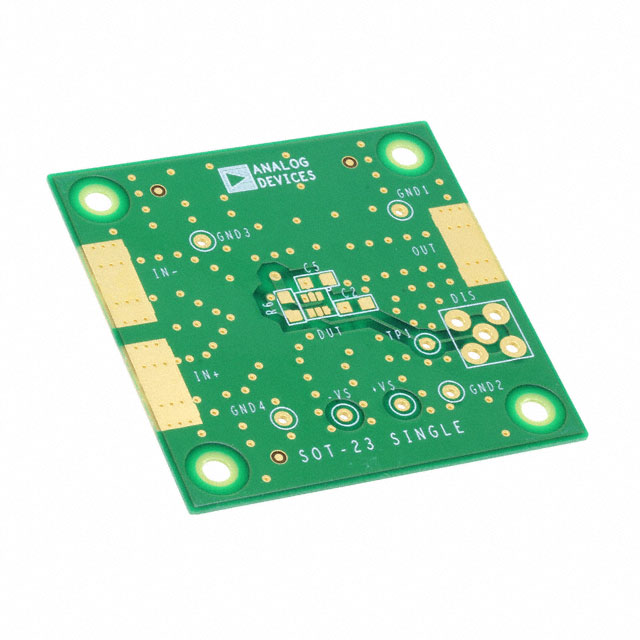

Analog Devices AD8065ART-EBZ							Voltage Feedback										1 - Single	SOT-23-5 Package	Bare (Unpopulated)	Board(s)
Analog Devices AD8065ARZ-REEL	145 MHz	8-SOIC	5 V	Surface Mount	180 V/µs	Rail-to-Rail	Voltage Feedback	400 µV	30 mA	8-SOIC	1	85 °C	-40 °C	24 V	6.6 mA	3 pA					3.9 mm	0.154 in
Analog Devices AD8065ARTZ-R2	145 MHz	SC-74A SOT-753	5 V	Surface Mount	180 V/µs	Rail-to-Rail	Voltage Feedback	400 µV	30 mA	SOT-23-5	1	85 °C	-40 °C	24 V	6.6 mA	3 pA
Analog Devices AD8065ARZ-REEL7	145 MHz	8-SOIC	5 V	Surface Mount	180 V/µs	Rail-to-Rail	Voltage Feedback	400 µV	30 mA	8-SOIC	1	85 °C	-40 °C	24 V	6.6 mA	3 pA					3.9 mm	0.154 in
Analog Devices AD8065ARTZ-REEL7	145 MHz	SC-74A SOT-753	5 V	Surface Mount	180 V/µs	Rail-to-Rail	Voltage Feedback	400 µV	30 mA	SOT-23-5	1	85 °C	-40 °C	24 V	6.6 mA	3 pA
Analog Devices AD8065ART-REEL7	145 MHz	SC-74A SOT-753	5 V	Surface Mount	180 V/µs	Rail-to-Rail	Voltage Feedback	400 µV	30 mA	SOT-23-5	1	85 °C	-40 °C	24 V	6.6 mA	3 pA
Analog Devices AD8065WARTZ-R7	145 MHz	SC-74A SOT-753	5 V	Surface Mount	180 V/µs	Rail-to-Rail	Voltage Feedback	400 µV	30 mA	SOT-23-5	1	105 ░C	-40 °C	24 V	6.6 mA	3 pA							Automotive

Catalog

High Performance, 145 MHzFastFET™Op Amps

Key Features

• Qualified for automotive applications

• FET input amplifier

• 1 pA input bias current

• Low cost

• High speed: 145 MHz, −3 dB bandwidth (G = +1)

• 180 V/µs slew rate (G = +2)

• Low noise7 nV/√Hz(f = 10 kHz)0.6 fA/√Hz(f = 10 kHz)

• 7 nV/√Hz(f = 10 kHz)

• 0.6 fA/√Hz(f = 10 kHz)

• Wide supply voltage range: 5 V to 24 V

• Single-supply and rail-to-rail output

• Low offset voltage 1.5 mV maximum

• High common-mode rejection ratio: −100 dB

• Excellent distortion specifications

• SFDR −88 dBc @ 1 MHz

• Low power: 6.4 mA/amplifier typical supply current

• No phase reversal

• Small packaging: SOIC-8, SOT-23-5, and MSOP-8

• Download AD8065-KGD-CHIPS Data Sheet

Description

The AD8065/AD80661FastFET™ amplifiers are voltage feedback amplifiers with FET inputs offering high performance and ease of use. The AD8065 is a single amplifier, and the AD8066 is a dual amplifier. These amplifiers are developed in the Analog Devices, Inc. proprietary XFCB process and allow exceptionally low noise operation (7.0 nV/√Hzand 0.6 fA/√Hz) as well as very high input impedance.With a wide supply voltage range from 5 V to 24 V, the ability to operate on single supplies, and a bandwidth of 145 MHz, the AD8065/AD8066 are designed to work in a variety of applications. For added versatility, the amplifiers also contain rail-to-rail outputs.Despite the low cost, the amplifiers provide excellent overall performance. The differential gain and phase errors of 0.02% and 0.02°, respectively, along with 0.1 dB flatness out to 7 MHz, make these amplifiers ideal for video applications. Additionally, they offer a high slew rate of 180 V/µs, excellent distortion (SFDR of −88 dBc @ 1 MHz), extremely high common-mode rejection of −100 dB, and a low input offset voltage of 1.5 mV maximum under warmed up conditions. The AD8065/AD8066 operate using only a 6.4 mA/amplifier typical supply current and are capable of delivering up to 30 mA of load current.The AD8065/AD8066 are high performance, high speed, FET input amplifiers available in small packages: SOIC-8, MSOP-8, and SOT-23-5. They are rated to work over the industrial temperature range of −40°C to +85°C.The AD8065WARTZ-R7 is fully qualified for automotive applications. It is rated to operate over the extended temperature range (−40°C to +105°C), up to a maximum supply voltage range of ±5 V onlyApplicationsAutomotive driver assistance systemsPhotodiode preampsFiltersA/D driversLevel shiftingBuffering
