GT8E Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONNECTOR
| Part | Note | Contact Termination | Connector Type | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Fastening Type | Insulation Material | Mounting Type | Color | Pitch [x] | Pitch [x] | Number of Positions Loaded | Termination | Pitch - Mating | Pitch - Mating | Contact Material | Style | Row Spacing - Mating | Row Spacing - Mating | Number of Positions | Insulation Color | Contact Length - Post | Contact Length - Post | Number of Rows [custom] | Shrouding | Contact Shape | Features | Contact Finish - Post | Insulation Height | Insulation Height | Row Spacing | Row Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | ||||||||||||||||||||||||||||||||||
Hirose Electric Co Ltd | ||||||||||||||||||||||||||||||||||
 Hirose Electric Co Ltd | Contacts Not Included | Crimp | Plug | Male Pin | -40 C | 105 ░C | 1 | Latch Holder | Polybutylene Terephthalate (PBT) | Free Hanging (In-Line) | Black | 0.079 in | 2 mm | |||||||||||||||||||||
Hirose Electric Co Ltd | Header | Male Pin | Latch Lock | Polybutylene Terephthalate (PBT) | Right Angle Through Hole | All | Solder | 0.079 " | 2 mm | Brass | Board to Cable/Wire | 2 mm | 0.079 in | 12 | Black | 0.118 in | 3 mm | 2 | Shrouded - 4 Wall | Square | Board Guide | Tin | ||||||||||||
Hirose Electric Co Ltd | ||||||||||||||||||||||||||||||||||
 Hirose Electric Co Ltd | Contacts Not Included | Crimp | Plug | Male Pin | -40 C | 105 ░C | 1 | Latch Holder | Polybutylene Terephthalate (PBT) | Free Hanging (In-Line) | Black | 0.079 in | 2 mm | 4 | ||||||||||||||||||||

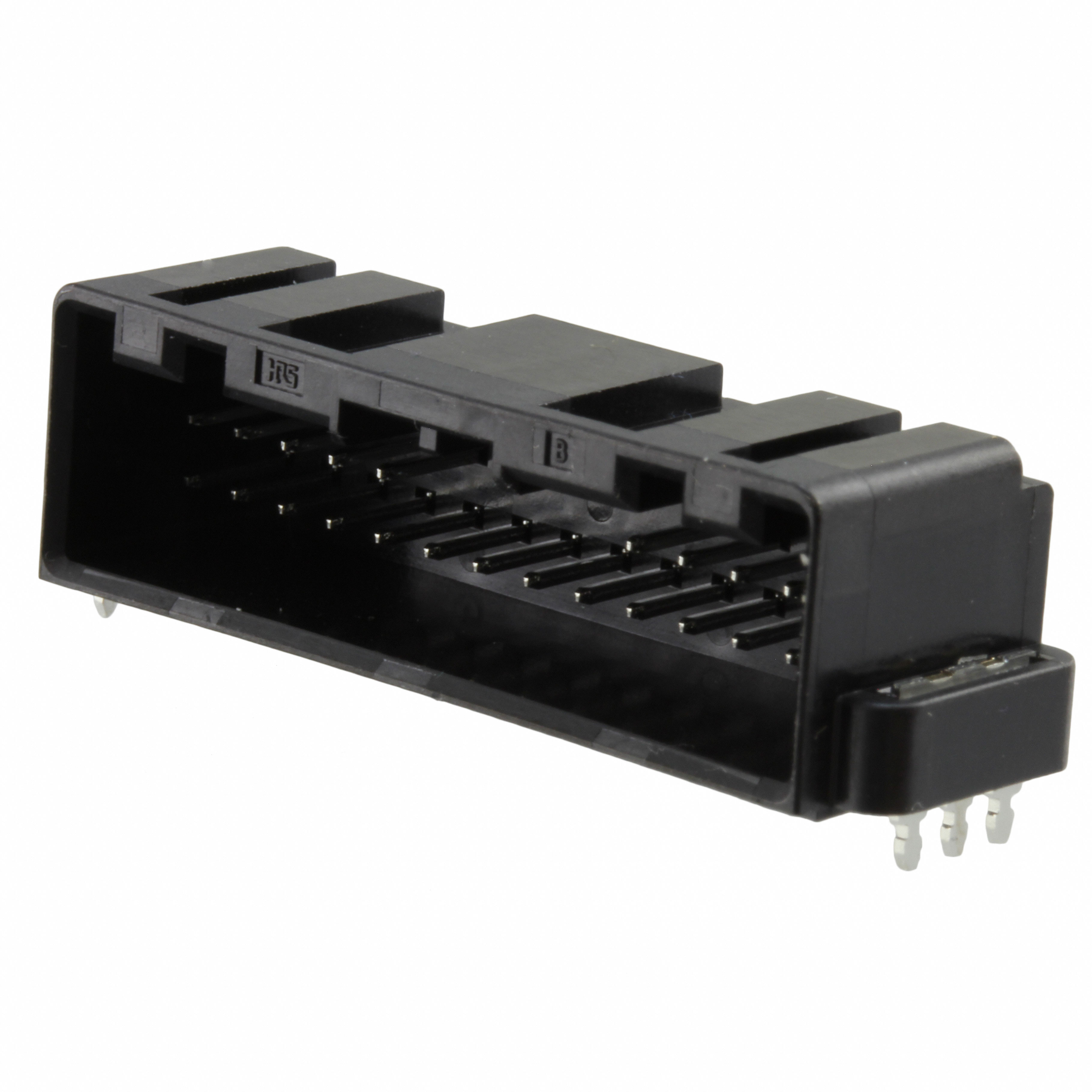

 Hirose Electric Co Ltd | Header | Male Pin | Latch Holder | Polybutylene Terephthalate (PBT) | Right Angle Surface Mount | All | Solder | 0.079 " | 2 mm | Brass | Board to Cable/Wire | 24 | Black | 2 | Shrouded - 4 Wall | Square | Board Lock | Tin | 10.23 mm | 0.403 in | ||||||||||||||
 Hirose Electric Co Ltd | Contacts Not Included | Crimp | Plug | Female Socket | -40 C | 105 ░C | Latch Lock | Polybutylene Terephthalate (PBT) | Free Hanging (In-Line) | Black | 0.079 in | 2 mm | 12 | 2 | 2 mm | 0.079 in | ||||||||||||||||||
Hirose Electric Co Ltd | Contacts Not Included | Crimp | Plug | Male Pin | -40 C | 105 ░C | 1 | Latch Holder | Polybutylene Terephthalate (PBT) | Free Hanging (In-Line) | 0.079 in | 2 mm | 2 | |||||||||||||||||||||
Hirose Electric Co Ltd |
