Low-Distortion-PIN-Attenuator
| Part | Capacitance @ Vr, F | Package / Case | Resistance @ If, F | Supplier Device Package | Diode Type | Power Dissipation (Max) [Max] | Voltage - Peak Reverse (Max) [Max] | Power Dissipation (Max) |
|---|---|---|---|---|---|---|---|---|
Microchip Technology | 2.2 pF | Axial | 1.5 Ohm | Axial | PIN - Single | 10 W | 1000 V | |
 Microchip Technology | PIN - Single | 600 V | ||||||

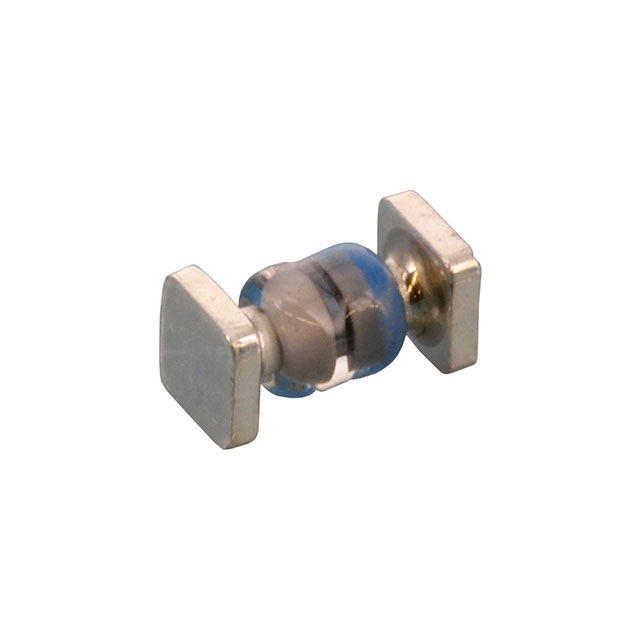

 Microchip Technology | 2.2 pF | SQ-MELF | 1.5 Ohm | PIN - Single | 15 W | 600 V | ||
Microchip Technology | 2.2 pF | Stud | 1.5 Ohm | PIN - Single | 20 W | 100 V | ||
Microchip Technology | 2.2 pF | Stud | 1.5 Ohm | PIN - Single | 15 W | 100 V | ||
Microchip Technology | 0.7 pF | SQ-MELF | 3 Ohm | PIN - Single | 1000 V | 5.5 W | ||
Microchip Technology | 2.2 pF | Axial | 1.5 Ohm | Axial | PIN - Single | 10 W | 100 V |
Key Features
• * Voltage Rating up to 1000V
• * Average Power Dissipation to 10W
• * Series Resistance as Low as 0.25O
• * Carrier Lifetime Greater than 2.5 µs
• * Low Conductance (High Rp)
• * Compatible with Automated Assembly
• * RoHS Compliant Packaging Available
Description
AI
The UM4300 and UM7300 series combine a diode chip of extremely thick intrinsic region with a low thermal resistance construction. This results in diodes uniquely applicable to very low distortion linear attenuators and specialized functions. The UM4300 series, with large cross-sectional chip area offers the highest power capability, of the two series. The UM7300 series offers lower capacitance.
