LCD1 Series

Catalog

CONN TERM RECT TONG 1/0 AWG #1/4

Part	Width - Outer Edges [y]	Width - Outer Edges [y]	Terminal Style	Tab Thickness	Tab Thickness	Wire Gauge	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Color	Mounting Type	Insulation	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Stud/Tab Size	Contact Finish	Terminal Type	Length - Overall [x]	Length - Overall [x]	Termination	Contact Material	Stud/Tab Size	Diameter - Ring ID [diameter]	Width - Outer Edges [custom]	Width - Outer Edges	Width - Outer Edges [y]

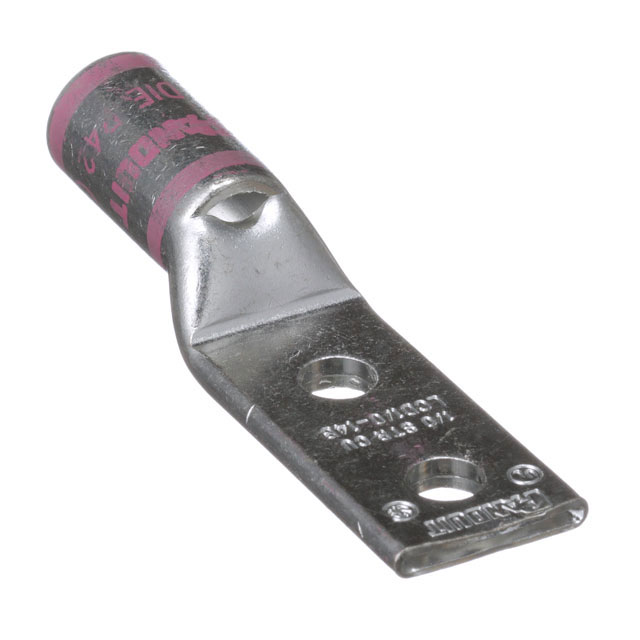

Panduit Corp LCD1/0-14B-X	19.3 mm	0.76 in	Two Stud Holes	3.05 mm	0.12 in	44 AWG	9.91 mm	0.39 "	Pink	Free Hanging (In-Line)	Non-Insulated	6.86 mm	0.27 "	0.52 in	13.21 mm	0.25 Stud	Electro-Tin	Rectangular Tongue	68.58 mm	2.7 in	Barrel Crimp	Copper
Panduit Corp LCD1/0-12F-X			Two Stud Holes	3.05 mm	0.12 in	44 AWG	9.91 mm	0.39 "	Pink	Free Hanging (In-Line) Right Angle	Non-Insulated	0.53 in		0.52 in	13.21 mm		Electro-Tin	Rectangular Tongue			Barrel Crimp	Copper	1/2 Stud	13.46 mm	0.8 in	20.32 mm

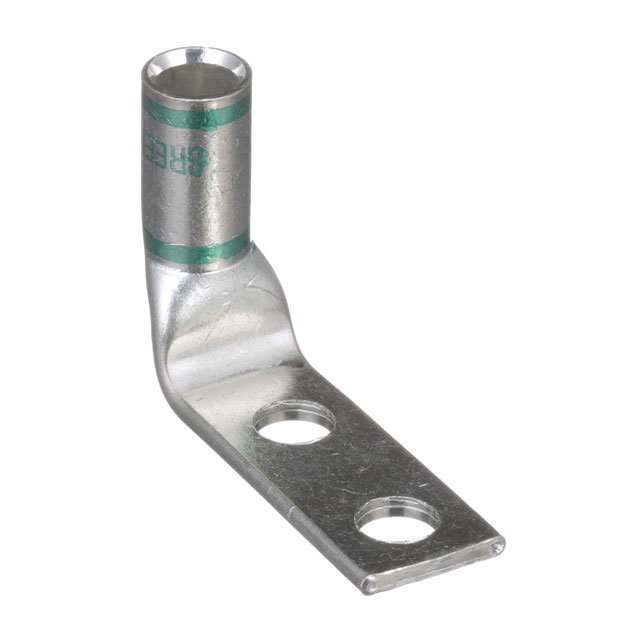

Panduit Corp LCD1-56CF-E	0.7 "		Two Stud Holes	2.79 mm	0.11 in	1 AWG	9.14 mm	0.36 in	Green	Free Hanging (In-Line) Right Angle	Non-Insulated	0.34 in		0.47 in	11.94 mm	0.3125 Stud	Electro-Tin	Rectangular Tongue			Barrel Crimp	Copper		8.64 mm			17.78 mm

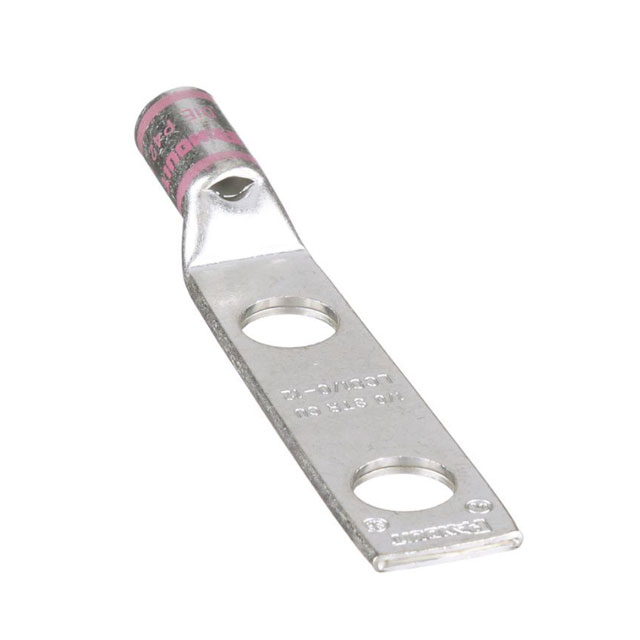

Panduit Corp LCD1/0-12-X			Two Stud Holes	3.05 mm	0.12 in	44 AWG	9.91 mm	0.39 "	Pink	Free Hanging (In-Line)	Non-Insulated	0.53 in		0.52 in	13.21 mm		Electro-Tin	Rectangular Tongue	107.95 mm	4.25 in	Barrel Crimp	Copper	1/2 Stud	13.46 mm	0.8 in	20.32 mm

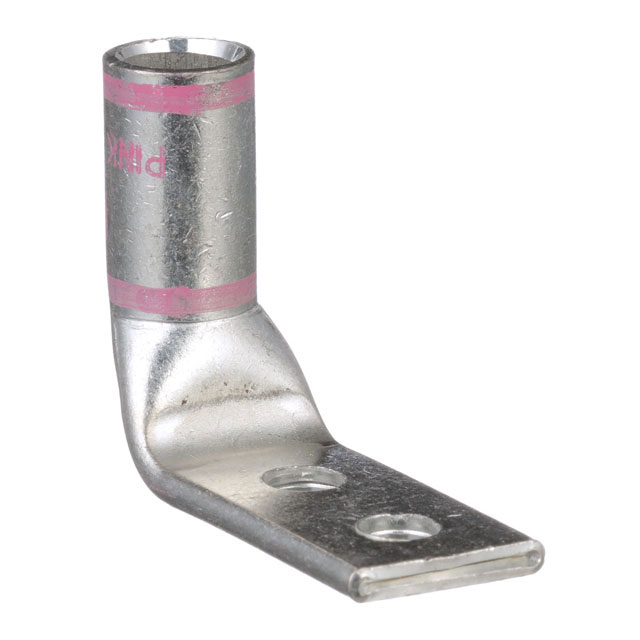

Panduit Corp LCD1/0-14BF-X	19.3 mm	0.76 in	Two Stud Holes	3.05 mm	0.12 in	44 AWG	9.91 mm	0.39 "	Pink	Free Hanging (In-Line) Right Angle	Non-Insulated	6.86 mm	0.27 "	0.52 in	13.21 mm	0.25 Stud	Electro-Tin	Rectangular Tongue			Barrel Crimp	Copper
Panduit Corp LCD1/0-56DH-X
Panduit Corp LCD1-12F-E	19.05 mm	0.75 in	Two Stud Holes	2.29 mm	0.09 in	1 AWG	9.14 mm	0.36 in	Green	Free Hanging (In-Line) Right Angle	Non-Insulated	0.53 in		0.47 in	11.94 mm		Electro-Tin	Rectangular Tongue			Barrel Crimp	Copper	1/2 Stud	13.46 mm
Panduit Corp LCD1/0-56D-X

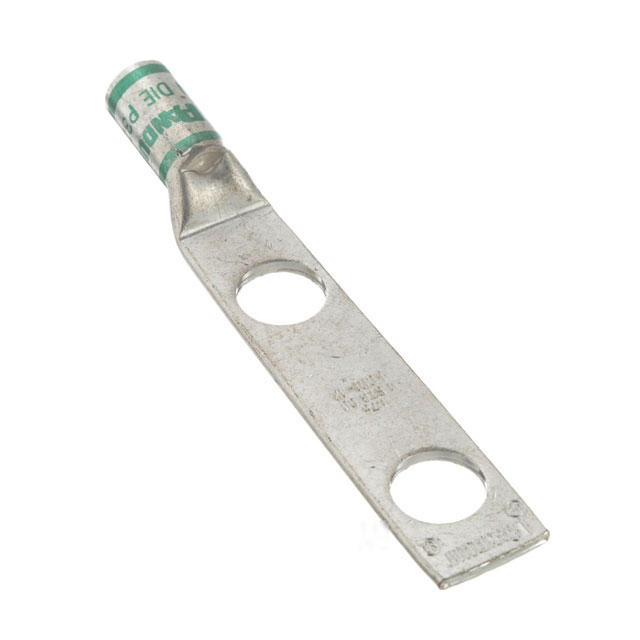

Panduit Corp LCD1-12-E	19.05 mm	0.75 in	Two Stud Holes	2.29 mm	0.09 in	1 AWG	9.14 mm	0.36 in	Green	Free Hanging (In-Line)	Non-Insulated	0.53 in		0.47 in	11.94 mm		Electro-Tin	Rectangular Tongue	105.66 mm	4.16 "	Barrel Crimp	Copper	1/2 Stud	13.46 mm

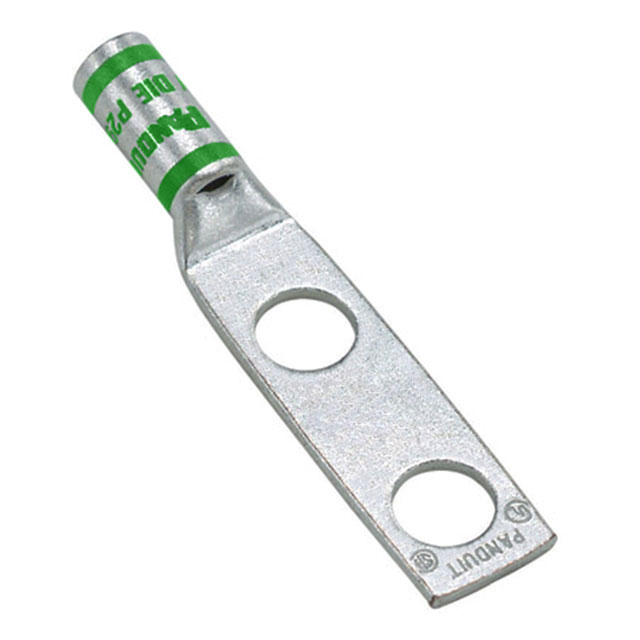

Panduit Corp LCD1-14A-E	0.7 "		Two Stud Holes	2.79 mm	0.11 in	1 AWG	9.14 mm	0.36 in	Green	Free Hanging (In-Line)	Non-Insulated	6.86 mm	0.27 "	0.47 in	11.94 mm	0.25 Stud	Electro-Tin	Grounding Lug	61.47 mm	2.42 in	Barrel Crimp	Copper					17.78 mm
