BTA40 Series

Catalog

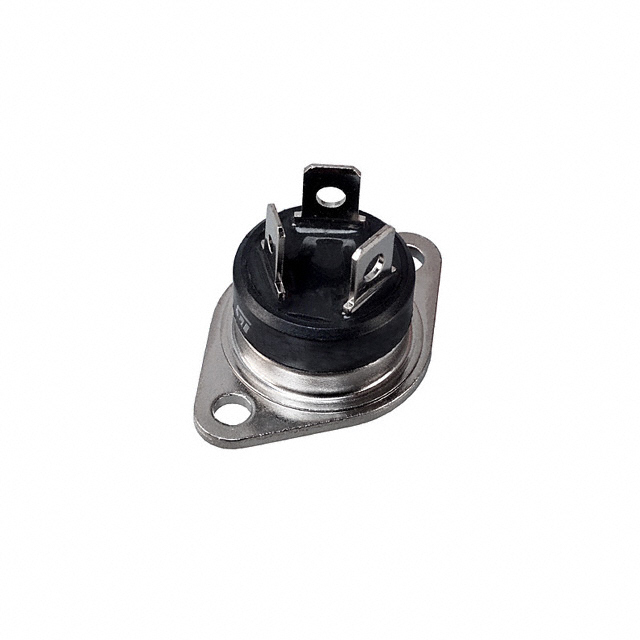

TRIAC 400V 40A RD91

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current - On State (It (RMS)) (Max)	Configuration	Current - Non Rep. Surge 50, 60Hz (Itsm)	Voltage - Gate Trigger (Vgt) (Max)	Triac Type	Supplier Device Package	Voltage - Off State	Current - Hold (Ih) (Max) [Max]	Current - Gate Trigger (Igt) (Max) [Max]	Mounting Type	Package / Case
STMicroelectronics BTA40-400B	-40 C	125 °C	40 A	Single	400 A 420 A	1.3 V	Standard	RD91	400 V	80 mA	50 mA	Chassis Mount	RD91-3 (Insulated)
STMicroelectronics BTA40-800B	-40 C	125 °C	40 A	Single	400 A 420 A	1.3 V	Standard	RD91	800 V	80 mA	50 mA	Chassis Mount	RD91-3 (Insulated)
STMicroelectronics BTA40-600B	-40 C	125 °C	40 A	Single	400 A 420 A	1.3 V	Standard	RD91	600 V	80 mA	50 mA	Chassis Mount	RD91-3 (Insulated)
