AD9102 Series
Manufacturer: Analog Devices
Beta
⌘K

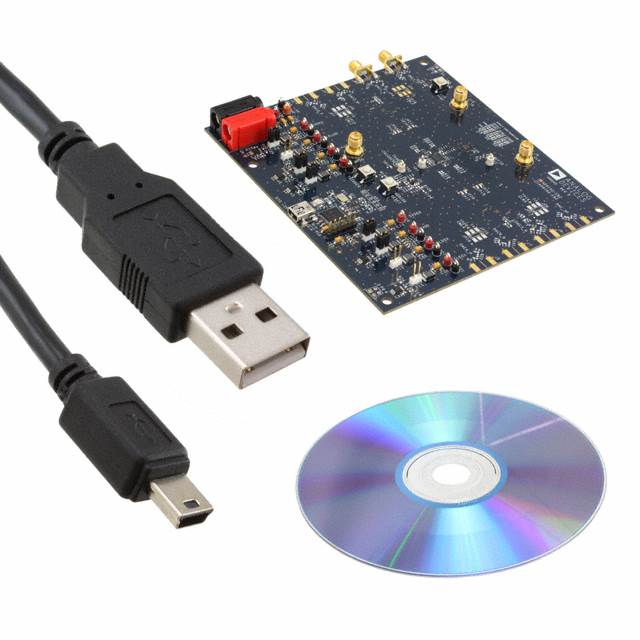

BOARD EVAL FOR AD9102
| Part | DAC Type | Supplied Contents | Data Interface | Number of Bits | Number of DAC's | Sampling Rate (Per Second) | Utilized IC / Part | Settling Time | INL/DNL (LSB) | Operating Temperature [Max] | Operating Temperature [Min] | Output Type | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Mounting Type | Differential Output | Supplier Device Package | Architecture | Reference Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices | Current | Board(s) | SPI | 14 | 1 | 180M | AD9102 | 31.2 ns | ||||||||||||||
 Analog Devices | SPI | 14 | 31.2 ns | 1.4 LSB 2 LSB | 85 °C | -40 °C | Current - Unbuffered | 3.6 V | 1.7 V | 3.6 V | 1.7 V | Surface Mount | 32-LFCSP (5x5) | Segmented DAC | External Internal | 32-WFQFN Exposed Pad CSP | ||||||
Analog Devices | SPI | 14 | 31.2 ns | 1.4 LSB 2 LSB | 85 °C | -40 °C | Current - Unbuffered | 3.6 V | 1.7 V | 3.6 V | 1.7 V | Surface Mount | 32-LFCSP (5x5) | Segmented DAC | External Internal | 32-WFQFN Exposed Pad CSP |
