2SA1943 Series

PNP Epitaxial Silicon Transistor

Catalog

PNP Epitaxial Silicon Transistor

Part	Package / Case	Transistor Type	Current - Collector (Ic) (Max) [Max]	Frequency - Transition	Vce Saturation (Max) @ Ib, Ic	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Mounting Type	Current - Collector Cutoff (Max) [Max]	Voltage - Collector Emitter Breakdown (Max)	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Power - Max [Max]

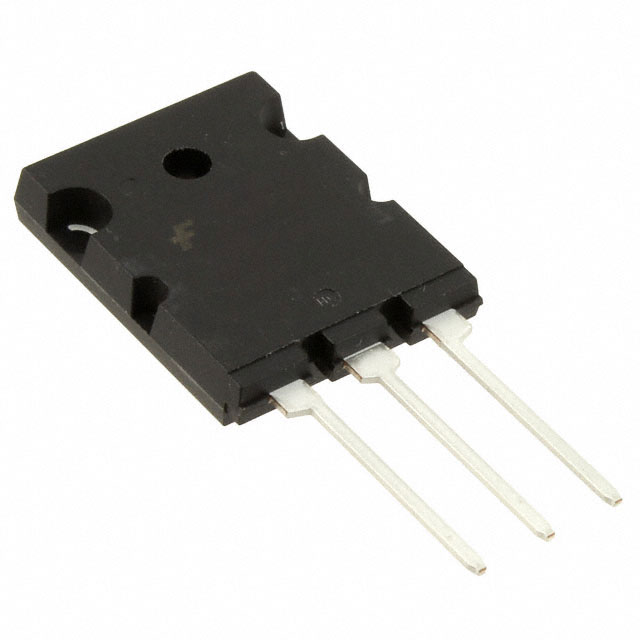

ON Semiconductor 2SA1943RTU	TO-264-3 TO-264AA	PNP	17 A	30 MHz	3 V	150 °C	-50 °C	HPM F2	Through Hole	5 µA	250 V	55	150 W

PNP Epitaxial Silicon Transistor

• High Current Capability: IC = -15 A

• High Power Dissipation : 150 watts

• High Frequency : 30 MHz

• High Voltage : VCEO= -250 V

• Wide S.O.A for reliable operation

• Excellent Gain Linearity for low THD

• Complement to 2SC5200/FJL4315

• Full thermal and electrical Spice models are available
