ATA6560 Series

High-speed CAN FD Transceiver with Standby- and Silent Mode

Catalog

High-speed CAN FD Transceiver with Standby- and Silent Mode

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Duplex	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Receiver Hysteresis	Qualification	Type	Supplier Device Package	Data Rate	Grade	Protocol	Package / Case [y]	Package / Case [x]	Contents	Utilized IC / Part	Supplied Contents
Microchip Technology ATA6560-GBQW-VAO	4.5 V	5.5 V	Half	8-VDFN Exposed Pad	150 °C	-40 °C	Surface Mount Wettable Flank	120 mV	AEC-Q100	Transceiver	8-VDFN (3x3)	5 MBd	Automotive	CANbus
Microchip Technology ATA6560-GAQW	4.5 V	5.5 V		8-SOIC			Surface Mount	120 mV	AEC-Q100	Transceiver	8-SO		Automotive	CANbus	3.9 mm	0.154 in
Microchip Technology ATA6560-GBQW	4.5 V	5.5 V		8-VDFN Exposed Pad			Surface Mount Wettable Flank	120 mV	AEC-Q100	Transceiver	8-VDFN (3x3)		Automotive	CANbus
Microchip Technology ATA6560-GAQW-VAO	4.5 V	5.5 V	Half	8-SOIC	150 °C	-40 °C	Surface Mount	120 mV	AEC-Q100	Transceiver	8-SO	5 MBd	Automotive	CANbus	3.9 mm	0.154 in

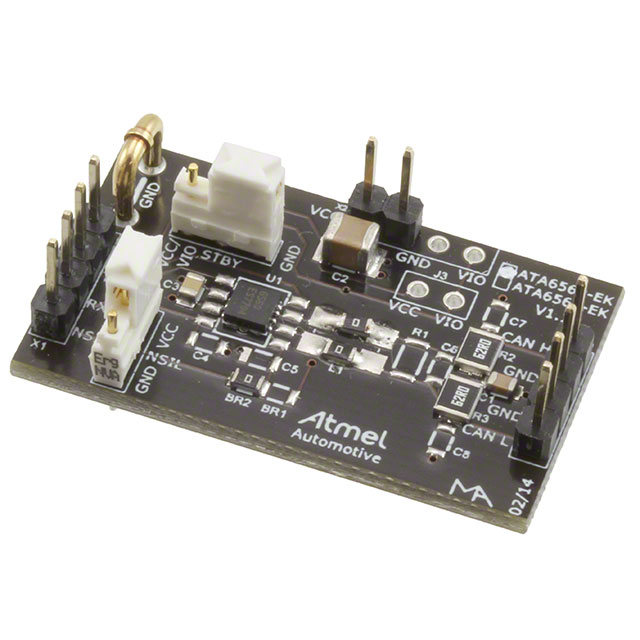

Microchip Technology ATA6560-EK										Interface							Board(s)	ATA6560	Board(s)

Catalog

High-speed CAN FD Transceiver with Standby- and Silent Mode

Key Features

• * Fully ISO 11898-2,-5, SAE J2284 compliant

• * CAN FD ready

• * Communication speed up to 5Mbit/s

• * Low electromagnetic emission (EME) and high electromagnetic immunity (EMI)

• * Differential receiver with wide common mode range

• * Silent mode (receive only)

• * Remote wake-up capability via CAN bus

• * Functional behavior predictable under all supply conditions

• * Transceiver disengages from the bus when not powered up

• * RXD recessive clamping detection

• * High electrostatic discharge (ESD) handling capability on the bus pins

• * Bus pins protected against transients in automotive environments

• * Transmit data (TXD) dominant time-out function

• * Undervoltage detection on VCC

• * CANH/CANL short-circuit and overtemperature protected

• * AEC-Q100 and AEC-Q006 qualified

• * Packages: SOIC8, VDFN8 with wettable flanks (Moisture Sensitivity Level 1)

Description

The Microchip ATA6560 is a high-speed CAN FD ready CAN transceiver that provides an interface between a controller area network (CAN) protocol controller and the physical two-wire CAN bus. The transceiver is designed for high-speed (up to 5Mbit/s) CAN applications in the automotive industry, providing differential transmit and receive capability to (a microcontroller with) a CAN protocol controller. It offers improved electromagnetic compatibility (EMC) and electrostatic discharge (ESD) performance, as well as features such as: Ideal passive behavior to the CAN bus when the supply voltage is off. Three operating modes (Standby, Normal and Silent Mode) together with the dedicated fail-safe features make the Microchip ATA6560 an excellent choice for all types of high- speed CAN networks, especially in nodes requiring low-power mode with wake-up capability via the CAN bus. To purchase the ATA6560 or obtain additional information, please contact any Microchip sales representative or authorized worldwide distributor.
