01761 Series

Catalog

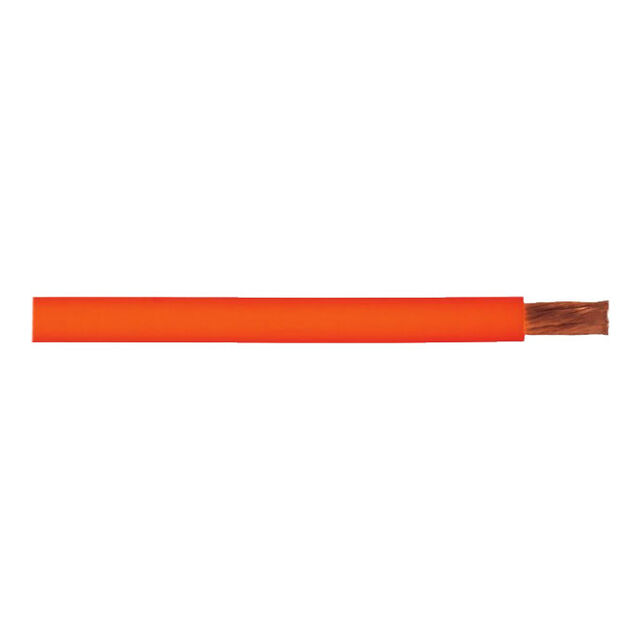

WELD CABLE 4/0AWG 600V ORANGE

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Jacket Color	Cable Type	Operating Temperature [Max]	Operating Temperature [Min]	Wire Gauge	Voltage	Length	Length	Conductor Strand [custom]	Conductor Strand [custom]	Ratings	Conductor Material
Prysmian Group 01761.44.04	0.8 in	20.32 mm	Super Vu-Tron®	Orange	Welding	90 °C	-50 °C	4 aught AWG	600 V	2500 ft	762 m	34 AWG	5225	ASTM B-172 Class M	Copper Annealed Bare
Prysmian Group 01761.44.04	0.8 in	20.32 mm	Super Vu-Tron®	Orange	Welding	90 °C	-50 °C	4 aught AWG	600 V	2500 ft	762 m	34 AWG	5225	ASTM B-172 Class M	Copper Annealed Bare
Prysmian Group 01761.41.04	0.8 in	20.32 mm	Super Vu-Tron®	Orange	Welding	90 °C	-50 °C	4 aught AWG	600 V	1000 ft	304.8 m	34 AWG	5225	ASTM B-172 Class M	Copper Annealed Bare
Prysmian Group 01761.44.01	0.8 in	20.32 mm	Super Vu-Tron®	Black	Welding	90 °C	-50 °C	4 aught AWG	600 V	2500 ft	762 m	34 AWG	5225	ASTM B-172 Class M	Copper Annealed Bare
Prysmian Group 01761.35.04	0.8 in	20.32 mm	Super Vu-Tron®	Orange	Welding	90 °C	-50 °C	4 aught AWG	600 V	250 ft	76.2 m	34 AWG	5225	ASTM B-172 Class M	Copper Annealed Bare
Prysmian Group 01761.41.01	0.8 in	20.32 mm	Super Vu-Tron®	Black	Welding	90 °C	-50 °C	4 aught AWG	600 V	1000 ft	304.8 m	34 AWG	5225	ASTM B-172 Class M	Copper Annealed Bare
Prysmian Group 01761.99.04	0.8 in	20.32 mm	Super Vu-Tron®	Orange	Welding	90 °C	-50 °C	4 aught AWG	600 V			34 AWG	5225	ASTM B-172 Class M	Copper Annealed Bare
Prysmian Group 01761.35.04	0.8 in	20.32 mm	Super Vu-Tron®	Orange	Welding	90 °C	-50 °C	4 aught AWG	600 V	250 ft	76.2 m	34 AWG	5225	ASTM B-172 Class M	Copper Annealed Bare
Prysmian Group 01761.35.01	0.8 in	20.32 mm	Super Vu-Tron®	Black	Welding	90 °C	-50 °C	4 aught AWG	600 V	250 ft	76.2 m	34 AWG	5225	ASTM B-172 Class M	Copper Annealed Bare
Prysmian Group 01761.38.01	0.8 in	20.32 mm	Super Vu-Tron®	Black	Welding	90 °C	-50 °C	4 aught AWG	600 V	500 ft	152.4 m	34 AWG	5225	ASTM B-172 Class M	Copper Annealed Bare
