PJS008 Series
Manufacturer: Yamaichi Electronics
Beta
⌘K
CONN MICRO SD CARD R/A SMD
| Part | Connector Type | Height Above Board [z] | Height Above Board [z] | Contact Finish | Mounting Type | Number of Positions | Features | Insertion, Removal Method | Card Type | Mounting Feature | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

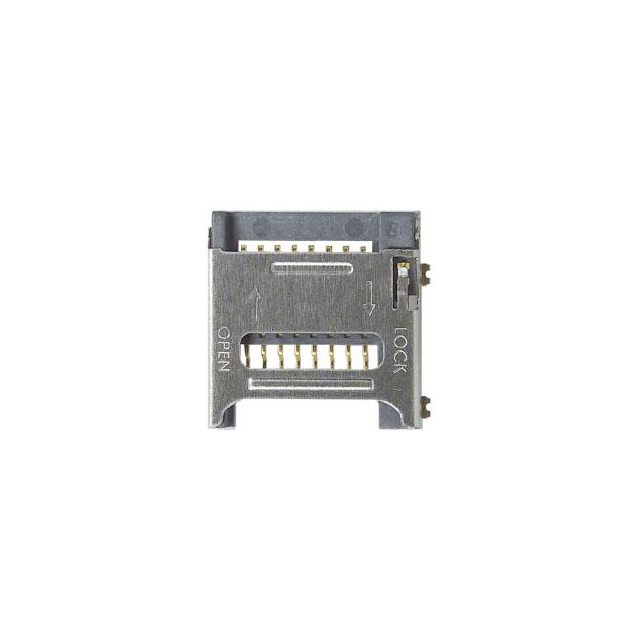

 Yamaichi Electronics | Connector and Ejector | 0.073 " | 1.85 mm | Gold-Nickel | Right Angle Surface Mount | 9 | Switch | Push In Push Out | Secure Digital - microSD™ | Reverse - Bottom | ||

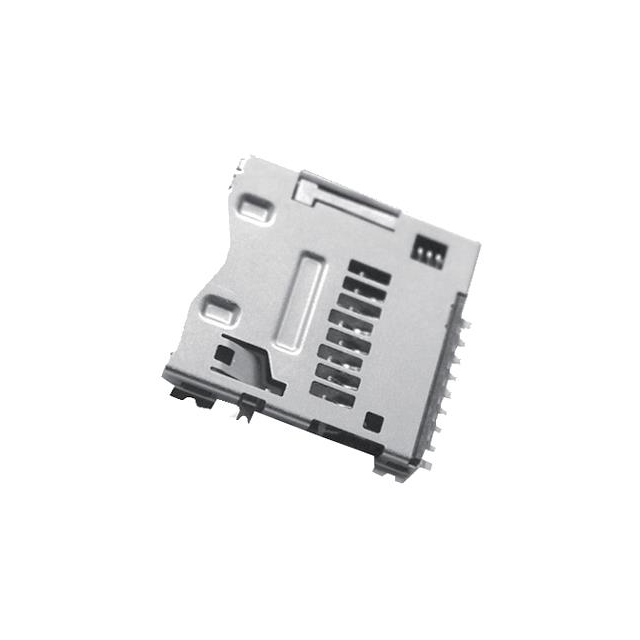

 Yamaichi Electronics | Connector and Ejector | 0.122 in | 3.1 mm | Gold-Nickel | Right Angle Surface Mount | 8 | Switch | Push In Push Out | Secure Digital - microSD™ | Normal Standard - Top | ||

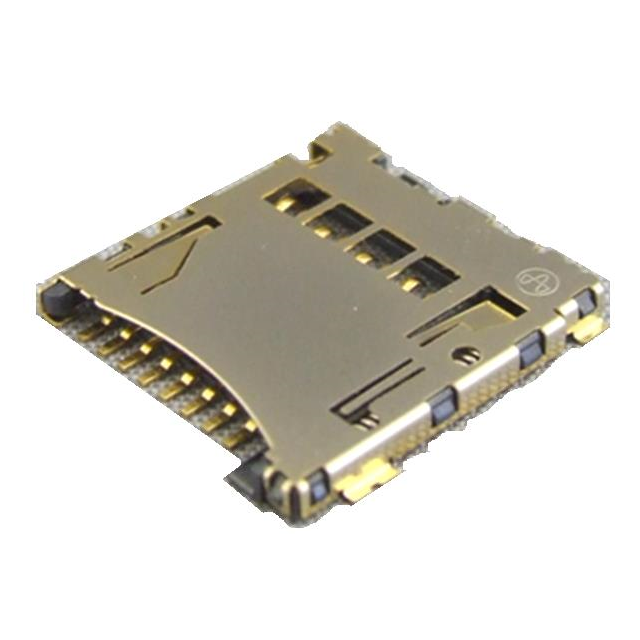

 Yamaichi Electronics | Connector and Ejector | 0.059 in | 1.5 mm | Gold-Nickel | Right Angle Surface Mount | 9 | Switch | Push In Push Out | Secure Digital - microSD™ | Normal Standard - Top | ||

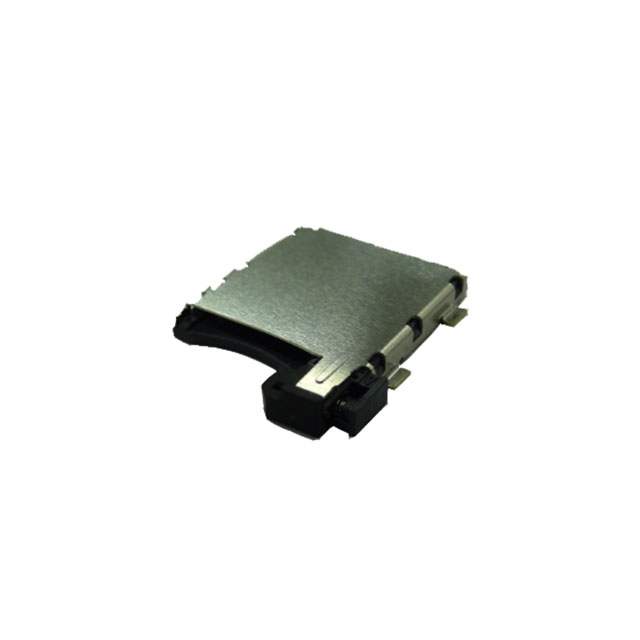

 Yamaichi Electronics | Connector and Ejector | 0.069 in | 1.75 mm | Gold-Nickel | Surface Mount | 8 | Push In Push Out | Secure Digital - microSD™ | Normal Standard - Top | 50 µin | 1.27 µm |
