Product families from Yamaichi Electronics
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
Parts that are not part of a series
© Zenode. All rights reserved.
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
| Pluggable Connector Assemblies | 1 | Active | ||
| Pluggable Connector Assemblies | 1 | Active | ||
| Pluggable Connectors | 1 | Active | ||
| FFC, FPC (Flat Flexible) Connector Assemblies | 1 | Active | ||
| Card Edge Connectors | 1 | Active | ||
| Memory Connectors | 1 | Active | ||
| Memory Connectors | 2 | Active | ||
| Connectors, Interconnects | 1 | Active | ||
| Memory Connectors | 1 | Active | ||
| Coaxial Connector (RF) Assemblies | 1 | Active |
Parts from Yamaichi Electronics that are not part of a series
| Part Information | Pricing (lowest) | Material - Insulation | Termination | Contact Material | Pitch | Mounting Type | Gender | Contact Finish | Contact Finish Thickness | Number of Rows | Color | Features | Number of Positions | Card Thickness | Card Type | Operating Temperature (Max) | Operating Temperature (Min) | Read Out | Connector Type | Connector Style | Connector Pin Configuration (Columns) | Connector Pin Configuration (Rows) | Connector/Contact Type | Cable End Type | Height Above Board | Voltage Rating | Flat Flex Type | FFC, FCB Thickness | Locking Feature | Housing Material | Actuator Color | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

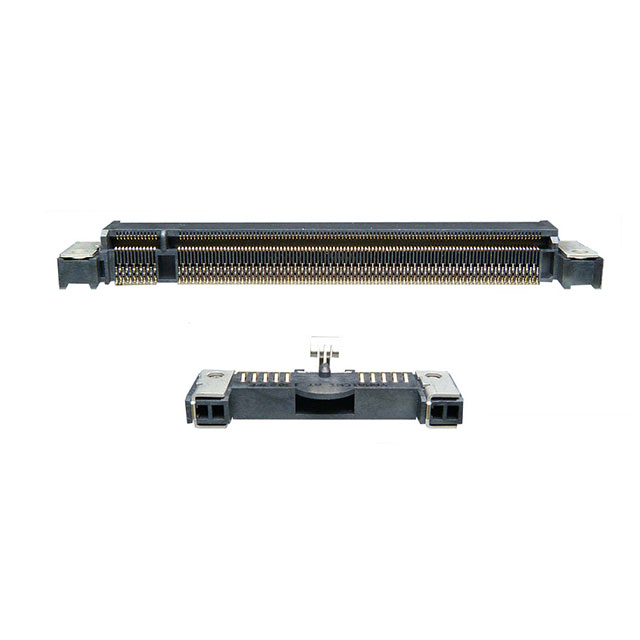

 Yamaichi Electronics CONN EDGE DUAL FML 230POS 0.020 | Sign in to see pricing | LCP, Liquid Crystal Polymer | Solder | Copper Alloy | 0.02 in | Right Angle, Surface Mount | Female | Gold | 30 µin | 2 | Black | Board Guide, Solder Retention | 230 | 0.047 in | Dual Edge, Non Specified | 80 °C | -40 °C | Dual | — | — | — | — | — | — | — | — | — | — | — | — | — | — |
 Yamaichi Electronics CONN EDGE SGL FMALE 10POS 0.059 | Sign in to see pricing | LCP, Liquid Crystal Polymer | Solder | Copper Alloy | 0.059 in | Right Angle, Surface Mount | Female | Gold | 30 µin | 1 | Black | Board Guide, Solder Retention | 10 | 0.047 in | Non Specified, Single Edge | 80 °C | -40 °C | Dual | — | — | — | — | — | — | — | — | — | — | — | — | — | — |
 Yamaichi Electronics SFP28 HOST CONNECTOR 28/56GBPS | Sign in to see pricing | — | Solder | — | — | Right Angle, Surface Mount | — | Gold-Nickel | 30 µin | — | — | Board Guide | 20 | — | — | — | — | — | SFP | Receptacle | — | — | — | — | — | — | — | — | — | — | — | — |
 Yamaichi Electronics QSFP56 STYLE A HOST CONNECTOR, | Sign in to see pricing | — | Solder | — | — | Right Angle, Surface Mount | — | Gold-Nickel | 30 µin | — | — | Board Guide | 38 | — | — | — | — | — | QSFP | Receptacle | — | — | — | — | — | — | — | — | — | — | — | — |

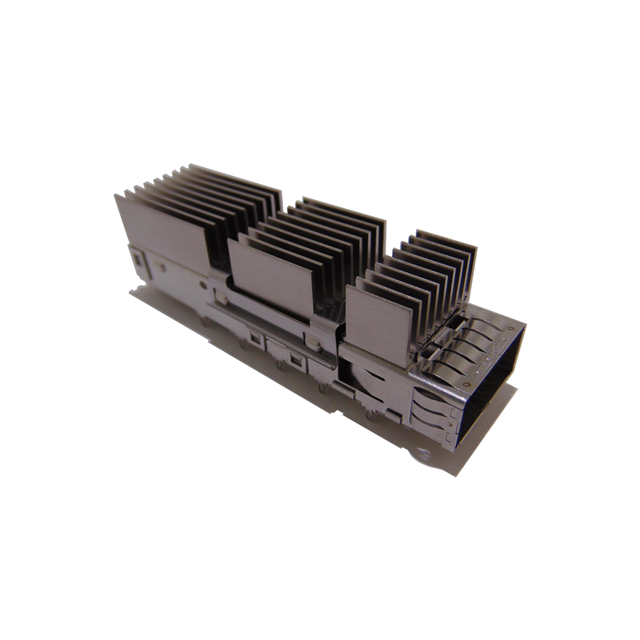

 Yamaichi Electronics QSFP-DD CAGE ASSY: 1X1 CAGE, F-B | Sign in to see pricing | — | Press-Fit | — | — | Right Angle, Through Hole | — | — | — | — | — | EMI Shielded | — | — | — | — | — | — | QSFP-DD (Double Density) | Cage with Heat Sink | — | — | — | — | — | — | — | — | — | — | — | — |

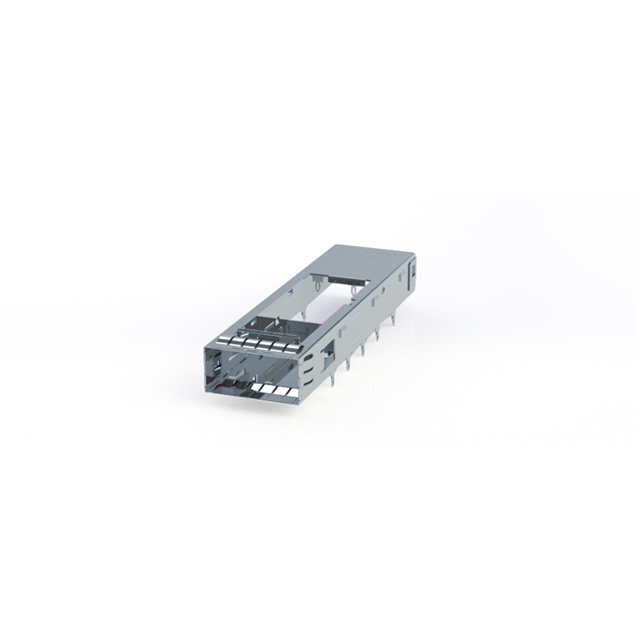

 Yamaichi Electronics QSFP-DD 1X1 HOST CAGE WITH SIDE | Sign in to see pricing | — | Press-Fit | — | — | Right Angle, Through Hole | — | — | — | — | — | EMI Shielded | — | — | — | — | — | — | QSFP-DD (Double Density) | Cage | — | — | — | — | — | — | — | — | — | — | — | — |

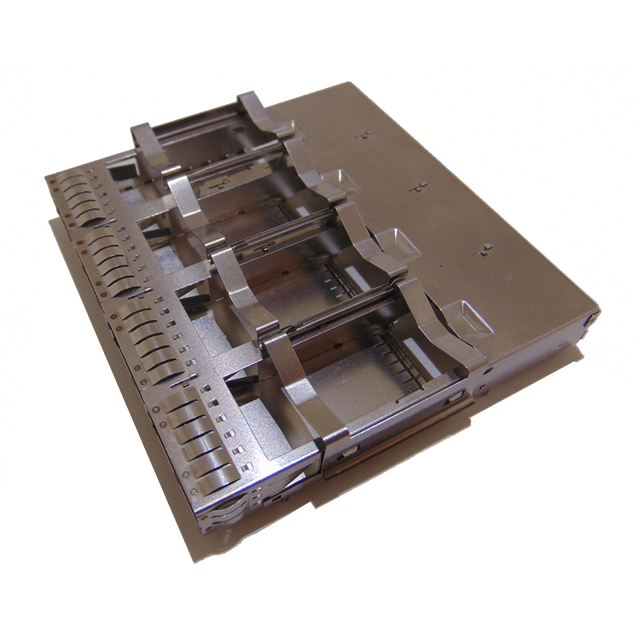

 Yamaichi Electronics QSFP-DD 1X4 HOST CAGE WITH SIDE | Sign in to see pricing | — | Press-Fit | — | — | Right Angle, Through Hole | — | — | — | — | — | EMI Shielded | — | — | — | — | — | — | QSFP-DD (Double Density) | Cage, Ganged | 4 pins | 1 pins | — | — | — | — | — | — | — | — | — | — |

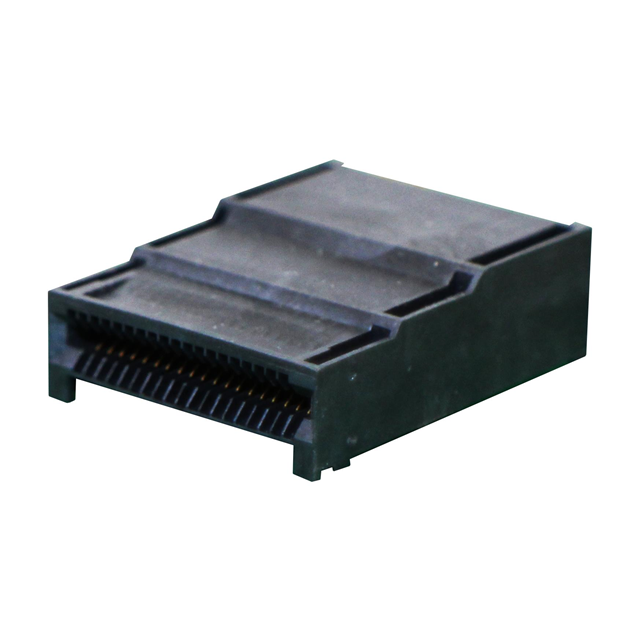

 Yamaichi Electronics QSFP-DD 1X1 HOST CONNECTOR, SMT | Sign in to see pricing | — | Solder | — | — | Right Angle, Surface Mount | — | Gold-Nickel | — | — | — | Board Guide | 76 | — | — | — | — | — | QSFP-DD (Double Density) | Receptacle | — | — | — | — | — | — | — | — | — | — | — | — |

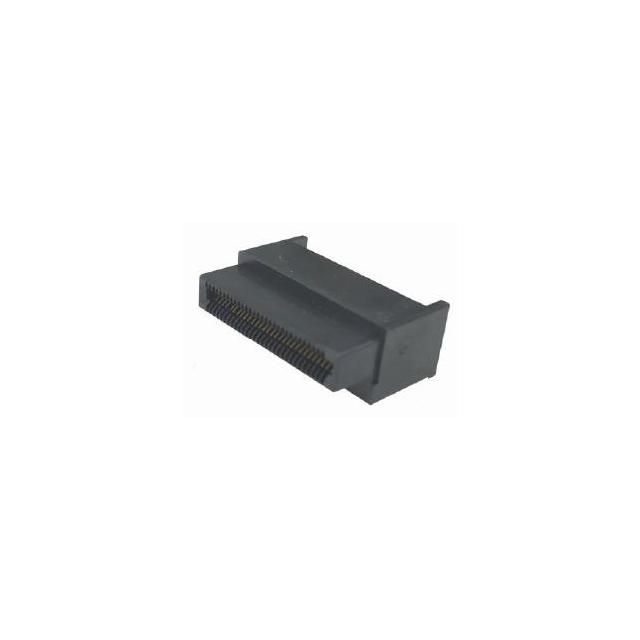

 Yamaichi Electronics OSFP HOST CONNECTOR, WITH SOLDER | Sign in to see pricing | — | Solder | — | — | Right Angle, Surface Mount | — | Gold-Nickel | — | — | — | Board Guide | 60 | — | — | — | — | — | OSFP | Receptacle | — | — | — | — | — | — | — | — | — | — | — | — |
 Yamaichi Electronics CONN FFC BOTTOM 24POS 0.5MM PCB | Sign in to see pricing | — | Solder | Copper Alloy | 0.02 in | Through Hole | — | Gold-Nickel | — | — | — | Center Lock Latch, EMI Shielded, Solder Retention | 24 pos | — | — | 80 °C | -20 °C | — | — | — | — | — | Bottom, Contacts | Straight | 0.205 in | 50 V | FFC, FPC | 0.3 mm | Center Lock | LCP, Liquid Crystal Polymer | Black | Black |
