E2052S Series

Catalog

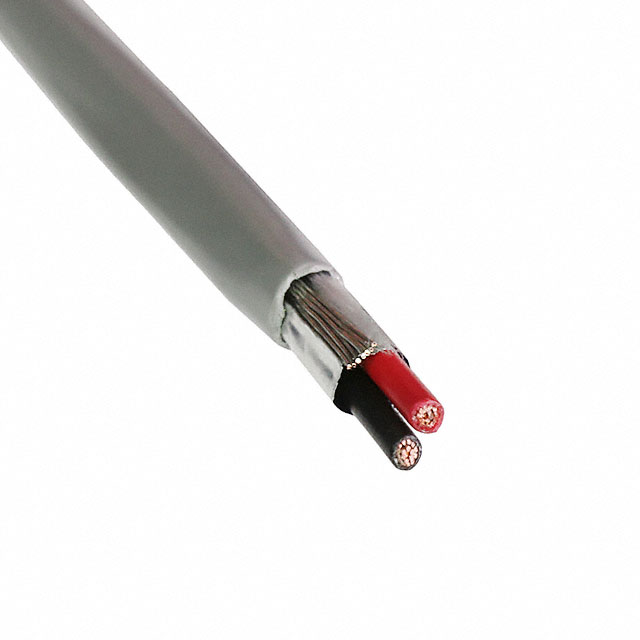

CABLE 2COND 14AWG GRAY SHLD 100'

Part	Jacket (Insulation) Thickness [x]	Jacket (Insulation) Thickness [x]	Conductor Material	Length	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Jacket Color	Features	Shield Material	Shield Coverage	Cable Type	Number of Conductors	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Wire Gauge	Jacket (Insulation) Material	Shield Type	Usage
Prysmian Group E2052S.41.10	0.381 mm	0.015 in	Copper Bare	15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft	0.245 "	6.22 mm	Poly-Vinyl Chloride (PVC)	Gray	Drain Wire	Flexfoil®	100 %	Multi-Conductor	2	100 ft	30.5 m	19	0.0147 in	300 VDC	14.5 AWG	Poly-Vinyl Chloride (PVC)	Foil	Alarm Security Sound
Prysmian Group E2052S.41.03	0.381 mm	0.015 in	Copper Bare	304.8 m	1000 ft	0.245 "	6.22 mm	Poly-Vinyl Chloride (PVC)	Red	Drain Wire			Multi-Conductor	2			19	0.0147 in	300 VDC	14.5 AWG	Poly-Vinyl Chloride (PVC) Riser	Foil
Prysmian Group E2052S.41.10	0.381 mm	0.015 in	Copper Bare	15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft	0.245 "	6.22 mm	Poly-Vinyl Chloride (PVC)	Gray	Drain Wire			Multi-Conductor	2	100 ft	30.5 m	19	0.0147 in	300 VDC	14.5 AWG	Poly-Vinyl Chloride (PVC)	Foil	Alarm Security Sound
Prysmian Group E2052S.30.10	0.381 mm	0.015 in	Copper Bare	304.8 m	1000 ft	0.245 "	6.22 mm	Poly-Vinyl Chloride (PVC)	Gray	Drain Wire			Multi-Conductor	2			19	0.0147 in	300 VDC	14.5 AWG	Poly-Vinyl Chloride (PVC)	Foil	Alarm Security Sound
Prysmian Group E2052S.30.10	0.381 mm	0.015 in	Copper Bare	304.8 m	1000 ft	0.245 "	6.22 mm	Poly-Vinyl Chloride (PVC)	Gray	Drain Wire	Flexfoil®	100 %	Multi-Conductor	2	100 ft	30.5 m	19	0.0147 in	300 VDC	14.5 AWG	Poly-Vinyl Chloride (PVC)	Foil	Alarm Security Sound
Prysmian Group E2052S.41.03	0.381 mm	0.015 in	Copper Bare	304.8 m	1000 ft	0.245 "	6.22 mm	Poly-Vinyl Chloride (PVC)	Red	Drain Wire	Flexfoil®	100 %	Multi-Conductor	2			19	0.0147 in	300 VDC	14.5 AWG	Poly-Vinyl Chloride (PVC) Riser	Foil
