LDLN025 Series

Catalog

IC REG LINEAR 3V 250MA 4FLIPCHIP

Part	Package / Case	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Protection Features	Number of Regulators	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package	Voltage Dropout (Max)	Current - Output	Voltage - Input (Max) [Max]	Control Features	Current - Quiescent (Iq)	Voltage - Output (Min/Fixed)	PSRR [Max]	PSRR [Min]	Current - Supply (Max) [Max]	Voltage - Output (Min/Fixed) [Min]
STMicroelectronics LDLN025J30R	4-XFBGA FCBGA	Surface Mount	-40 C	125 °C	Positive	Over Current Over Temperature Short Circuit Soft Start	1	0.63	0.63	4-FlipChip	0.2 V	250 mA	5.5 V	Enable	25 µA	3 V	80 dB	60 dB	425 µA

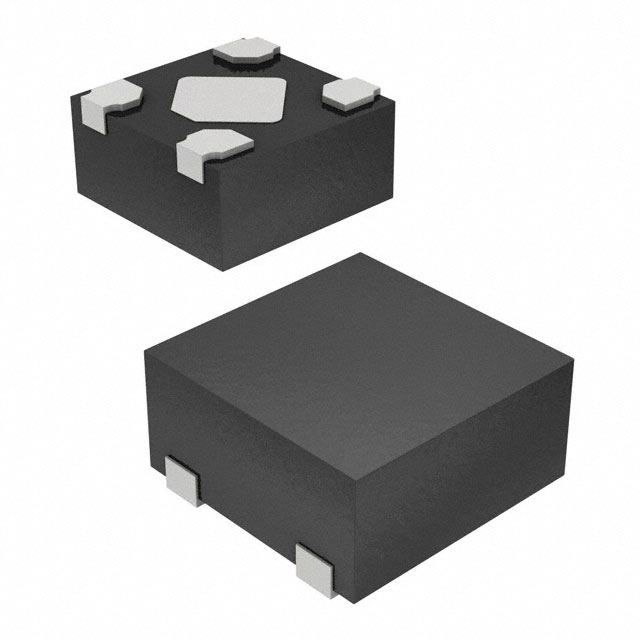

STMicroelectronics LDLN025PU25R	4-XDFN Exposed Pad	Surface Mount	-40 C	125 °C	Positive	Over Current Over Temperature Short Circuit Soft Start	1			4-DFN (1x1)	0.25 V	250 mA	5.5 V	Enable	25 µA	2.5 V	80 dB	60 dB	425 µA
STMicroelectronics LDLN025J18R	4-XFBGA FCBGA	Surface Mount	-40 C	125 °C	Positive	Over Current Over Temperature Short Circuit Soft Start	1			4-FlipChip	0.2 V	250 mA	5.5 V	Enable	25 µA	1.8 V	80 dB	60 dB	425 µA
STMicroelectronics LDLN025J29R	4-XFBGA FCBGA	Surface Mount	-40 C	125 °C	Positive	Over Current Over Temperature Short Circuit Soft Start	1	0.63	0.63	4-FlipChip	0.2 V	250 mA	5.5 V	Enable	25 µA		80 dB	60 dB	425 µA	2.9 V
STMicroelectronics LDLN025J32R	4-XFBGA FCBGA	Surface Mount	-40 C	125 °C	Positive	Over Current Over Temperature Short Circuit Soft Start	1			4-FlipChip	0.2 V	250 mA	5.5 V	Enable	25 µA	3.2 V	80 dB	60 dB	425 µA
STMicroelectronics LDLN025PU275R	4-XFBGA	Surface Mount	-40 C	125 °C	Positive	Over Current Over Temperature Short Circuit Soft Start	1			4-FlipChip	0.25 V	250 mA	5.5 V	Enable	25 µA	2.75 V	80 dB	60 dB	425 µA
STMicroelectronics LDLN025J25R	4-XFBGA FCBGA	Surface Mount	-40 C	125 °C	Positive	Over Current Over Temperature Short Circuit Soft Start	1			4-FlipChip	0.2 V	250 mA	5.5 V	Enable	25 µA	2.5 V	80 dB	60 dB	425 µA
STMicroelectronics LDLN025PU12R	4-XDFN Exposed Pad	Surface Mount	-40 C	125 °C	Positive	Over Current Over Temperature Short Circuit Soft Start	1			4-DFN (1x1)	0.25 V	250 mA	5.5 V	Enable	25 µA	1.2 V	80 dB	60 dB	425 µA
STMicroelectronics LDLN025PU30R	4-XDFN Exposed Pad	Surface Mount	-40 C	125 °C	Positive	Over Current Over Temperature Short Circuit Soft Start	1			4-DFN (1x1)	0.25 V	250 mA	5.5 V	Enable	25 µA	3 V	80 dB	60 dB	425 µA
STMicroelectronics LDLN025J33R	4-XFBGA FCBGA	Surface Mount	-40 C	125 °C	Positive	Over Current Over Temperature Short Circuit Soft Start	1			4-FlipChip	0.2 V	250 mA	5.5 V	Enable	25 µA	3.3 V	80 dB	60 dB	425 µA
