Ksc30 Series Series

Sealed Tact Switch for SMT

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Sealed Tact Switch for SMT

Part	Operating Temperature [Max]	Operating Temperature [Min]	Illumination	Actuator Orientation	Contact Rating @ Voltage	Switch Travel	Mounting Type	Circuit	Outline [y]	Outline [x]	Ingress Protection	Switch Function	Actuator Type	Operating Force	Termination Style	Actuator Height off PCB, Vertical	Mechanical Life
Littelfuse/Commercial Vehicle Products KSC341GLFS	85 °C	-40 °C	Non-Illuminated	Top Actuated	0.05 A	0.2 mm	Surface Mount	SPST-NO	6.2 mm	6.2 mm	IP67 - Dust Tight Waterproof	Off-Mom	Standard	300 gf	Gull Wing	3.5 mm	300000 Cycles
Littelfuse/Commercial Vehicle Products KSC351G	85 °C	-40 °C	Non-Illuminated	Top Actuated	0.05 A	0.25 mm	Surface Mount	SPST-NO	6.2 mm	6.2 mm	IP67 - Dust Tight Waterproof	Off-Mom	Standard	0.5 kgf	Gull Wing	3.5 mm	100000 Cycles
Littelfuse/Commercial Vehicle Products KSC343GLFG	125 °C	-40 °C	Non-Illuminated	Top Actuated	0.01 A 32 VDC	0.2 mm	Surface Mount	SPST-NO	6.2 mm	6.2 mm	IP67 - Dust Tight Waterproof	Off-Mom	Standard	300 gf	Gull Wing	3.5 mm	300000 Cycles
Littelfuse/Commercial Vehicle Products KSC341G	85 °C	-40 °C	Non-Illuminated	Top Actuated	0.05 A	0.2 mm	Surface Mount	SPST-NO	6.2 mm	6.2 mm	IP67 - Dust Tight Waterproof	Off-Mom	Standard	300 gf	Gull Wing	3.5 mm	300000 Cycles
Littelfuse/Commercial Vehicle Products KSC353GLFG	125 °C	-40 °C	Non-Illuminated	Top Actuated	0.01 A 32 VDC	0.25 mm	Surface Mount	SPST-NO	6.2 mm	6.2 mm	IP67 - Dust Tight Waterproof	Off-Mom	Standard	0.5 kgf	Gull Wing	3.5 mm	100000 Cycles
Littelfuse/Commercial Vehicle Products KSC321GLFS	85 °C	-40 °C	Non-Illuminated	Top Actuated	0.05 A	0.2 mm	Surface Mount	SPST-NO	6.2 mm	6.2 mm	IP67 - Dust Tight Waterproof	Off-Mom	Standard	200 gf	Gull Wing	3.5 mm	300000 Cycles
Littelfuse/Commercial Vehicle Products KSC343G	125 °C	-40 °C	Non-Illuminated	Top Actuated	0.01 A 32 VDC	0.2 mm	Surface Mount	SPST-NO	6.2 mm	6.2 mm	IP67 - Dust Tight Waterproof	Off-Mom	Standard	300 gf	Gull Wing	3.5 mm	300000 Cycles

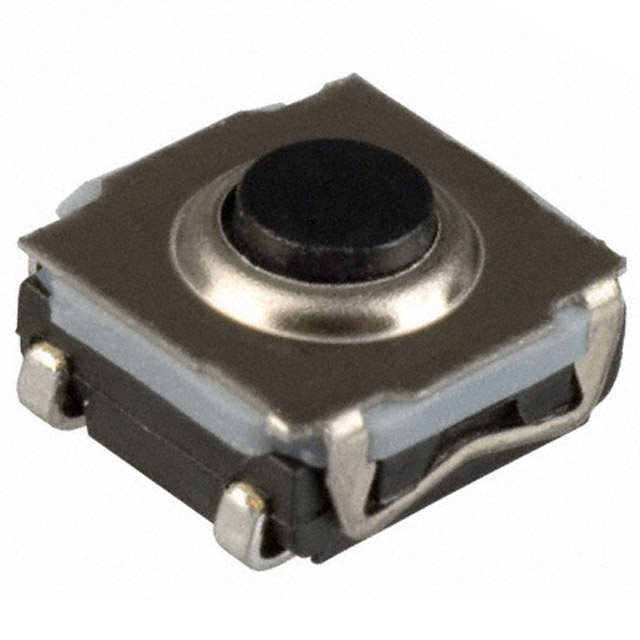

Littelfuse/Commercial Vehicle Products KSC321J	85 °C	-40 °C	Non-Illuminated	Top Actuated	0.05 A	0.2 mm	Surface Mount	SPST-NO	6.2 mm	6.2 mm	IP67 - Dust Tight Waterproof	Off-Mom	Standard	200 gf	J Lead	3.5 mm	300000 Cycles
Littelfuse/Commercial Vehicle Products KSC351JLFS	85 °C	-40 °C	Non-Illuminated	Top Actuated	0.05 A	0.25 mm	Surface Mount	SPST-NO	6.2 mm	6.2 mm	IP67 - Dust Tight Waterproof	Off-Mom	Standard	0.5 kgf	J Lead	3.5 mm	100000 Cycles
Littelfuse/Commercial Vehicle Products KSC321JLFS	85 °C	-40 °C	Non-Illuminated	Top Actuated	0.05 A	0.2 mm	Surface Mount	SPST-NO	6.2 mm	6.2 mm	IP67 - Dust Tight Waterproof	Off-Mom	Standard	200 gf	J Lead	3.5 mm	300000 Cycles

Catalog

Sealed Tact Switch for SMT

Key Features

• Positive adaptable tactile feeling

• hard actuator 3,5mm high

• IP67

Description

C&K’s KSC3 series sealed tact switches for SMT are designed for small applications and products. Their positive adaptable tactile feeling is perfect for industrial, automotive and consumer applications, such as mobile phones and car door handles. KSC3 switches are IP67 rated, 3.5mm high hard actuator tactile switches.
