LM239 Series

Catalog

ANALOGUE COMPARATOR, QUAD, VOLTAGE, 4, 1.3 S, 1V TO 18V, SOIC, 14 ROHS COMPLIANT: YES

Part	Type	Output Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Quiescent (Max) [Max]	Current - Output (Typ)	Package / Case	Package / Case	Current - Input Bias (Max)	Number of Elements	Mounting Type	Voltage - Input Offset (Max) [Max]	Supplier Device Package	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Current - Input Bias (Max) [Max]	Package / Case [x]	Package / Case	Package / Case
STMicroelectronics LM239ADT	General Purpose Standard (General Purpose)	CMOS DTL ECL MOS Open-Collector TTL	-40 C	105 ░C	2 mA	16 mA	0.154 in 3.9 mm	14-SOIC	0.1 µA	4	Surface Mount	2 mV	14-SO	±1V	16 V 32 V	2 V
STMicroelectronics LM239PT	Standard (General Purpose)	CMOS DTL ECL MOS Open-Collector TTL	-40 C	105 ░C	2 mA	16 mA		14-TSSOP		4	Surface Mount	5 mV	14-TSSOP	±1V	16 V 32 V	2 V	0.25 µA	0.173 " 4.4 mm
STMicroelectronics LM239D	Standard (General Purpose)	CMOS DTL ECL MOS Open-Collector TTL	-40 C	105 ░C	2 mA	16 mA	0.154 in 3.9 mm	14-SOIC		4	Surface Mount	5 mV	14-SO	±1V	16 V 32 V	2 V	0.25 µA
STMicroelectronics LM239APT	Standard (General Purpose)	CMOS DTL ECL MOS Open-Collector TTL	-40 C	105 ░C	2 mA	16 mA		14-TSSOP	0.1 µA	4	Surface Mount	2 mV	14-TSSOP	±1V	16 V 32 V	2 V		0.173 " 4.4 mm
STMicroelectronics LM239N	General Purpose Standard (General Purpose)	CMOS DTL ECL MOS Open-Collector TTL	-40 C	105 ░C	2 mA	16 mA		14-DIP		4	Through Hole	5 mV	14-DIP	±1V	16 V 32 V	2 V	0.25 µA		0.3 in	7.62 mm

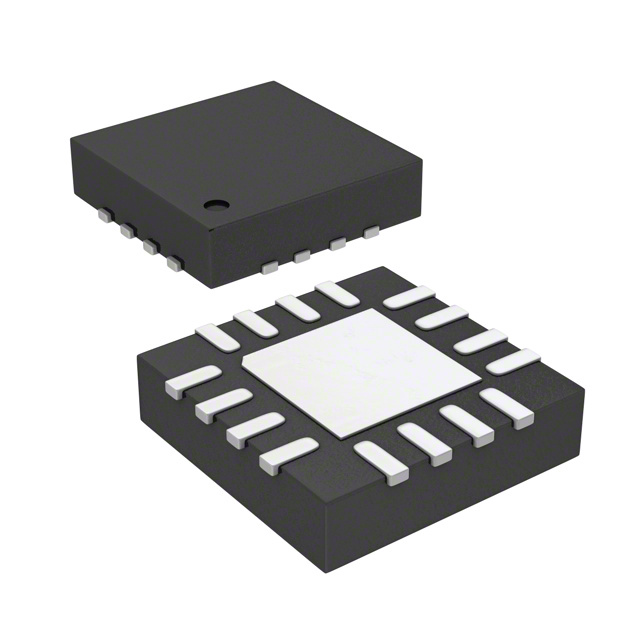

STMicroelectronics LM239QT	General Purpose Standard (General Purpose)	CMOS DTL ECL MOS Open-Collector TTL	-40 C	105 ░C	2 mA	16 mA		16-VFQFN Exposed Pad		4	Surface Mount	5 mV	16-QFN (3x3)		18 V 36 V	1 V 2 V	0.25 µA
STMicroelectronics LM239DT	Standard (General Purpose)	CMOS DTL ECL MOS Open-Collector TTL	-40 C	105 ░C	2 mA	16 mA	0.154 in 3.9 mm	14-SOIC		4	Surface Mount	5 mV	14-SO	±1V	16 V 32 V	2 V	0.25 µA
