01827 Series

Catalog

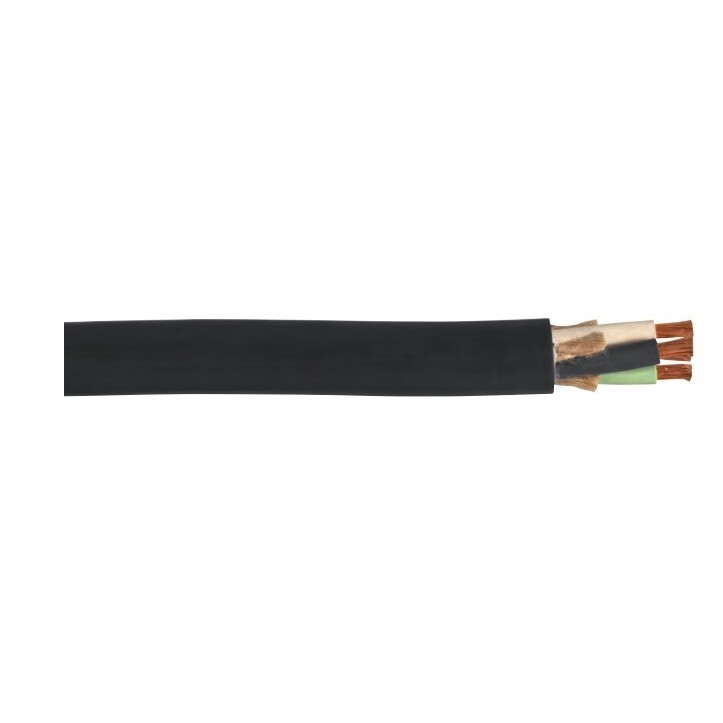

CABLE 4COND 8AWG BLACK

Part	Jacket (Insulation) Material	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Wire Gauge	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Usage	Cable Type	Jacket Color	Length	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Length [x]	Length [x]
Prysmian Group 01827.44.01	Carolprene	Ethylene Propylene Terpolymer Rubber (EPDM)	19.3 mm	0.76 in	600 V	8 AWG	Copper Bare	26 AWG	65	90 °C	-40 C	Cord and Cordset	Multi-Conductor	Black	2500 ft	762 m	0.05 in	1.27 mm	4
Prysmian Group 01827.41.01	Carolprene	Ethylene Propylene Terpolymer Rubber (EPDM)	19.81 mm	0.78 in	600 V	8 AWG	Copper Bare	26 AWG	65	90 °C	-40 C	Cord and Cordset	Multi-Conductor	Black	1000 ft	304.8 m	0.05 in	1.27 mm	4
Prysmian Group 01827.33.01	Carolprene	Ethylene Propylene Terpolymer Rubber (EPDM)	19.3 mm	0.76 in	600 V	8 AWG	Copper Bare	26 AWG	65	90 °C	-40 C	Cord and Cordset	Multi-Conductor	Black			0.05 in	1.27 mm	4	100 ft	30.5 m
Prysmian Group 01827.38.05	Carolprene	Ethylene Propylene Terpolymer Rubber (EPDM)	19.3 mm	0.76 in	600 V	8 AWG	Copper Annealed Bare	26 AWG	65	90 °C	-40 C		Multi-Conductor	Yellow	500 ft	152.4 m	0.05 in	1.27 mm	4
Prysmian Group 01827.38.01	Carolprene	Ethylene Propylene Terpolymer Rubber (EPDM)	19.3 mm	0.76 in	600 V	8 AWG	Copper Bare	26 AWG	65	90 °C	-40 C	Cord and Cordset	Multi-Conductor	Black	500 ft	152.4 m	0.05 in	1.27 mm	4
Prysmian Group 01827.38.01	Carolprene	Ethylene Propylene Terpolymer Rubber (EPDM)	19.3 mm	0.76 in	600 V	8 AWG	Copper Bare	26 AWG	65	90 °C	-40 C	Cord and Cordset	Multi-Conductor	Black	500 ft	152.4 m	0.05 in	1.27 mm	4
Prysmian Group 01827.35.01	Carolprene	Ethylene Propylene Terpolymer Rubber (EPDM)	19.81 mm	0.78 in	600 V	8 AWG	Copper Bare	26 AWG	65	90 °C	-40 C	Cord and Cordset	Multi-Conductor	Black	250 ft	76.2 m	0.05 in	1.27 mm	4
Prysmian Group 01827.35.01	Carolprene	Ethylene Propylene Terpolymer Rubber (EPDM)	19.81 mm	0.78 in	600 V	8 AWG	Copper Bare	26 AWG	65	90 °C	-40 C	Cord and Cordset	Multi-Conductor	Black	250 ft	76.2 m	0.05 in	1.27 mm	4
Prysmian Group 01827.46.01	Carolprene	Ethylene Propylene Terpolymer Rubber (EPDM)	19.3 mm	0.76 in	600 V	8 AWG	Copper Bare	26 AWG	65	90 °C	-40 C	Cord and Cordset	Multi-Conductor	Black			0.05 in	1.27 mm	4
Prysmian Group 01827.41.01	Carolprene	Ethylene Propylene Terpolymer Rubber (EPDM)	19.81 mm	0.78 in	600 V	8 AWG	Copper Bare	26 AWG	65	90 °C	-40 C	Cord and Cordset	Multi-Conductor	Black	1000 ft	304.8 m	0.05 in	1.27 mm	4
