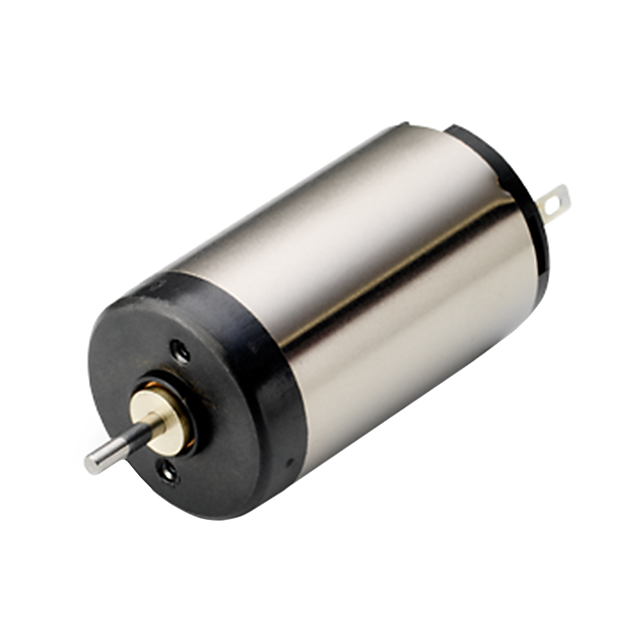

16N28 Series
Manufacturer: Portescap
Beta
⌘K
STANDARD MOTOR 9700 RPM 7.5V
| Part | Weight | Weight | Function | Length - Shaft and Bearing | Length - Shaft and Bearing [x] | Motor Type | Type | Voltage - Rated | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Power - Rated | RPM | Termination Style | Size / Dimension [diameter] | Size / Dimension | Size / Dimension [diameter] | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Portescap | 24.04 g | 0.053 lb | Standard | 7.5 mm | 0.295 " | Brushed | DC Motor | 7.5 VDC | 1.5 mm | 0.059 in | 85 °C | -30 ░C | 1.7 W | 9700 RPM | Solder Tab | 0.629 in | Round | 16 mm | 0.41 oz-in | 2.9 mNm | 10 mm | 0.394 in |
Portescap | 24.04 g | 0.053 lb | Standard | 7.5 mm | 0.295 " | Brushed | DC Motor | 12 VDC | 1.5 mm | 0.059 in | 85 °C | -30 ░C | 1.7 W | 10800 RPM | Solder Tab | 0.629 in | Round | 16 mm | 0.339 oz-in | 2.4 mNm | 10 mm | 0.394 in |
