AOW11 Series

Catalog

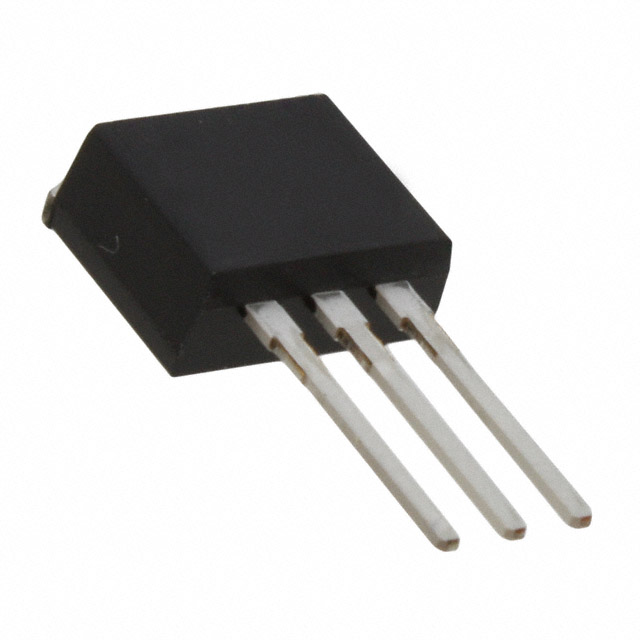

MOSFET N-CH 650V 11A TO262

Part	Drive Voltage (Max Rds On, Min Rds On)	Drain to Source Voltage (Vdss)	Current - Continuous Drain (Id) @ 25°C	Power Dissipation (Max)	Gate Charge (Qg) (Max) @ Vgs	Operating Temperature [Max]	Operating Temperature [Min]	Input Capacitance (Ciss) (Max) @ Vds	Vgs (Max)	Technology	Mounting Type	Package / Case	Vgs(th) (Max) @ Id	Supplier Device Package	FET Type	Rds On (Max) @ Id, Vgs	Input Capacitance (Ciss) (Max) @ Vds [Max]
Alpha & Omega Semiconductor Inc. AOW11S65	10 V	650 V	11 A	198 W	13.2 nC	150 °C	-55 °C	646 pF	30 V	MOSFET (Metal Oxide)	Through Hole	I2PAK TO-262-3 Long Leads TO-262AA	4 V	TO-262	N-Channel	399 mOhm
Alpha & Omega Semiconductor Inc. AOW11N60	10 V	600 V	11 A	272 W		150 °C	-55 °C		30 V	MOSFET (Metal Oxide)	Through Hole	I2PAK TO-262-3 Long Leads TO-262AA	4.5 V	TO-262	N-Channel	700 mOhm	1990 pF
