AM5718-HIREL Series

AM5718-HIREL Sitara™ Processors Silicon Revision 2.0

Catalog

AM5718-HIREL Sitara™ Processors Silicon Revision 2.0

Part	Supplier Device Package	Grade	Qualification	Ethernet	Display & Interface Controllers	Voltage - I/O	Number of Cores/Bus Width	Co-Processors/DSP	RAM Controllers	SATA	Operating Temperature [Min]	Operating Temperature [Max]	Core Processor	USB [custom]	Speed	Mounting Type	Package / Case	Additional Interfaces	USB	Ethernet	Ethernet [Max]	Ethernet [Min]	Operating Temperature [custom]
Texas Instruments AM5718AABCXEQ1	760-FCBGA (23x23)	Automotive	AEC-Q100	10 Mbps 100 Mbps 1000 Mbps	HDMI LCD	1.8 V 3.3 V	1 Core 32 Bit	GPU IPU Multimedia VFP	DDR3 SRAM	3 Gbps	-40 °C	125 ¯C	ARM® Cortex®-A15	USB 2.0 (1) USB 3.0 (1)	1.5 GHz	Surface Mount	760-BFBGA FCBGA	CAN EBI/EMI HDQ/1-Wire\ I2C McASP McSPI MMC/SD/SDIO PCIe QSPI UART
Texas Instruments AM5718AABCX	760-FCBGA (23x23)			10 Mbps 100 Mbps 1000 Mbps	HDMI	1.8 V 3.3 V	1 Core 32 Bit	GPU IPU Multimedia VFP	DDR3 SRAM	3 Gbps	0 °C	90 °C	ARM® Cortex®-A15	USB 2.0 (1) USB 3.0 (1)	1.5 GHz	Surface Mount	760-BFBGA FCBGA	CAN EBI/EMI HDQ/1-Wire\ I2C McASP McSPI MMC/SD/SDIO PCIe QSPI UART

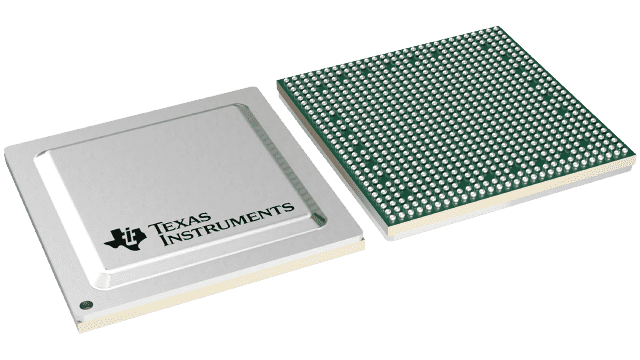

Texas Instruments AM5718AZBOXEM	780-FCBGA (23x23)					1.8 V 3.3 V	1 Core 32 Bit	BB2D DSP GPU IPU IVA VPE	DDR3 DDR3L	3 Gbps	-55 °C	125 °C	ARM® Cortex®-A15		1.5 GHz	Surface Mount	780-BGA FCBGA	CAN EBI/EMI HDQ/1-Wire\ I2C McASP McSPI MMC/SD/SDIO PCIe QSPI UART	PHY (2) USB 2.0 (2) USB 3.0 (2)
Texas Instruments AM5718ABCXE	760-FCBGA (23x23)					1.8 V 3.3 V	1 Core 32 Bit	GPU IPU Multimedia VFP	DDR3 SRAM	3 Gbps	0 °C	90 °C	ARM® Cortex®-A15	USB 2.0 (1) USB 3.0 (1)	1.5 GHz	Surface Mount	760-BFBGA FCBGA			1	100 Mbps	10 Mbps
Texas Instruments AM5718AABCXEA	760-FCBGA (23x23)			10 Mbps 100 Mbps 1000 Mbps	HDMI	1.8 V 3.3 V	1 Core 32 Bit	GPU IPU Multimedia VFP	DDR3 SRAM	3 Gbps			ARM® Cortex®-A15	USB 2.0 (1) USB 3.0 (1)	1.5 GHz	Surface Mount	760-BFBGA FCBGA	CAN EBI/EMI HDQ/1-Wire\ I2C McASP McSPI MMC/SD/SDIO PCIe QSPI UART					-40 °C 105 °C

Catalog

AM5718-HIREL Sitara™ Processors Silicon Revision 2.0

Key Features

• For Silicon Revision 1.0 Information, SeeSPRS919ARM® Cortex®-A15 Microprocessor SubsystemC66x Floating-Point VLIW DSPFully Object-Code Compatible With C67x and C64x+Up to Thirty-Two 16 × 16-Bit Fixed-Point Multiplies per CycleUp to 512KB of On-Chip L3 RAMLevel 3 (L3) and Level 4 (L4) InterconnectsDDR3/DDR3L Memory Interface (EMIF) ModuleSupports up to DDR3-1333 (667 MHz)Up to 2GB Across Single Chip SelectDual ARM® Cortex®-M4 CoprocessorsIVA-HD SubsystemDisplay SubsystemFull-HD Video (1920 × 1080p, 60 fps)Multiple Video Input and Video Output2D and 3D GraphicsDisplay Controller With DMA Engine and up to Three PipelinesHDMI™ Encoder: HDMI 1.4a and DVI 1.0 Compliant2x Dual-Core Programmable Real-Time Unit and Industrial Communication Subsystem (PRU-ICSS)Accelerator (BB2D) SubsystemVivante™ GC320 CoreVideo Processing Engine (VPE)Available Single-Core PowerVR® SGX544 3D GPUOne Video Input Port (VIP) ModuleSupport for up to Four Multiplexed Input PortsGeneral-Purpose Memory Controller (GPMC)Enhanced Direct Memory Access (EDMA) ControllerEthernet SubsystemSixteen 32-Bit General-Purpose Timers32-Bit MPU Watchdog TimerFive High-Speed Inter-Integrated Circuit (I2C) PortsHDQ™/1-Wire® InterfaceTen Configurable UART/IrDA/CIR ModulesFour Multichannel Serial Peripheral Interfaces (McSPI)Quad SPI Interface (QSPI)SATA Gen2 InterfaceEight Multichannel Audio Serial Port (McASP) ModulesSuperSpeed USB 3.0 Dual-Role DeviceHigh-Speed USB 2.0 Dual-Role DeviceFour MultiMedia Card/Secure Digital/Secure Digital Input Output Interfaces (MMC/SD/SDIO)PCI Express® 3.0 Subsystems With Two 5-Gbps LanesOne 2-Lane Gen2-Compliant PortOr Two 1-Lane Gen2-Compliant PortsDual Controller Area Network (DCAN) ModulesCAN 2.0B ProtocolMIPI® CSI-2 Camera Serial InterfaceUp to 215 General-Purpose I/O (GPIO) PinsPower, Reset, and Clock ManagementOn-Chip Debug With CTools Technology28-nm CMOS Technology23 mm × 23 mm, 0.8-mm Pitch, 760-Pin BGA (ZBO)For Silicon Revision 1.0 Information, SeeSPRS919ARM® Cortex®-A15 Microprocessor SubsystemC66x Floating-Point VLIW DSPFully Object-Code Compatible With C67x and C64x+Up to Thirty-Two 16 × 16-Bit Fixed-Point Multiplies per CycleUp to 512KB of On-Chip L3 RAMLevel 3 (L3) and Level 4 (L4) InterconnectsDDR3/DDR3L Memory Interface (EMIF) ModuleSupports up to DDR3-1333 (667 MHz)Up to 2GB Across Single Chip SelectDual ARM® Cortex®-M4 CoprocessorsIVA-HD SubsystemDisplay SubsystemFull-HD Video (1920 × 1080p, 60 fps)Multiple Video Input and Video Output2D and 3D GraphicsDisplay Controller With DMA Engine and up to Three PipelinesHDMI™ Encoder: HDMI 1.4a and DVI 1.0 Compliant2x Dual-Core Programmable Real-Time Unit and Industrial Communication Subsystem (PRU-ICSS)Accelerator (BB2D) SubsystemVivante™ GC320 CoreVideo Processing Engine (VPE)Available Single-Core PowerVR® SGX544 3D GPUOne Video Input Port (VIP) ModuleSupport for up to Four Multiplexed Input PortsGeneral-Purpose Memory Controller (GPMC)Enhanced Direct Memory Access (EDMA) ControllerEthernet SubsystemSixteen 32-Bit General-Purpose Timers32-Bit MPU Watchdog TimerFive High-Speed Inter-Integrated Circuit (I2C) PortsHDQ™/1-Wire® InterfaceTen Configurable UART/IrDA/CIR ModulesFour Multichannel Serial Peripheral Interfaces (McSPI)Quad SPI Interface (QSPI)SATA Gen2 InterfaceEight Multichannel Audio Serial Port (McASP) ModulesSuperSpeed USB 3.0 Dual-Role DeviceHigh-Speed USB 2.0 Dual-Role DeviceFour MultiMedia Card/Secure Digital/Secure Digital Input Output Interfaces (MMC/SD/SDIO)PCI Express® 3.0 Subsystems With Two 5-Gbps LanesOne 2-Lane Gen2-Compliant PortOr Two 1-Lane Gen2-Compliant PortsDual Controller Area Network (DCAN) ModulesCAN 2.0B ProtocolMIPI® CSI-2 Camera Serial InterfaceUp to 215 General-Purpose I/O (GPIO) PinsPower, Reset, and Clock ManagementOn-Chip Debug With CTools Technology28-nm CMOS Technology23 mm × 23 mm, 0.8-mm Pitch, 760-Pin BGA (ZBO)

Description

AM5718-HIREL Sitara ARM applications processors are built to meet the intense processing needs of the modern embedded products. AM5718-HIREL devices bring high processing performance through the maximum flexibility of a fully integrated mixed processor solution. The devices also combine programmable video processing with a highly integrated peripheral set. Programmability is provided by a single-core ARM Cortex-A15 RISC CPU with Neon™ extensions and a TI C66x VLIW floating-point DSP core. The ARM processor lets developers keep control functions separate from vision algorithms programmed on the DSP and coprocessors, thus reducing the complexity of the system software. Additionally, TI provides a complete set of development tools for the ARM and C66x DSP, including C compilers, a DSP assembly optimizer to simplify programming and scheduling, and a debugging interface for visibility into source code execution. The AM5718-HIREL Sitara ARM processor family is qualified according to the AEC-Q100 Standard. AM5718-HIREL Sitara ARM applications processors are built to meet the intense processing needs of the modern embedded products. AM5718-HIREL devices bring high processing performance through the maximum flexibility of a fully integrated mixed processor solution. The devices also combine programmable video processing with a highly integrated peripheral set. Programmability is provided by a single-core ARM Cortex-A15 RISC CPU with Neon™ extensions and a TI C66x VLIW floating-point DSP core. The ARM processor lets developers keep control functions separate from vision algorithms programmed on the DSP and coprocessors, thus reducing the complexity of the system software. Additionally, TI provides a complete set of development tools for the ARM and C66x DSP, including C compilers, a DSP assembly optimizer to simplify programming and scheduling, and a debugging interface for visibility into source code execution. The AM5718-HIREL Sitara ARM processor family is qualified according to the AEC-Q100 Standard.
