ATA6570 Series

High-speed CAN FD Transceiver with Partial Networking

Catalog

High-speed CAN FD Transceiver with Partial Networking

Part	Protocol	Qualification	Data Rate	Mounting Type	Duplex	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case [x]	Package / Case [y]	Package / Case	Receiver Hysteresis	Grade	Supplier Device Package
Microchip Technology ATA6570-GNQW0	CANbus	AEC-Q100	5 MBd	Surface Mount	Half	Transceiver	125 °C	-40 °C	4.55 V	28 V	0.154 in	3.9 mm	14-SOIC	120 mV	Automotive
Microchip Technology ATA6570-GNQW1	CANbus	AEC-Q100	5 MBd	Surface Mount	Half	Transceiver	125 °C	-40 °C	4.55 V	28 V	0.154 in	3.9 mm	14-SOIC	120 mV	Automotive

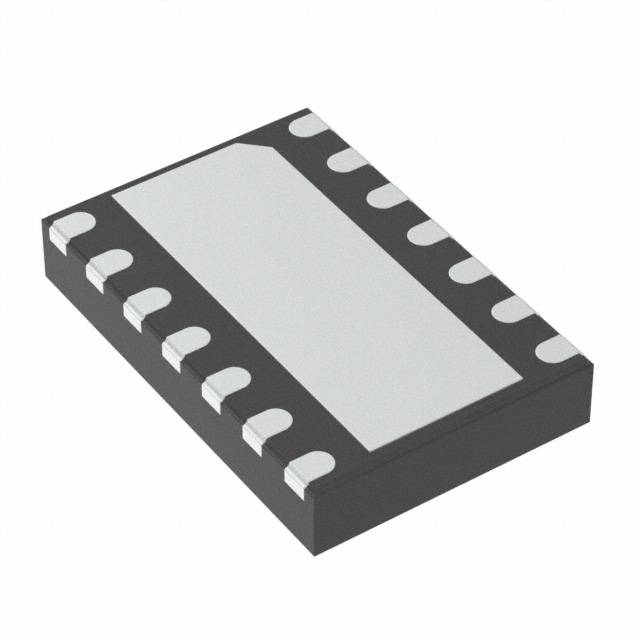

Microchip Technology ATA6570-GCQW0	CANbus	AEC-Q100	5 MBd	Surface Mount Wettable Flank	Half	Transceiver	125 °C	-40 °C	4.55 V	28 V			14-VDFN Exposed Pad	120 mV	Automotive	14-VDFN (4.5x3)

Catalog

High-speed CAN FD Transceiver with Partial Networking

Key Features

- High speed CAN PN transceiver Fully ISO 11898-2, ISO 11898-5, ISO 11898-2: 2016 and SAE J2962-2 compliant

- ISO 26262 FuSa Ready

- Autonomous bus biasing according to ISO 11898-6

- Low electromagnetic emission (EME) and high electromagnetic immunity (EMI)

- Standard CAN data rate up to 1Mbit/s and CAN FD data rate up to 5Mbit/s (CAN FD)

- Differential bus receiver with wide common mode range

- Very low current consumption in Sleep and Standby with fully wake-up capability

- Power-down of the complete node via the INH-output (switching off external voltage regulator(s))

- T wake-up sources Local wake-up via pin WAKE Remote wake-up pattern according to ISO 11898-5 Remote wake-up frame according to ISO 11898-6 (selective wake-up) Host wake-up via SPI Wake-up source recognition

- Local wake-up via pin WAKE

- Remote wake-up pattern according to ISO 11898-5

- Wake-up source recognition

- 3.3V to 5V microcontrollers can be interfaced directly via the VIO pin

- Battery supply and CAN bus pins protected against transients according to ISO7637

- High Electro Static Discharge (ESD) Handling Capability on the Bus Pins

- Bus pins short-circuit protected to GND and VCC

- VS operating voltage up to 28V, VS DC supply voltage up to 40V

- AEC-Q100 and AEC-Q006 qualified

- Fulfills the OEM Hardware Requirements for CAN Interfaces in Automotive Applications, Rev. 1.3

- Fulfills the OEM Requirements for Partial Networking Rev. 2.2

- SOIC14 and DFN14 package with wettable flanks

•

• Built-In Safety features* Transmit data (TXD) dominant timeout function

• * RXD recessive clamping detection

• * Power-on Reset (POR)

• * Overtemperature protection

• * Undervoltage detection on VS, VCC and VIO pins

• * Transceiver disengages from the bus in over-temperature and low power supply mode

• * Bus Recessive/Dominant Clamping Detection

Description

The ATA6570 is a CAN Partial Networking (PN) transceiver that interfaces a Controller Area Network (CAN) protocol controller and the physical two wire CAN bus. It is designed for high speed CAN applications in the automotive environment. It provides local and enhanced remote wake-up capabilities. The Microchip ATA6570 has a very low power consumption in Standby and Sleep Mode. Beside local wake-up via WAKE and remote wake-up pattern according to ISO 11898-2: 2016 and also additionally supports ISO11898-2: 2016 compliant CAN partial networking. A CAN frame decoder evaluates the bus traffic and checks for a matching frame, that has been configured in the registers via SPI. The device is able to keep the complete ECU in a low power mode even when bus traffic is present until a valid wake-up frame is received. It also features a watchdog, a Serial Peripheral Interface (SPI) and automatic adjustment of the I/O levels to the I/O level of the connected microcontroller via the VIO pin. The Microchip ATA6570 is a CAN-FD capable device. Wakeup via Wake-up frames can be configured to be either CAN-FD tolerant (CAN-FD frames are ignored) or to increase an error counter when receiving FD frames. The Transceiver also offers Normal, Standby and Silent mode to configure the TX/RX path. This configuration is done via SPI. To purchase the ATA6570 or obtain additional information, please contact any Microchip sales representative or authorized worldwide distributor. Please see our MikroElektronika click Board! <https://www.mikroe.com/ata6570-click> An MCAL driver is available upon request as described here: <https://www.microchip.com/en-us/solutions/automotive-and-transportation/software> Please contact your local Sales representative.
