TLP521 Series

Catalog

OPTOISOLTR 5.3KV 2CH TRANS 8-DIP

Part	Number of Channels	Current Transfer Ratio (Max) [Max]	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Operating Temperature [Min]	Operating Temperature [Max]	Current Transfer Ratio (Min)	Package / Case	Voltage - Isolation [custom]	Vce Saturation (Max) [Max]	Voltage - Output (Max) [Max]	Output Type	Mounting Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Input Type	Current - DC Forward (If) (Max) [Max]	Package / Case	Package / Case	Number of Channels [custom]	Current Transfer Ratio (Min) [Min]
Isocom Components 2004 LTD TLP521-2X	2	600 %	8-DIP	1.15 V	-30 ░C	100 °C	50 %	8-DIP (0.300" 7.62mm)	5300 Vrms	400 mV	55 V	Transistor	Through Hole	4 µs	3 µs	DC	50 mA

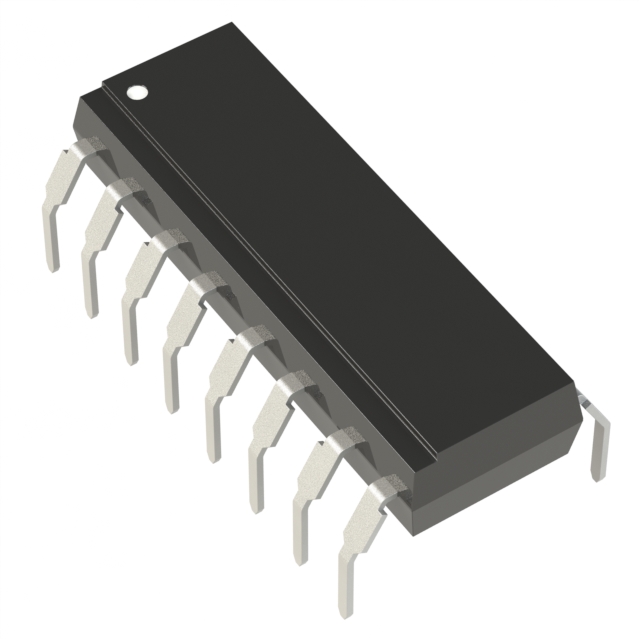

Isocom Components 2004 LTD TLP521-4GR			16-DIP	1.15 V	-30 ░C	100 °C		16-DIP	5300 Vrms	400 mV	55 V	Transistor	Through Hole	4 µs	3 µs	DC	50 mA	10.16 mm	0.4 in	4

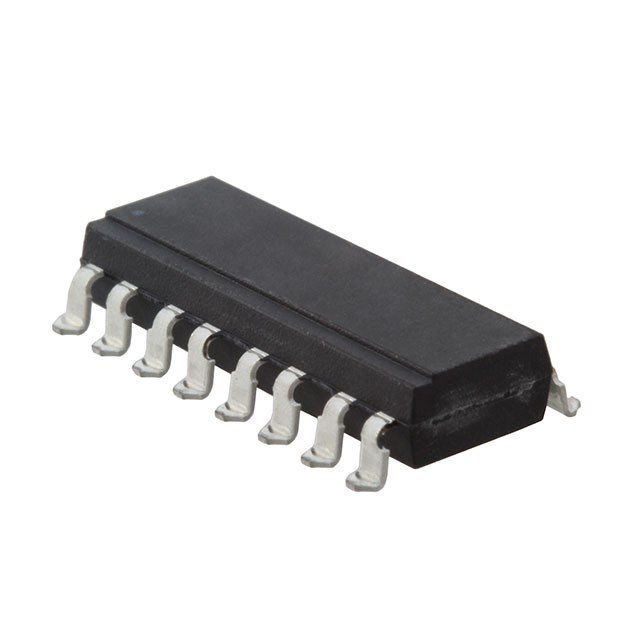

Isocom Components 2004 LTD TLP521-4XSM		600 %		1.15 V	-30 ░C	100 °C	50 %	16-SMD Gull Wing	5300 Vrms	400 mV	55 V	Transistor	Surface Mount	4 µs	3 µs	DC	50 mA			4
Isocom Components 2004 LTD TLP521-2XSM	2	600 %		1.15 V	-30 ░C	100 °C	50 %		5300 Vrms	400 mV	55 V	Transistor	Surface Mount	4 µs	3 µs	DC	50 mA
Isocom Components 2004 LTD TLP521-4XGB		600 %	16-DIP	1.15 V	-30 ░C	100 °C		16-DIP	5300 Vrms	400 mV	55 V	Transistor	Through Hole	4 µs	3 µs	DC	50 mA	10.16 mm	0.4 in	4	100 %
