AD8054 Series

Catalog

LOW COST, HIGH SPEED, RAIL-TO-RAIL AMPLIFIER

Part	Voltage - Input Offset	Current - Output / Channel	Output Type	Supplier Device Package	Voltage - Supply Span (Min) [Min]	Slew Rate	Mounting Type	Current - Input Bias	Amplifier Type	Number of Circuits	Voltage - Supply Span (Max) [Max]	Current - Supply	Package / Case [custom]	Package / Case [custom]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	-3db Bandwidth	Package / Case [x]	Package / Case [y]	Utilized IC / Part	Supplied Contents	Channels per IC	Board Type
Analog Devices AD8054ARUZ	1.8 mV	30 mA	Rail-to-Rail	14-TSSOP	3 V	190 V/µs	Surface Mount	2 µA	Voltage Feedback	4	12 V	2.875 mA	0.173 "	4.4 mm	14-TSSOP	125 °C	-40 °C	160 MHz
Analog Devices AD8054AR-REEL7	1.8 mV	30 mA	Rail-to-Rail		3 V	190 V/µs	Surface Mount	2 µA	Voltage Feedback	4	12 V	2.875 mA			14-SOIC	125 °C	-40 °C	160 MHz	0.154 in	3.9 mm
Analog Devices AD8054ARU-REEL7	1.8 mV	30 mA	Rail-to-Rail	14-TSSOP	3 V	190 V/µs	Surface Mount	2 µA	Voltage Feedback	4	12 V	2.875 mA	0.173 "	4.4 mm	14-TSSOP	125 °C	-40 °C	160 MHz
Analog Devices AD8054ARZ-REEL7	1.8 mV	30 mA	Rail-to-Rail		3 V	190 V/µs	Surface Mount	2 µA	Voltage Feedback	4	12 V	2.875 mA			14-SOIC	125 °C	-40 °C	160 MHz	0.154 in	3.9 mm

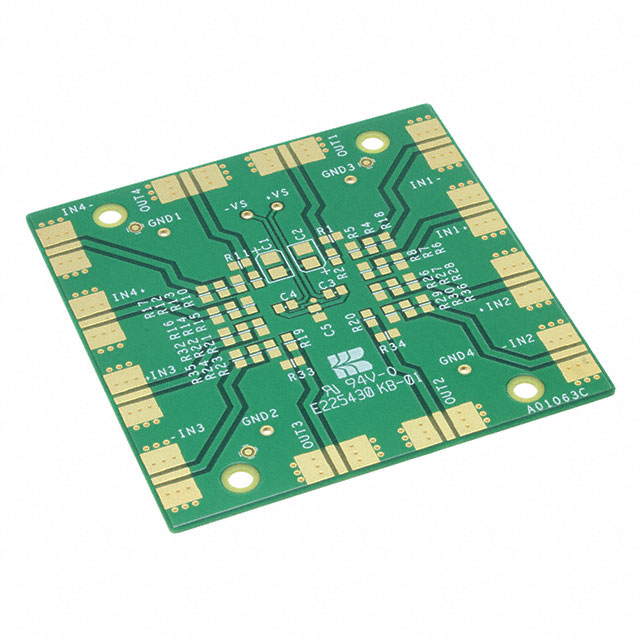

Analog Devices AD8054ARU-EBZ									Voltage Feedback												14-TSSOP Package	Board(s)	4	Bare (Unpopulated)
Analog Devices AD8054ARUZ-REEL7	1.8 mV	30 mA	Rail-to-Rail	14-TSSOP	3 V	190 V/µs	Surface Mount	2 µA	Voltage Feedback	4	12 V	2.875 mA	0.173 "	4.4 mm	14-TSSOP	125 °C	-40 °C	160 MHz
