8000 Series

Catalog

PROTOTYPING BOARD, FR4, EPOXY GLASS COMPOSITE, 1.575MM, 165.1MM X 114.3MM

Part	Hole Diameter [diameter]	Hole Diameter [diameter]	Proto Board Type	Board Thickness	Board Thickness	Board Thickness	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Circuit Pattern	Pitch	Pitch	Size / Dimension [y]	Size / Dimension [x]	Pitch [x]	Pitch [x]

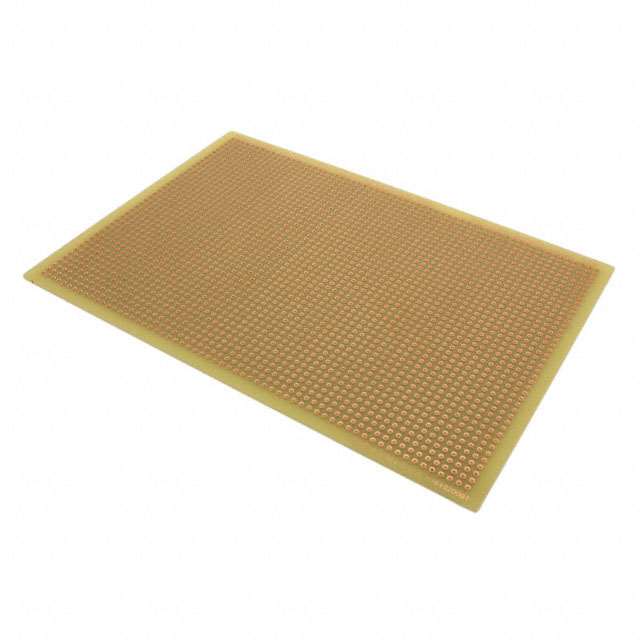

TWIN INDUSTRIES 8000-4565-LF	0.037 in	0.94 mm	Breadboard General Purpose	1.57 mm	0.062 "	0.0625 in	6.5 in	4.5 "	165.1 mm	114.3 mm	Pad Per Hole (Round)	0.1 "	2.54 mm

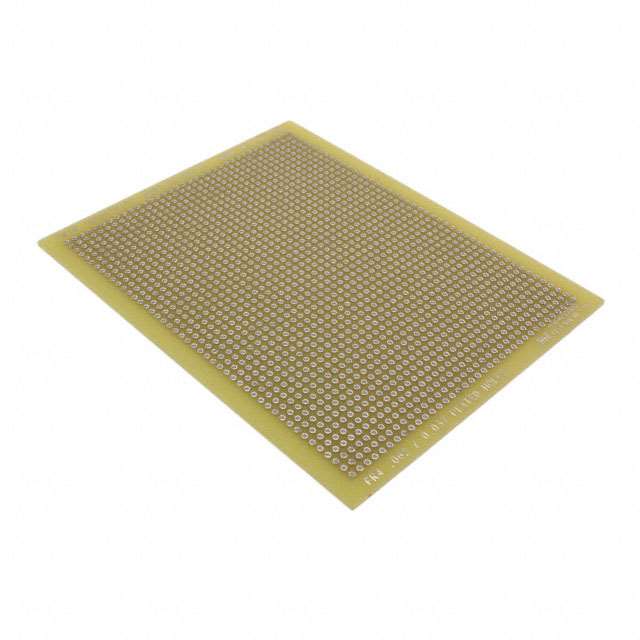

TWIN INDUSTRIES 8000-45	0.037 in	0.94 mm	Breadboard General Purpose	1.57 mm	0.062 "	0.0625 in	5 "	4 "	127 mm	101.6 mm	Pad Per Hole (Round)	0.1 "	2.54 mm

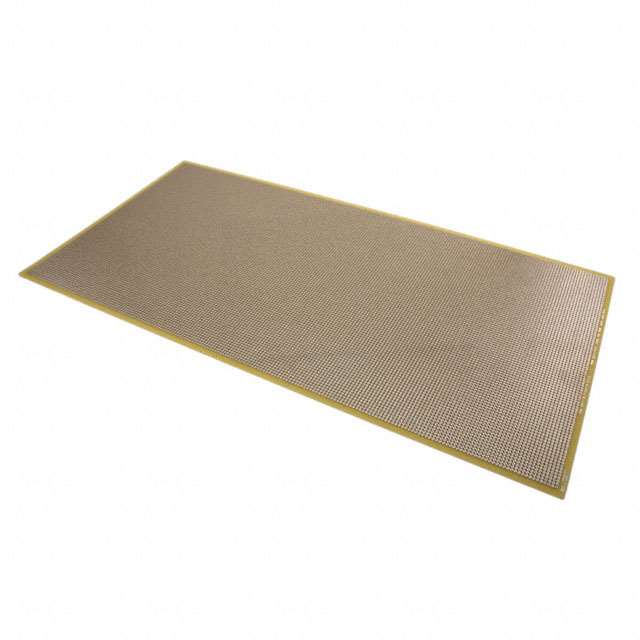

TWIN INDUSTRIES 8000-1020	0.037 in	0.94 mm	Breadboard General Purpose	1.57 mm	0.062 "	0.0625 in	20 "	10 "	508 mm	254 mm	Pad Per Hole (Round)	0.1 "	2.54 mm

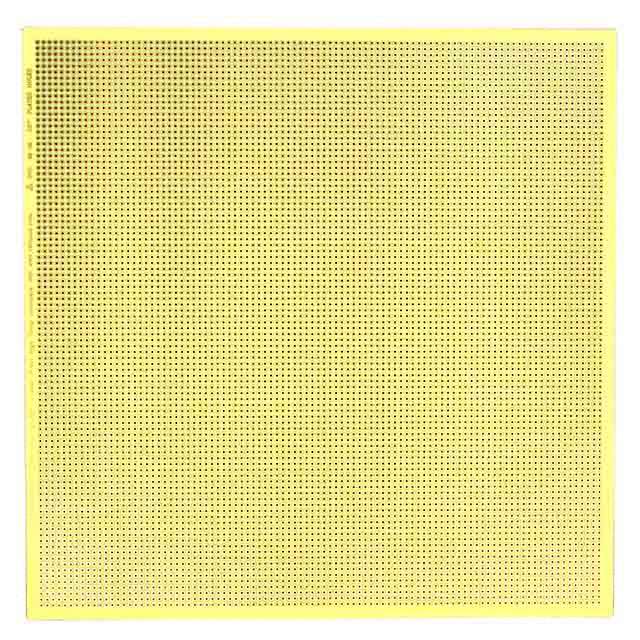

TWIN INDUSTRIES 8000-1010-LF	0.037 in	0.94 mm	Breadboard General Purpose	1.57 mm	0.062 "	0.0625 in			254 mm	254 mm	Pad Per Hole (Round)	0.1 "	2.54 mm	10 "	10 in
TWIN INDUSTRIES 8000-410-LF	0.037 in	0.94 mm	Breadboard General Purpose	1.57 mm	0.062 "	0.0625 in	10 in	4 "	254 mm	101.6 mm	Pad Per Hole (Round)	0.1 "	2.54 mm

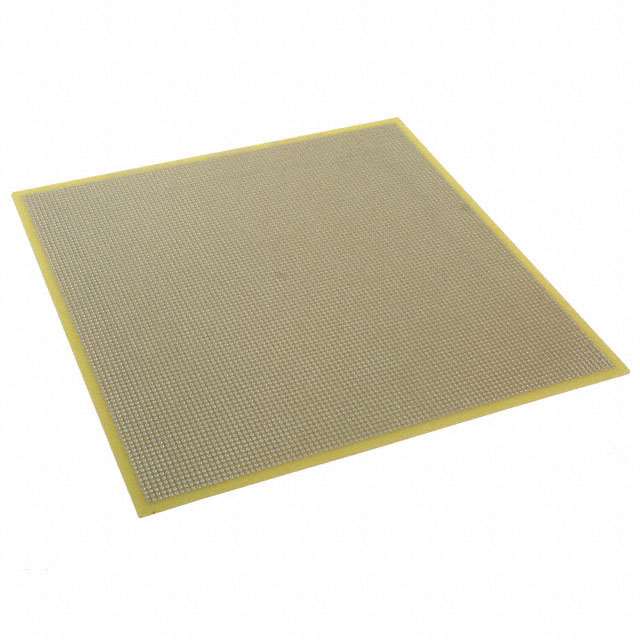

TWIN INDUSTRIES 8000-1010	0.037 in	0.94 mm	Breadboard General Purpose	1.57 mm	0.062 "	0.0625 in			254 mm	254 mm	Pad Per Hole (Round)	0.1 "	2.54 mm	10 "	10 in
TWIN INDUSTRIES 8000-45-LF	0.037 in	0.94 mm	Breadboard General Purpose	1.57 mm	0.062 "	0.0625 in	5 "	4 "	127 mm	101.6 mm	Pad Per Hole (Round)	0.1 "	2.54 mm

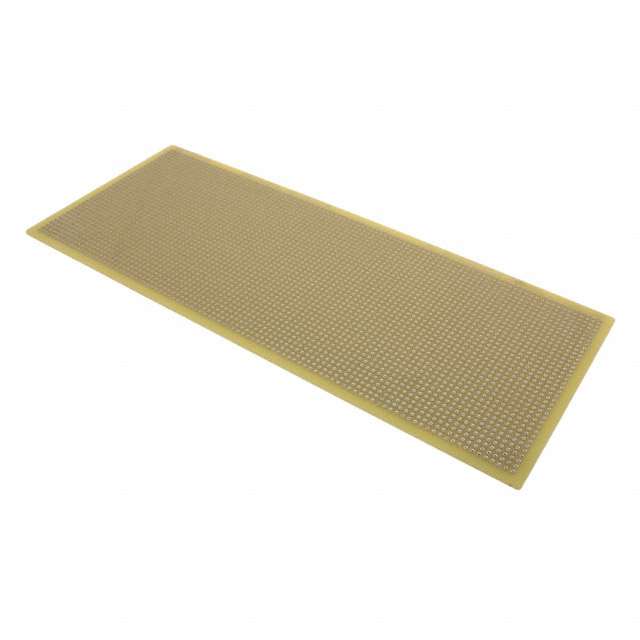

TWIN INDUSTRIES 8000-410	0.037 in	0.94 mm	Breadboard General Purpose	1.57 mm	0.062 "	0.0625 in	10 in	4 "	254 mm	101.6 mm	Pad Per Hole (Round)	0.1 "	2.54 mm

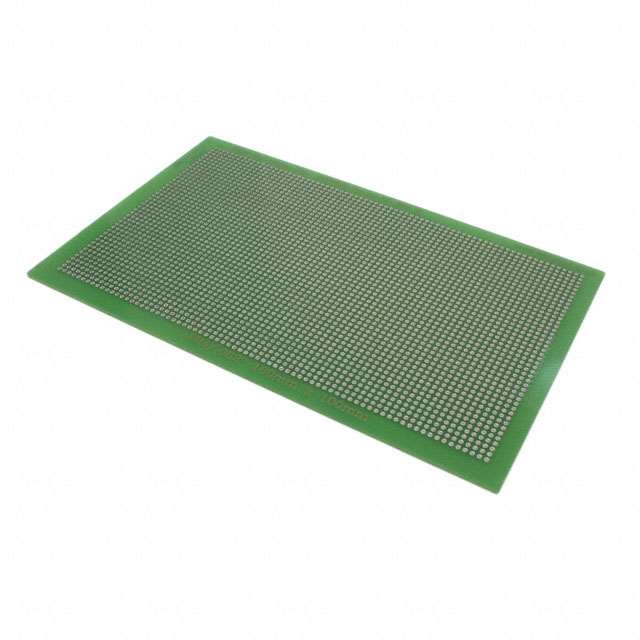

TWIN INDUSTRIES 8000-2MM-3U			Breadboard General Purpose				6.3 in	3.94 in	160.02 mm	100.08 mm	Pad Per Hole (Round)					0.079 in	2 mm
