DC2435 Series
Manufacturer: Analog Devices
Beta
⌘K

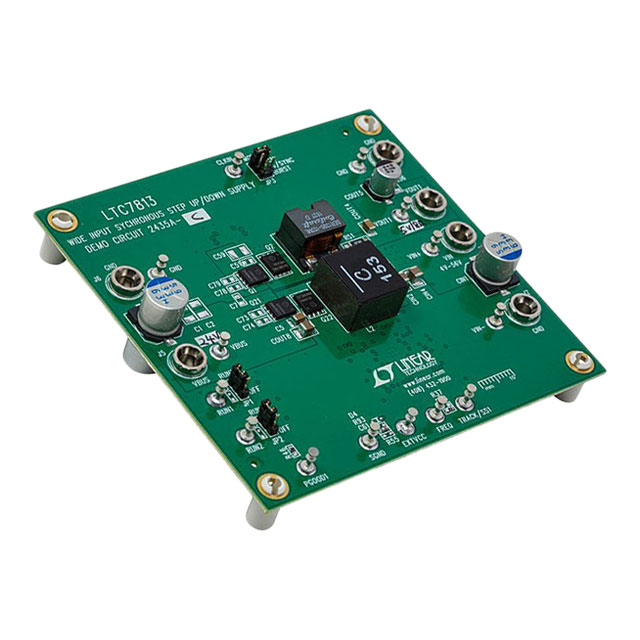

LTC7813EUH DEMO BOARD SYNC BOOST
| Part | Board Type | Voltage - Input [Max] | Voltage - Input [Min] | Supplied Contents | Frequency - Switching | Utilized IC / Part | Outputs and Type | Outputs and Type | Regulator Topology | Main Purpose | Voltage - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices | Fully Populated | 56 VDC | 4 V | Board(s) | 200 kHz | LTC7813EUH | 2 | Non-Isolated | Boost Buck | DC/DC Step Up or Down | 5 V 24 V |
 Analog Devices | Fully Populated | 56 VDC | 4 V | Board(s) | 200 kHz | LTC7813EUH | 1 | Non-Isolated | Boost Buck | DC/DC Step Up or Down | 24 V |
