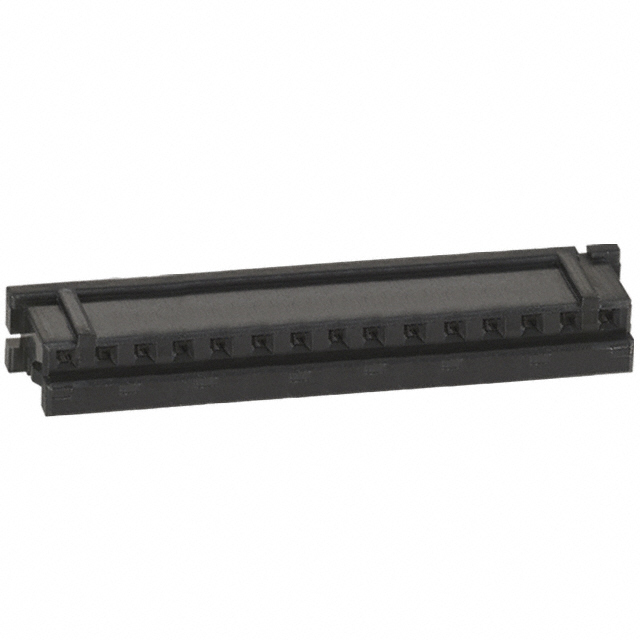

DF3-15S Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONNECTOR
| Part | Wire Gauge | Wire Type | Number of Rows | Connector Type | Color | Cable Termination | Mounting Type | Contact Finish | Pitch [x] | Pitch [x] | Features | Number of Positions | Contact Type | Note | Insulation Material | Contact Termination | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | ||||||||||||||||||
Hirose Electric Co Ltd | 26 AWG | Discrete | 1 | Receptacle | Black | IDC | Free Hanging (In-Line) | Gold | 0.079 in | 2 mm | Closed End | 15 | Female Socket | |||||
 Hirose Electric Co Ltd | 1 | Receptacle | Black | Free Hanging (In-Line) | 0.079 in | 2 mm | 15 | Female Socket | Contacts Not Included | Nylon Polyamide (PA) | Crimp | -55 C | 105 ░C | |||||
Hirose Electric Co Ltd | 28 AWG | Discrete | 1 | Receptacle | Black | IDC | Free Hanging (In-Line) | Gold | 0.079 in | 2 mm | Closed End | 15 | Female Socket | |||||
Hirose Electric Co Ltd | 28 AWG | Discrete | 1 | Receptacle | Black | IDC | Free Hanging (In-Line) | Tin | 0.079 in | 2 mm | Closed End | 15 | Female Socket |
