TPS630250 Series

Catalog

4-A SWITCH SINGLE-INDUCTOR BUCK-BOOST CONVERTER IN 3.7 MM² DSBGA PACKAGE

Part	Number of Outputs	Supplier Device Package	Function	Package / Case	Voltage - Input (Min) [Min]	Frequency - Switching	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current - Output	Voltage - Output (Max) [Max]	Topology	Output Type	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	Outputs and Type	Outputs and Type	Board Type	Supplied Contents	Main Purpose	Utilized IC / Part	Voltage - Output	Contents	Voltage - Input [Max]	Voltage - Input [Min]	Regulator Topology

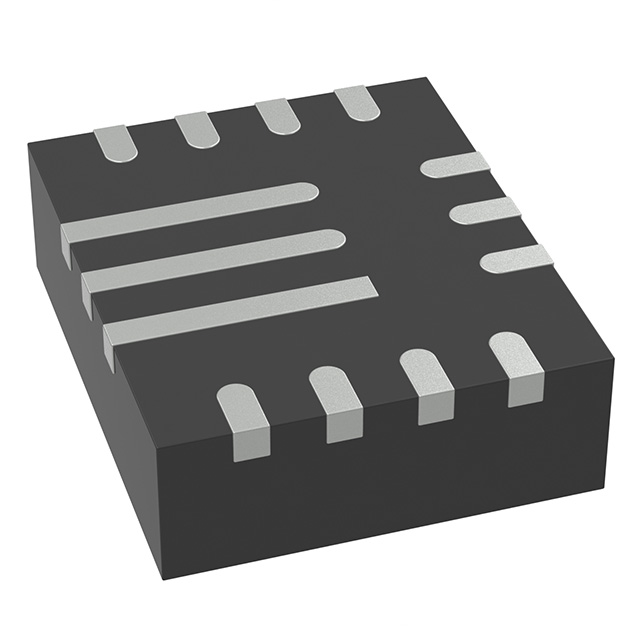

Texas Instruments TPS630250RNCT	1	14-VQFN-HR (3x2.5)	Step-Up/Step-Down	14-PowerVFQFN	2.3 V	2.5 MHz	Positive	85 C	-40 ¯C	Surface Mount	2 A 4 A	3.6 V	Buck-Boost	Adjustable	5.5 V	2.3 V
Texas Instruments TPS630250YFFT	1	20-DSBGA	Step-Up/Step-Down	20-UFBGA DSBGA	2.3 V	2.5 MHz	Positive	85 C	-40 ¯C	Surface Mount	2 A 4 A	3.6 V	Buck-Boost	Adjustable	5.5 V	2.3 V
Texas Instruments TPS630250EVM-668						2.5 MHz					2 A						1	1 Non-Isolated Output Non-Isolated	Fully Populated	Board(s)	DC/DC Step Up or Down	TPS63025x	3.3 V	Board(s)	5.5 V	2.5 V	Buck-Boost
Texas Instruments TPS630250EVM-553						2.5 MHz					2 A						1	1 Non-Isolated Output Non-Isolated	Fully Populated	Board(s)	DC/DC Step Up or Down	TPS630250	3.3 V	Board(s)	5.5 V	2.5 V	Buck-Boost
Texas Instruments TPS630250YFFR	1	20-DSBGA	Step-Up/Step-Down	20-UFBGA DSBGA	2.3 V	2.5 MHz	Positive	85 C	-40 ¯C	Surface Mount	2 A 4 A	3.6 V	Buck-Boost	Adjustable	5.5 V	2.3 V
Texas Instruments TPS630250RNCR	1	14-VQFN-HR (3x2.5)	Step-Up/Step-Down	14-PowerVFQFN	2.3 V	2.5 MHz	Positive	85 C	-40 ¯C	Surface Mount	2 A 4 A	3.6 V	Buck-Boost	Adjustable	5.5 V	2.3 V
