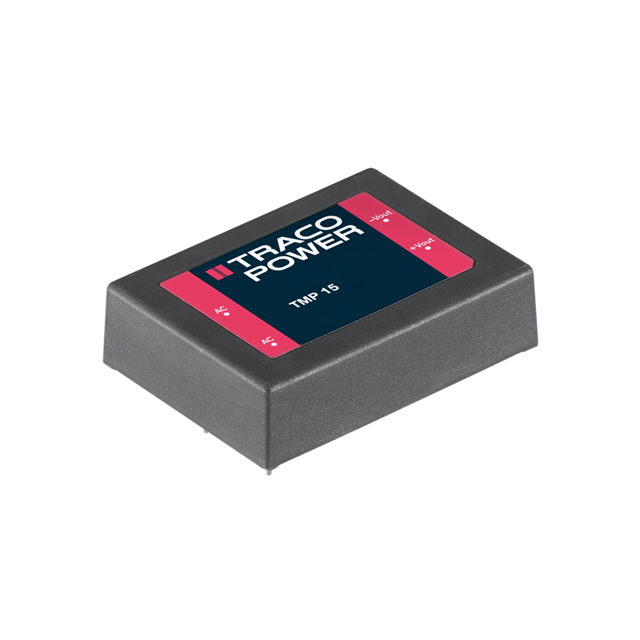

TMP 15 Series
Manufacturer: Traco Power
Beta
⌘K
AC/DC CONVERTER 12V 15W
| Part | Load Regulation | Line Regulation | Voltage - Input [Min] | Voltage - Input [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Type | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Mounting Type | Voltage - Output 1 | Current - Output (Max) [Max] | Package / Case | Efficiency | Approval Agency | Features | Number of Outputs | Applications | Power (Watts) | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | ±1% | 1 % | 85 VAC 120 VDC | 264 VAC 370 VDC | 70 °C | -25 °C | Enclosed | 0.77 in | 2.91 in | 74 mm | 54 mm | 19.5 mm | 2.13 in | Through Hole | 12 V | 1.25 A | 7-DIP Module 4 Leads | 79 % | CB CE cULus cURus | OTP SCP Universal Input | 1 | ITE (Commercial) | 15 W | |
Traco Power | 85 VAC 120 VDC | 264 VAC 370 VDC | 70 °C | -25 °C | Enclosed | 0.77 in | 2.91 in | 74 mm | 54 mm | 19.5 mm | 2.13 in | Through Hole | 5 V | 7-DIP Module 6 Leads | 72 % | CB CE cULus cURus | OTP SCP Universal Input | 2 | ITE (Commercial) | 15 W | 1.5 A 625 mA | |||
Traco Power | 85 VAC 120 VDC | 264 VAC 370 VDC | 70 °C | -25 °C | Enclosed | 0.77 in | 2.91 in | 74 mm | 54 mm | 19.5 mm | 2.13 in | Through Hole | 48 V | 310 mA | 7-DIP Module 4 Leads | 79 % | CB CE cULus cURus | OTP SCP Universal Input | 1 | ITE (Commercial) | 15 W |
