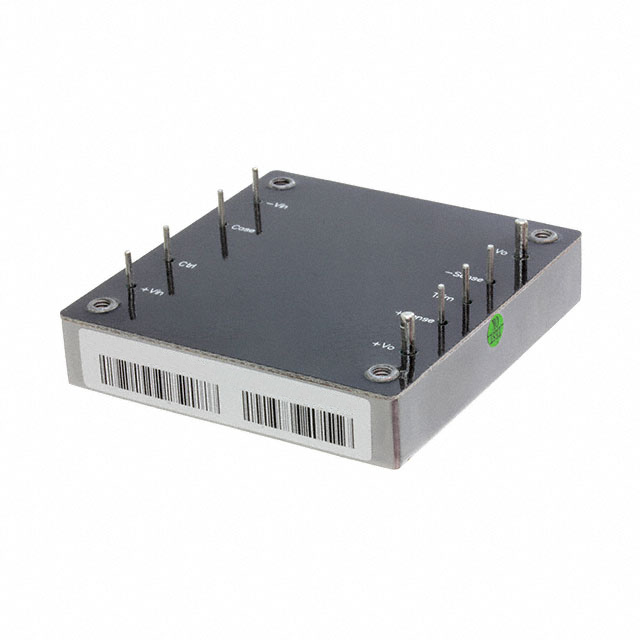

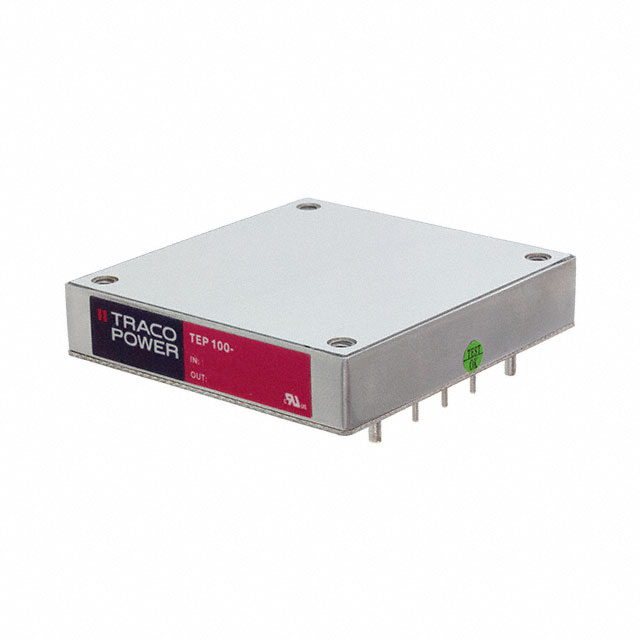

TEP 100 Series
Manufacturer: Traco Power
Beta
⌘K
DC DC CONVERTER 12V 101W
| Part | Package / Case | Efficiency | Voltage - Isolation | Number of Outputs | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Current - Output (Max) [Max] | Voltage - Input (Min) [Min] | Voltage - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Type | Features | Mounting Type | Applications | Voltage - Input (Max) [Max] | Power (Watts) | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 9-DIP Module | 90 % | 2250 VDC | 1 | 57.9 mm | 2.28 in | 2.4 in | 0.5 in | 61 mm | 12.7 mm | 8.4 A | 9 V | 12 V | 75 °C | -40 °C | Isolated Module | OTP OVP Remote On/Off SCP UVLO | Through Hole | ITE (Commercial) Railway | 36 V | 101 W | |
 Traco Power | 91 % | 2250 VDC | 1 | 61 mm | 2.4 in | 3.35 in | 1.33 in | 85.1 mm | 33.8 mm | 2.1 A | 18 V | 48 V | 75 °C | -40 °C | Enclosed | Chassis Mount | ITE (Commercial) Railway | 75 V | 101 W | CB CE cURus | ||
Traco Power | 91 % | 2250 VDC | 1 | 61 mm | 2.4 in | 3.35 in | 1.53 in | 85.1 mm | 38.9 mm | 6.7 A | 9 V | 15 V | 75 °C | -40 °C | Enclosed | Chassis Mount | ITE (Commercial) | 18 V | 101 W | |||
Traco Power | 93 % | 2250 VDC | 1 | 61 mm | 2.4 in | 3.35 in | 1.1 in | 85.1 mm | 27.9 mm | 8.4 A | 36 V | 12 V | 75 °C | -40 °C | Enclosed | Chassis Mount | ITE (Commercial) | 75 V | 101 W | |||
 Traco Power | 90 % | 2250 VDC | 1 | 61 mm | 2.4 in | 3.35 in | 1.53 in | 85.1 mm | 38.9 mm | 3.6 A | 9 V | 28 V | 75 °C | -40 °C | Enclosed | Chassis Mount | ITE (Commercial) | 18 V | 101 W | |||
 Traco Power | 9-DIP Module | 90 % | 2250 VDC | 1 | 57.9 mm | 2.28 in | 2.4 in | 0.5 in | 61 mm | 12.7 mm | 8.4 A | 18 V | 12 V | 75 °C | -40 °C | Isolated Module | OTP OVP Remote On/Off SCP UVLO | Through Hole | ITE (Commercial) Railway | 75 V | 101 W | |
Traco Power | 91 % | 2250 VDC | 1 | 61 mm | 2.4 in | 3.35 in | 1.53 in | 85.1 mm | 38.9 mm | 25 A | 36 V | 3.3 V | 75 °C | -40 °C | Enclosed | Chassis Mount | ITE (Commercial) | 75 V | 83 W | |||
Traco Power | 9-DIP Module | 90 % | 2250 VDC | 1 | 57.9 mm | 2.28 in | 2.4 in | 0.5 in | 61 mm | 12.7 mm | 3.6 A | 9 V | 28 V | 75 °C | -40 °C | Isolated Module | OTP OVP Remote On/Off SCP UVLO | Through Hole | ITE (Commercial) Railway | 36 V | 101 W | |
Traco Power | 92 % | 2250 VDC | 1 | 61 mm | 2.4 in | 3.35 in | 1.53 in | 85.1 mm | 38.9 mm | 2.1 A | 18 V | 48 V | 75 °C | -40 °C | Enclosed | Chassis Mount | ITE (Commercial) | 36 V | 101 W | |||
Traco Power | 91 % | 2250 VDC | 1 | 61 mm | 2.4 in | 3.35 in | 1.53 in | 85.1 mm | 38.9 mm | 25 A | 18 V | 3.3 V | 75 °C | -40 °C | Enclosed | Chassis Mount | ITE (Commercial) | 36 V | 83 W |
