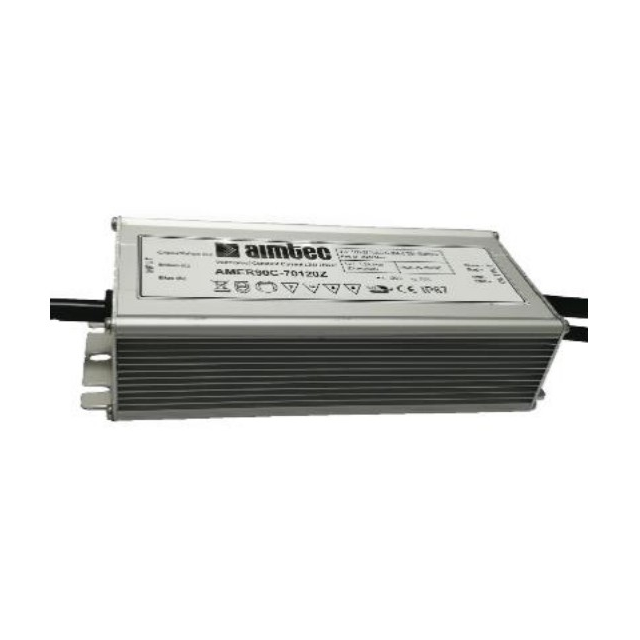

AMER90 Series
Manufacturer: aimtec
Beta
⌘K
LED DRVR CC/CV AC/DC 35-70V 1.2A
| Part | Weight | Weight | Mounting Type | Efficiency | Type | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Voltage - Output [Min] | Voltage - Output [Max] | Topology | Voltage - Input (Min) [Min] | Current - Output (Max) [Max] | Number of Outputs | Termination Style | Power (Watts) | Dimming | Features | Voltage - Input (Max) [Max] | Voltage - Isolation | Ratings | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 aimtec | 850 g | 1.874 lb | Chassis Mount | 90 % | Constant Current Voltage | 42 mm | 176 mm | 6.93 " | 1.65 " | 2.7 in | 68.7 mm | 35 V | 70 V | AC DC Converter | 90 V | 1.2 A | 1 | Wire Leads | 84 W | Analog PWM | OTP OVP SCP UVLO | 305 V | 3750 VDC | IP65 IP67 | 70 °C | -40 C |
