40-9513 Series
Manufacturer: Aries Electronics
Beta
⌘K

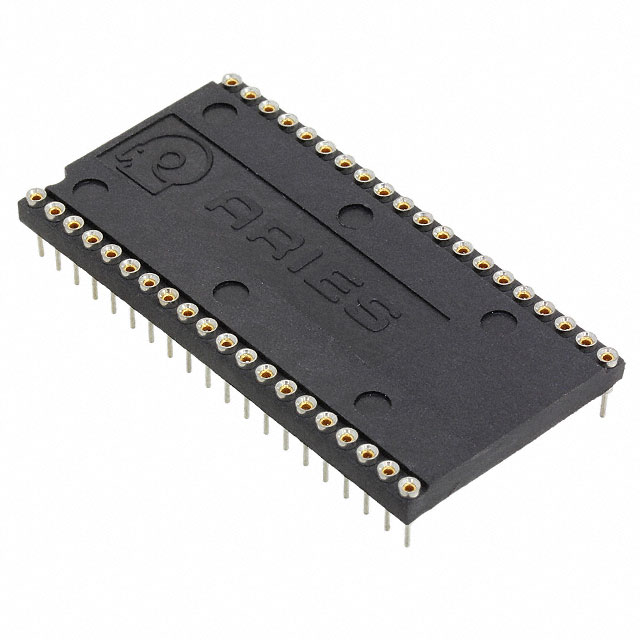

CONN IC DIP SOCKET 40POS GOLD
| Part | Current Rating (Amps) | Termination Post Length | Termination Post Length | Material Flammability Rating | Contact Finish - Post | Termination | Pitch - Post | Pitch - Post | Type | Type | Type | Contact Material - Post [custom] | Mounting Type | Contact Material - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Housing Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Features | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Number of Positions or Pins (Grid) | Contact Finish Thickness - Post | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Aries Electronics | 3 A | 0.125 in | 3.18 mm | UL94 V-0 | Gold | Solder | 0.1 in | 2.54 mm | DIP | 22.86 mm | 0.9 in | Brass | Through Hole | Beryllium Copper | -55 C | 105 ░C | Polyamide (PA46) Nylon 4/6 Glass Filled | 0.25 µm | 10 µin | Closed Frame | 0.1 " | 2.54 mm | Gold | 40 | 10 Áin | 0.25 çm |
 Aries Electronics | 3 A | 0.125 in | 3.18 mm | UL94 V-0 | Tin | Solder | 0.1 in | 2.54 mm | DIP | 22.86 mm | 0.9 in | Brass | Through Hole | Beryllium Copper | -55 C | 105 ░C | Polyamide (PA46) Nylon 4/6 Glass Filled | 0.25 µm | 10 µin | Closed Frame | 0.1 " | 2.54 mm | Gold | 40 | 200 µin | 5.08 µm |
