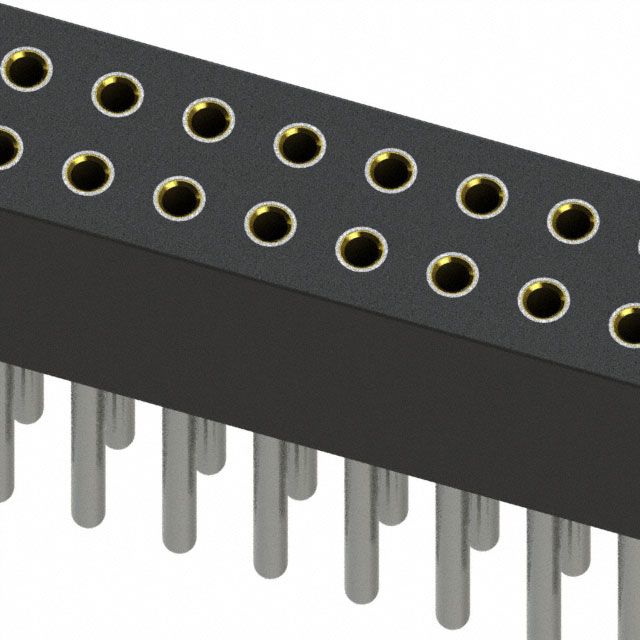

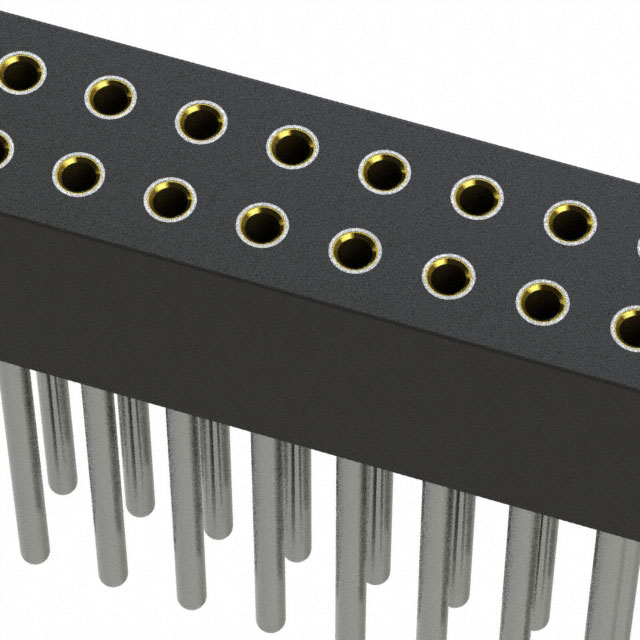

853-41 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

Catalog

CONN RCPT 40POS 0.05 GOLD SMD

...

Part	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Contact Shape	Pitch - Mating	Pitch - Mating	Number of Positions	Number of Rows [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Current Rating (Amps)	Number of Positions Loaded	Contact Finish - Post	Mounting Type	Connector Type	Contact Type	Insulation Color	Contact Finish - Mating	Termination	Fastening Type	Contact Length - Post	Contact Length - Post	Contact Length - Post [x]	Contact Length - Post [x]
Mill-Max Manufacturing Corp. 853-41-040-30-001000	Beryllium Copper	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	1.27 mm	0.05 in	40	2	0.25 µm	10 µin	-55 C	125 °C	5.25 mm	0.207 in	0.05 in	1.27 mm	UL94 V-0	3 A	All	Tin	Surface Mount	Receptacle	Female Socket	Black	Gold	Solder	Push-Pull
Mill-Max Manufacturing Corp. 853-41-052-10-021000	Brass Alloy	200 µin	5.08 µm	Nylon 4/6 Polyamide (PA46)	Circular	1.27 mm	0.05 in	52	2	0.25 µm	10 µin			4.01 mm	0.158 in	0.05 in	1.27 mm			All	Tin	Through Hole	Receptacle	Female Socket	Black	Gold	Solder	Push-Pull	0.299 in	7.6 mm
Mill-Max Manufacturing Corp. 853-41-020-10-001000	Beryllium Copper	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	1.27 mm	0.05 in	20	2	0.25 µm	10 µin	-55 C	125 °C	4.01 mm	0.158 in	0.05 in	1.27 mm	UL94 V-0	3 A	All	Tin	Through Hole	Receptacle	Female Socket	Black	Gold	Solder	Push-Pull	0.102 in	2.6 mm
Mill-Max Manufacturing Corp. 853-41-076-10-011000	Brass Alloy	200 µin	5.08 µm	Nylon 4/6 Polyamide (PA46)	Circular	1.27 mm	0.05 in	76	2	0.25 µm	10 µin			4.01 mm	0.158 in	0.05 in	1.27 mm			All	Tin	Through Hole	Receptacle	Female Socket	Black	Gold	Solder	Push-Pull			5.05 mm	0.199 in
Mill-Max Manufacturing Corp. 853-41-042-10-021000	Brass Alloy	200 µin	5.08 µm	Nylon 4/6 Polyamide (PA46)	Circular	1.27 mm	0.05 in	42	2	0.25 µm	10 µin			4.01 mm	0.158 in	0.05 in	1.27 mm			All	Tin	Through Hole	Receptacle	Female Socket	Black	Gold	Solder	Push-Pull	0.299 in	7.6 mm

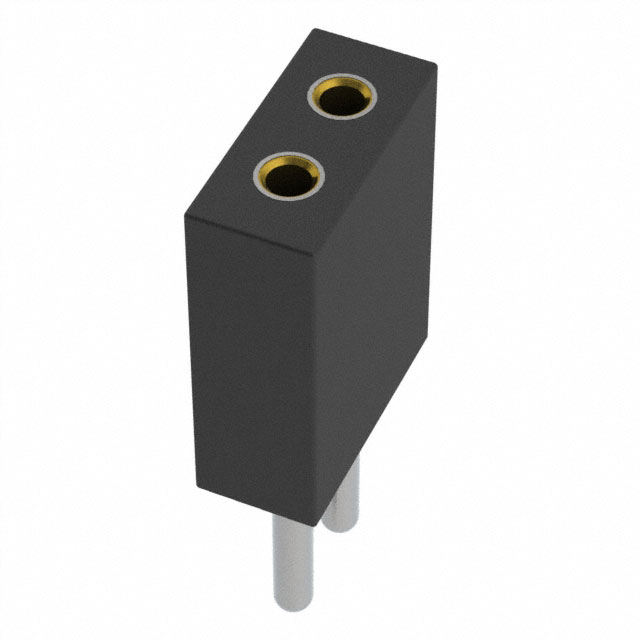

Mill-Max Manufacturing Corp. 853-41-002-10-001000	Beryllium Copper	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular			2	2	0.25 µm	10 µin	-55 C	125 °C	4.01 mm	0.158 in	0.05 in	1.27 mm	UL94 V-0	3 A	All	Tin	Through Hole	Receptacle	Female Socket	Black	Gold	Solder	Push-Pull	0.102 in	2.6 mm

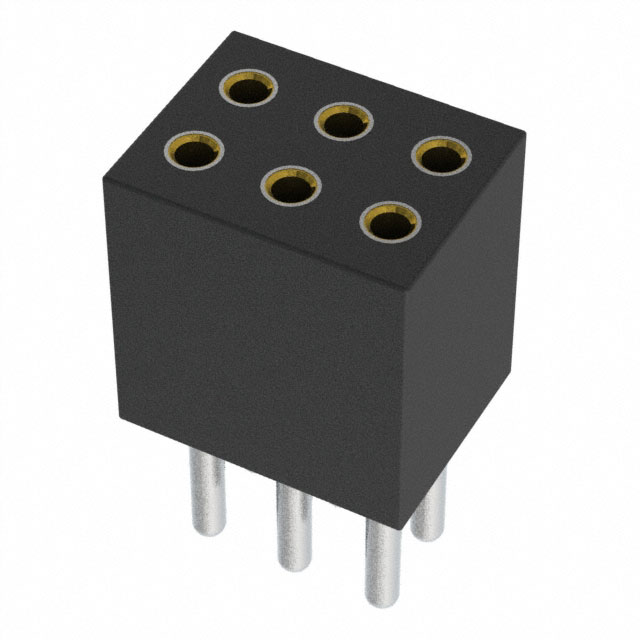

Mill-Max Manufacturing Corp. 853-41-006-10-001000	Beryllium Copper	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	1.27 mm	0.05 in	6	2	0.25 µm	10 µin	-55 C	125 °C	4.01 mm	0.158 in	0.05 in	1.27 mm	UL94 V-0	3 A	All	Tin	Through Hole	Receptacle	Female Socket	Black	Gold	Solder	Push-Pull	0.102 in	2.6 mm

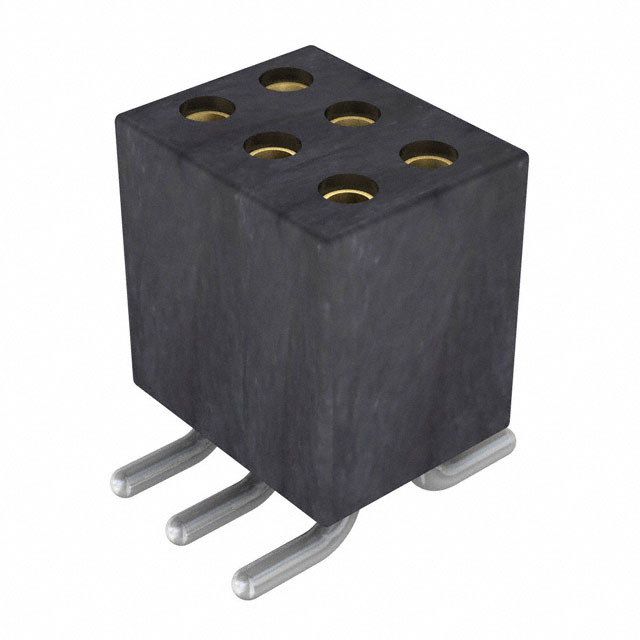

Mill-Max Manufacturing Corp. 853-41-006-30-001000	Beryllium Copper	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	1.27 mm	0.05 in	6	2	0.25 µm	10 µin	-55 C	125 °C	5.25 mm	0.207 in	0.05 in	1.27 mm	UL94 V-0	3 A	All	Tin	Surface Mount	Receptacle	Female Socket	Black	Gold	Solder	Push-Pull
Mill-Max Manufacturing Corp. 853-41-096-10-021000	Brass Alloy	200 µin	5.08 µm	Nylon 4/6 Polyamide (PA46)	Circular	1.27 mm	0.05 in	96	2	0.25 µm	10 µin			4.01 mm	0.158 in	0.05 in	1.27 mm			All	Tin	Through Hole	Receptacle	Female Socket	Black	Gold	Solder	Push-Pull	0.299 in	7.6 mm
Mill-Max Manufacturing Corp. 853-41-020-10-021000	Brass Alloy	200 µin	5.08 µm	Nylon 4/6 Polyamide (PA46)	Circular	1.27 mm	0.05 in	20	2	0.25 µm	10 µin			4.01 mm	0.158 in	0.05 in	1.27 mm			All	Tin	Through Hole	Receptacle	Female Socket	Black	Gold	Solder	Push-Pull	0.299 in	7.6 mm
