C0743 Series

Catalog

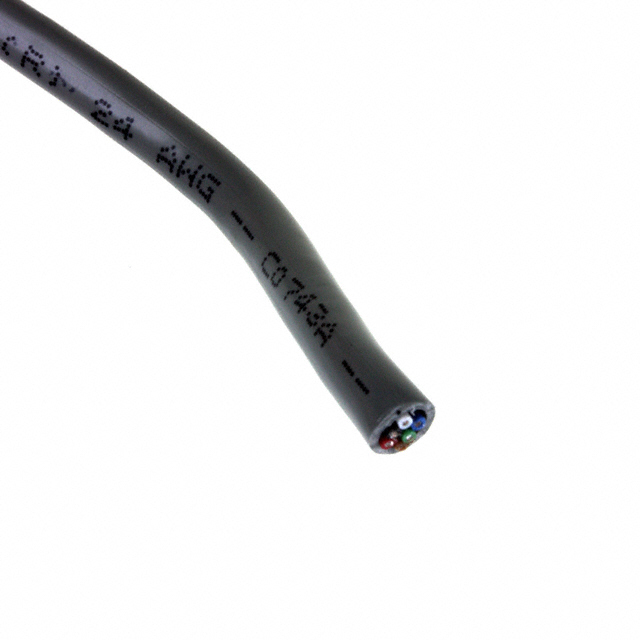

CABLE 6COND 24AWG GRAY SHLD

Part	Conductor Material	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Operating Temperature [Max]	Operating Temperature [Min]	Shield Coverage	Shield Material	Features	Jacket (Insulation) Material	Conductor Insulation	Voltage	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Usage	Jacket Color	Length	Length
Prysmian Group C0743A.46.10	Copper Tinned	24 AWG	0.813 mm	0.032 in	Foil	5.11 mm	0.201 in	Multi-Conductor	80 °C	-20 ░C	100 %	Flexfoil®	Drain Wire	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	300 VDC	6	7	32 AWG	Computer	Gray
Prysmian Group C0743A.30.10	Copper Tinned	24 AWG	0.813 mm	0.032 in	Foil	5.11 mm	0.201 in	Multi-Conductor	80 °C 105 ░C	-20 ░C	100 %	Flexfoil®	Drain Wire	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	300 VDC	6	7	32 AWG	Computer	Gray	304.8 m	1000 ft
Prysmian Group C0743A.46.10	Copper Tinned	24 AWG	0.813 mm	0.032 in	Foil	5.11 mm	0.201 in	Multi-Conductor	105 ░C	-20 ░C			Drain Wire	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	300 VDC	6	7	32 AWG	Computer	Gray
Prysmian Group C0743A.41.10	Copper Tinned	24 AWG	0.813 mm	0.032 in	Foil	5.11 mm	0.201 in	Multi-Conductor	105 ░C	-20 ░C			Drain Wire	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	300 VDC	6	7	32 AWG	Computer	Gray	15.24 m 304.8 m	50 ft 1000 ft
Prysmian Group C0743A.41.10	Copper Tinned	24 AWG	0.813 mm	0.032 in	Foil	5.11 mm	0.201 in	Multi-Conductor	80 °C	-20 ░C	100 %	Flexfoil®	Drain Wire	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	300 VDC	6	7	32 AWG	Computer	Gray	15.24 m 304.8 m	50 ft 1000 ft
