06025SA Series

Catalog

FAN AXIAL 60X25MM 12VDC WIRE

Part	Lifetime @ Temp.	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Material - Frame	Size / Dimension [z]	Size / Dimension [x]	Termination	Weight	Weight	Fan Type	Operating Temperature [Max]	Operating Temperature [Min]	Width [y]	Bearing Type	Voltage - Rated	Current Rating (Amps)	Features	RPM	Power (Watts)	Static Pressure	Static Pressure	Noise	Air Flow	Air Flow
NMB TECHNOLOGIES 06025SA-12P-AA-00	100000 Hrs	Plastic	13.8 VDC	6 VDC	Plastic	60 mm	60 mm	2 Wire Leads	0.123 lb	55.79 g	Tubeaxial	70 °C	-10 °C	25 mm	Ball	12 VDC
NMB TECHNOLOGIES 06025SA-24P-AA-00	100000 Hrs	Plastic	27.6 VDC	12	Plastic	60 mm	60 mm	2 Wire Leads	0.123 lb	55.79 g	Tubeaxial	70 °C	-10 °C	25 mm	Ball	24 VDC

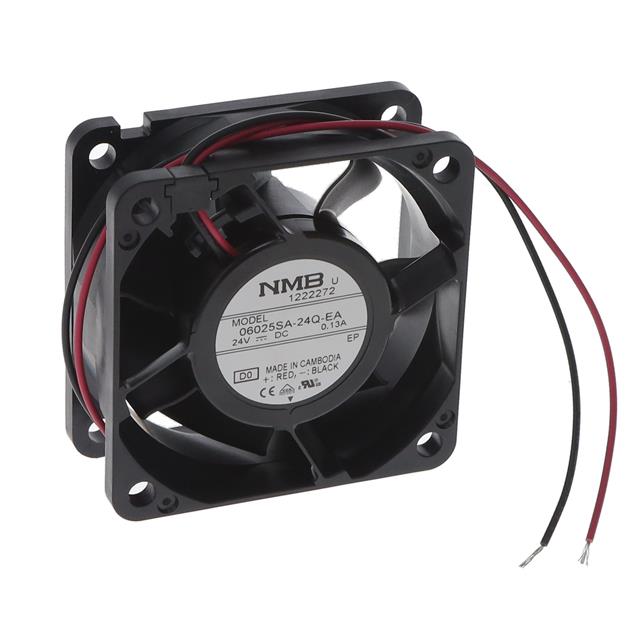

NMB TECHNOLOGIES 06025SA-24Q-EA-D0	40000 Hrs	Plastic	27.6 VDC	12	Plastic	60 mm	60 mm	2 Wire Leads			Tubeaxial	70 °C	-10 °C	25 mm	Ball	24 VDC	100 mA	Auto Restart	5300 RPM	2.4 W	79.7 Pa	0.32 in H2O	35 dB	0.75 mł/min	26.8 CFM
NMB TECHNOLOGIES 06025SA-12P-EL-00	100000 Hrs	Plastic	13.8 VDC	6 VDC	Plastic	60 mm	60 mm	3 Wire Leads	0.123 lb	55.79 g	Tubeaxial	70 °C	-10 °C	25 mm	Ball	12 VDC		Locked Rotor Sensor
NMB TECHNOLOGIES 06025SA-12P-AL-00	100000 Hrs	Plastic	13.8 VDC	6 VDC	Plastic	60 mm	60 mm	3 Wire Leads	0.123 lb	55.79 g	Tubeaxial	70 °C	-10 °C	25 mm	Ball	12 VDC		Locked Rotor Sensor
NMB TECHNOLOGIES 06025SA-24P-EA-00	100000 Hrs	Plastic	27.6 VDC	12	Plastic	60 mm	60 mm	2 Wire Leads	0.123 lb	55.79 g	Tubeaxial	70 °C	-10 °C	25 mm	Ball	24 VDC
NMB TECHNOLOGIES 06025SA-12Q-EL-00	100000 Hrs	Plastic	13.8 VDC	6 VDC	Plastic	60 mm	60 mm	3 Wire Leads	0.123 lb	55.79 g	Tubeaxial	70 °C	-10 °C	25 mm	Ball	12 VDC		Locked Rotor Sensor
NMB TECHNOLOGIES 06025SA-24R-EA-00	100000 Hrs	Plastic	27.6 VDC	12	Plastic	60 mm	60 mm	2 Wire Leads	0.123 lb	55.79 g	Tubeaxial	70 °C	-10 °C	25 mm	Ball	24 VDC
NMB TECHNOLOGIES 06025SA-12L-ET-D0						60 mm	60 mm	3 Wire Leads			Tubeaxial	70 °C	-10 °C	25 mm	Ball	12 VDC		Auto Restart Speed Sensor (Tach)	3500 RPM	960 mW	34.9 Pa	0.14 in H2O	22.5 dB	0.473 mł/min	16.9 CFM
NMB TECHNOLOGIES 06025SA-12Q-EL-D0						60 mm	60 mm	3 Wire Leads			Tubeaxial	70 °C	-10 °C	25 mm	Ball	12 VDC		Auto Restart Locked Rotor Sensor	5300 RPM	3.4 W	79.7 Pa	0.32 in H2O	35 dB	0.75 mł/min	26.8 CFM
