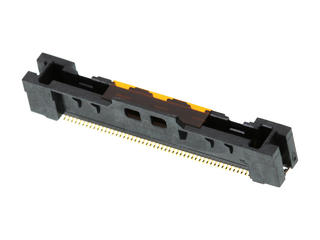

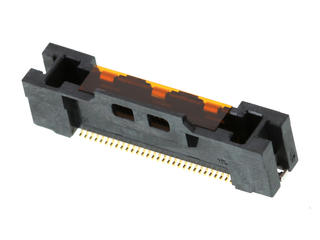

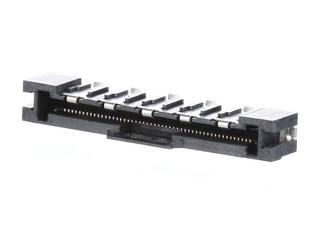

0.50mm Pitch Easy-On FFC/FPC-to-Board Connector, Receptacle Housing Assembly, Vertical, Surface Mount, with Grounding Terminals, Separated Gold (Au) Plating, 40 Circuits
0.50mm Pitch Easy-On FFC/FPC-to-Board Connector, Receptacle Housing Assembly, Vertical, Surface Mount, with Grounding Terminals, Separated Gold (Au) Plating, 40 Circuits
0.50mm Pitch Easy-On FFC/FPC-to-Board Connector, Receptacle Housing Assembly, Vertical, Surface Mount, with Grounding Terminals, Separated Gold (Au) Plating, 40 Circuits
| Part | Mating Cycles | Current Rating (Amps) | Housing Color | Material Flammability Rating | Height Above Board [z] | Height Above Board [z] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Number of Positions | Termination | Contact Finish | Features | Locking Feature | Connector/Contact Type | Flat Flex Type | Contact Material | Pitch | Pitch | Housing Material | FFC, FCB Thickness | Cable End Type | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 20 | 0.5 A | Black | UL94 V-0 | 5.95 mm | 0.234 in | Surface Mount | 85 °C | -40 C | 50 V | 30 | Solder | Gold | Board Guide Solder Retention | Slide Lock | Contacts Vertical - 1 Sided | FFC | Copper Alloy | 0.02 " | 0.5 mm | Glass Filled Liquid Crystal Polymer (LCP) | 0.3 mm | Notched | ||
 Molex | UL94 V-0 | 5.95 mm | 0.234 in | Surface Mount | 50 | Solder | Tin Bismuth | Board Guide Solder Retention | Slide Lock | Contacts Vertical - 1 Sided | FFC | Copper Alloy | 0.02 " | 0.5 mm | Glass Filled Liquid Crystal Polymer (LCP) | 0.3 mm | Notched | ||||||||
 Molex | UL94 V-0 | 5.95 mm | 0.234 in | Surface Mount | 85 °C | -40 C | 50 V | 50 | Solder | Gold | Board Guide Solder Retention | Slide Lock | Contacts Vertical - 1 Sided | FFC | Copper Alloy | 0.02 " | 0.5 mm | Glass Filled Liquid Crystal Polymer (LCP) | 0.3 mm | Notched | |||||
 Molex | Black | UL94 V-0 | 5.95 mm | 0.234 in | Surface Mount | 40 | Solder | Tin Bismuth | Board Guide Solder Retention | Slide Lock | Contacts Vertical - 1 Sided | FFC | Copper Alloy | 0.02 " | 0.5 mm | Glass Filled Liquid Crystal Polymer (LCP) | 0.3 mm | Notched | |||||||
 Molex | 20 | 0.5 A | Black | UL94 V-0 | 5.95 mm | 0.234 in | Surface Mount | 85 °C | -40 C | 50 V | 80 | Solder | Gold | Board Guide Solder Retention | Slide Lock | Contacts Vertical - 1 Sided | FFC | Copper Alloy | 0.02 " | 0.5 mm | Glass Filled Liquid Crystal Polymer (LCP) | 0.3 mm | Notched | ||
 Molex | UL94 V-0 | 5.95 mm | 0.234 in | Surface Mount | 105 ░C | -40 C | 50 V | 40 | Solder | Gold | Board Guide Solder Retention | Slide Lock | Contacts Vertical - 1 Sided | FFC | Copper Alloy | 0.02 " | 0.5 mm | Glass Filled Liquid Crystal Polymer (LCP) | 0.3 mm | Notched | |||||
 Molex | 20 | 0.5 A | Black | UL94 V-0 | 5.95 mm | 0.234 in | Surface Mount | 85 °C | -40 C | 50 V | 50 | Solder | Gold | Board Guide Solder Retention | Slide Lock | Contacts Vertical - 1 Sided | FFC | Phosphor Bronze | 0.02 " | 0.5 mm | Glass Filled Liquid Crystal Polymer (LCP) | 0.3 mm | Notched | 1 Ám | 39.4 Áin |
 Molex | UL94 V-0 | 5.95 mm | 0.234 in | Surface Mount | 85 °C | -40 C | 50 V | 30 | Solder | Gold | Board Guide Solder Retention | Slide Lock | Contacts Vertical - 1 Sided | FFC | Phosphor Bronze | 0.02 " | 0.5 mm | Glass Filled Liquid Crystal Polymer (LCP) | 0.3 mm | Notched |
