MCACL120 Series

Catalog

INTERFACE

Part	Power Dissipation (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Drive Voltage (Max Rds On, Min Rds On)	FET Type	Package / Case	Drain to Source Voltage (Vdss)	Supplier Device Package	Current - Continuous Drain (Id) @ 25°C	Vgs(th) (Max) @ Id	Mounting Type	Gate Charge (Qg) (Max) @ Vgs [Max]	Input Capacitance (Ciss) (Max) @ Vds	Technology	Rds On (Max) @ Id, Vgs	Vgs (Max)

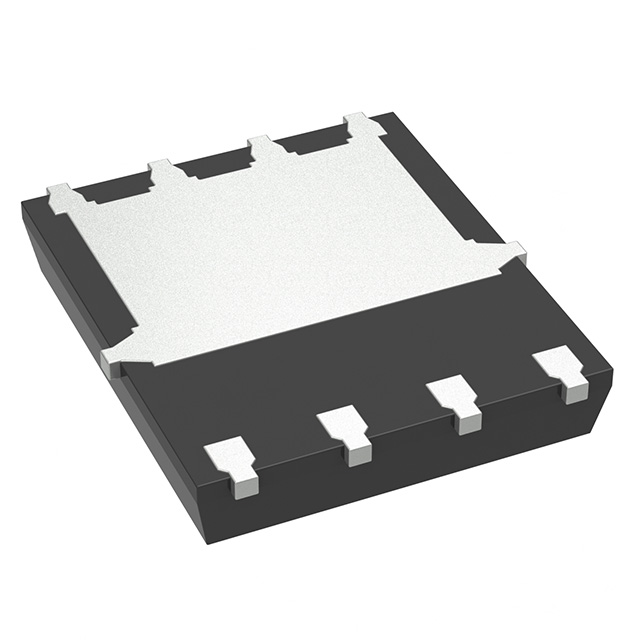

Micro Commercial Components MCACL120N10YA-TP	116 W	-55 °C	150 °C	10 V	N-Channel	8-PowerTDFN	100 V	DFN5060	120 A	2.5 V	Surface Mount	65 nC	4400 pF	MOSFET (Metal Oxide)	4 mOhm	20 V
Micro Commercial Components MCACL120N10Y-TP	108 W	-55 °C	150 °C	10 V	N-Channel	8-PowerTDFN	100 V	DFN5060	120 A	4 V	Surface Mount	70 nC	4400 pF	MOSFET (Metal Oxide)	4.2 mOhm	20 V
