DF1-10P Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN HEADER VERT 10POS 2.5MM
| Part | Termination | Number of Positions Loaded | Fastening Type | Contact Length - Mating | Contact Length - Mating | Contact Length - Post | Contact Length - Post | Insulation Height [z] | Insulation Height [z] | Connector Type | Contact Finish - Post | Voltage Rating | Insulation Color | Shrouding | Mounting Type | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Current Rating (Amps) | Insulation Material | Contact Material | Number of Rows | Overall Contact Length | Overall Contact Length | Number of Positions | Style | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Shape | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Insulation Height [custom] | Insulation Height [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

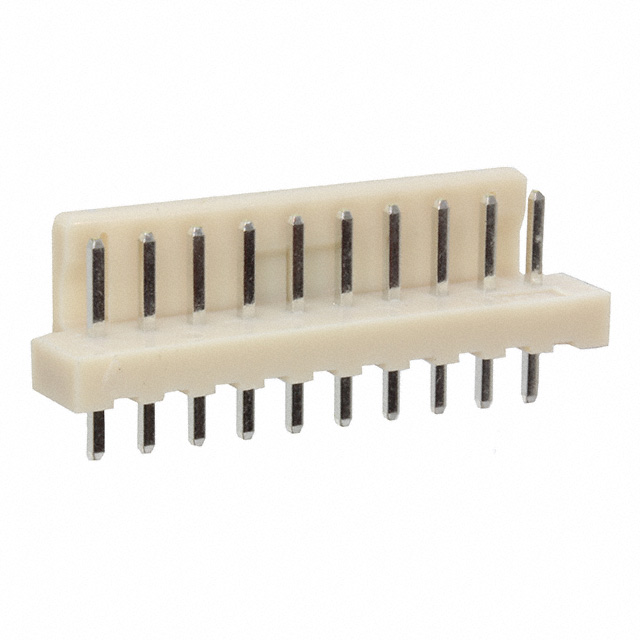

 Hirose Electric Co Ltd | Solder | All | Friction Lock | 0.177 in | 4.5 mm | 0.118 in | 3 mm | 7.5 mm | 0.295 in | Header | Tin | 250 V | Brown | Shrouded - 1 Wall | Through Hole | 2.5 mm | 0.098 in | UL94 V-0 | 3 A | Nylon Polyamide (PA) | Brass | 1 | 10 mm | 0.394 in | 10 | Board to Cable/Wire | Male Pin | 85 °C | -30 ░C | Square | 39.4 µin | 1 µm | ||

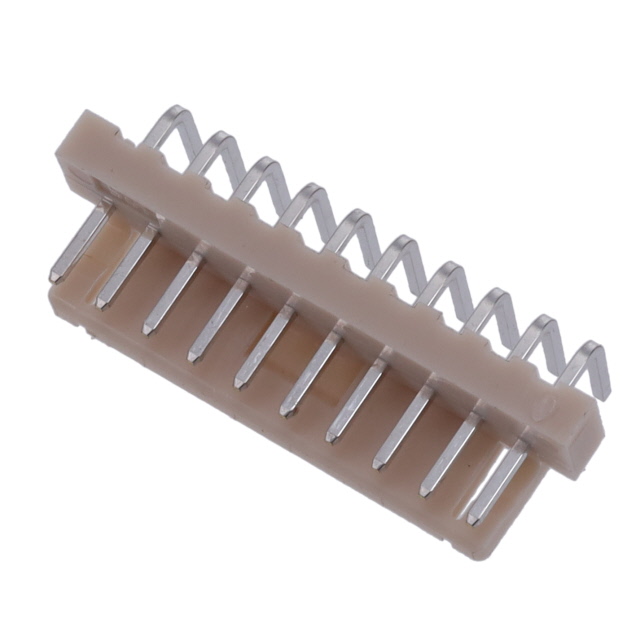

 Hirose Electric Co Ltd | Solder | All | Friction Lock | 0.177 in | 4.5 mm | 0.118 in | 3 mm | Header | Tin | 250 V | Brown | Shrouded - 1 Wall | Right Angle Through Hole | 2.5 mm | 0.098 in | UL94 V-0 | 3 A | Nylon Polyamide (PA) | Brass | 1 | 10 | Board to Cable/Wire | Male Pin | 85 °C | -30 ░C | Square | 39.4 µin | 1 µm | 0.236 " | 6 mm |
