AD7792 Series
Manufacturer: Analog Devices
Beta
⌘K

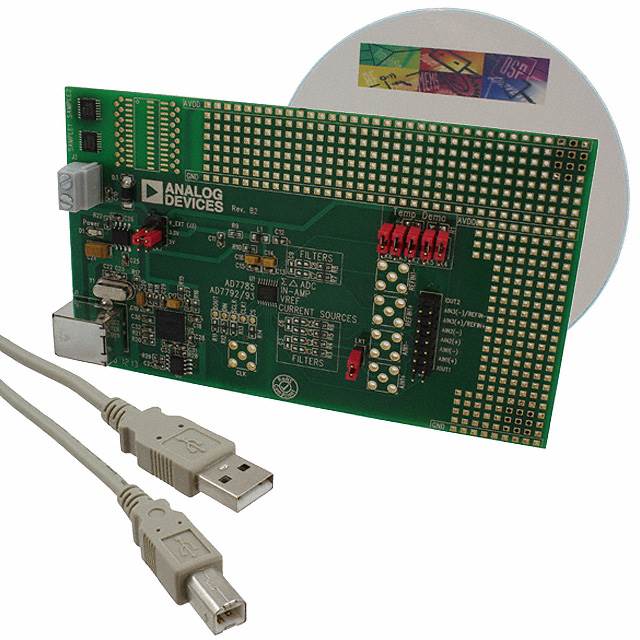

BOARD EVALUATION FOR AD7792
| Part | Utilized IC / Part | Input Range | Power (Typ) @ Conditions | Sampling Rate (Per Second) | Number of Bits | Number of A/D Converters | Supplied Contents | Data Interface | Features | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Configuration | Supplier Device Package | Voltage - Supply, Analog [Min] | Voltage - Supply, Analog [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Architecture | Number of Inputs | Mounting Type | Input Type | Reference Type | Package / Case [x] | Package / Case | Package / Case [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices | AD7792 | ±VREF/gain | 2.5 mW | 470 Per Second | 16 | 1 | Board(s) | Serial | |||||||||||||||||
 Analog Devices | 470 Per Second | 16 | 1 | DSP SPI | PGA | 5.25 V | 2.7 V | MUX-ADC | 16-TSSOP | 2.7 V | 5.25 V | -40 °C | 105 ░C | Sigma-Delta | 3 | Surface Mount | Differential | External Internal | 0.173 in | 16-TSSOP | 4.4 mm |
