GS-R24F Series

Catalog

DC DC CONVERTER 1.235-5.5V

Part	Mounting Type	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Voltage - Output 1 [Min] [custom]	Voltage - Output 1 [Max] [custom]	Type	Voltage - Input (Min) [Min]	Efficiency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Input (Max) [Max]	Applications	Number of Outputs	Features

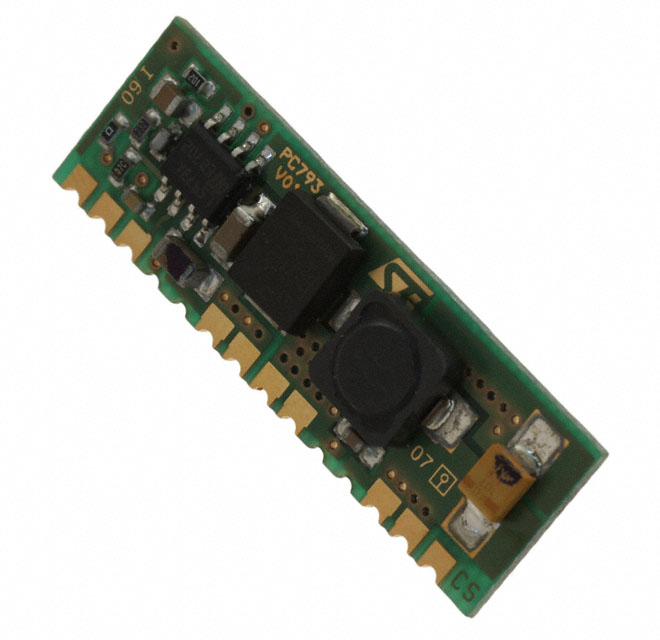

STMicroelectronics GS-R24FS0001.8	Surface Mount	1.8 A	85 °C	-25 °C	10-SMD Module	1.235 V	5.5 V	Non-Isolated PoL Module	16 V	83 %	0.5 in	4.5 mm	1.52 in	0.18 in	38.7 mm	12.7 mm	35 V	ITE (Commercial)	1

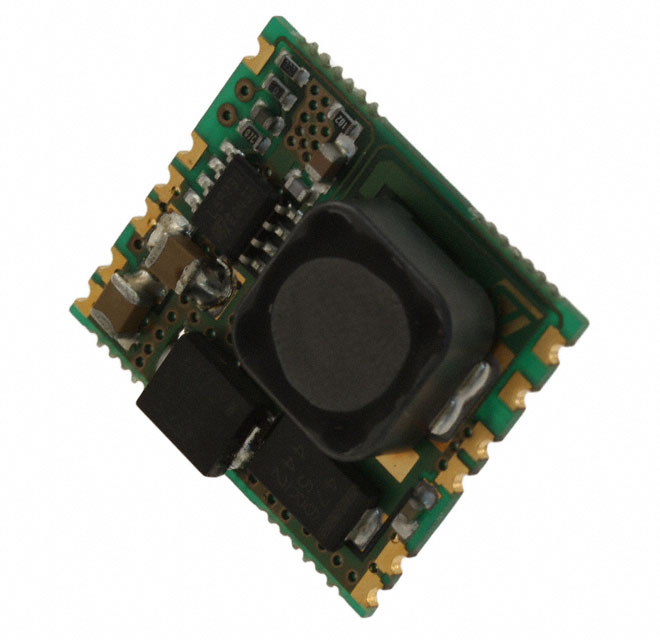

STMicroelectronics GS-R24F0002.0	Surface Mount	2 A	85 °C	-25 °C	12-SMD Module	1.235 V	5.5 V	Non-Isolated PoL Module	16 V	85 %		0.89 in 22.6 mm			1.05 " 26.7 mm	0.28 " 7 mm	35 V	ITE (Commercial)	1	OCP OTP OVP Remote On/Off

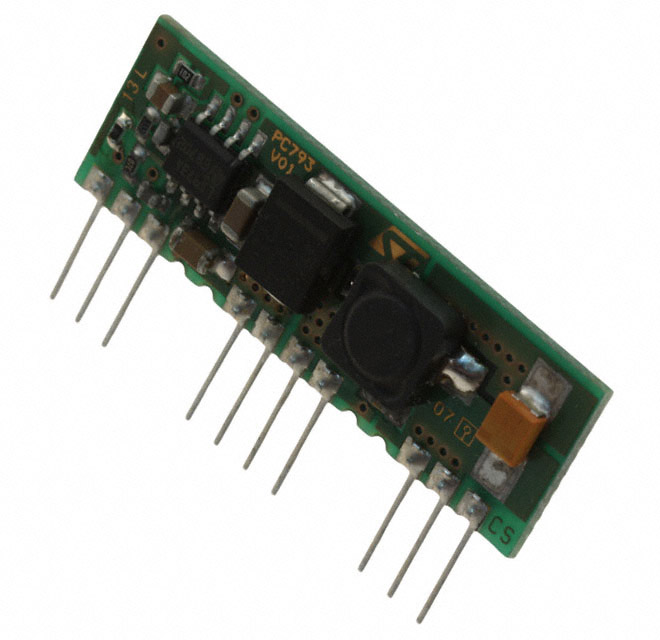

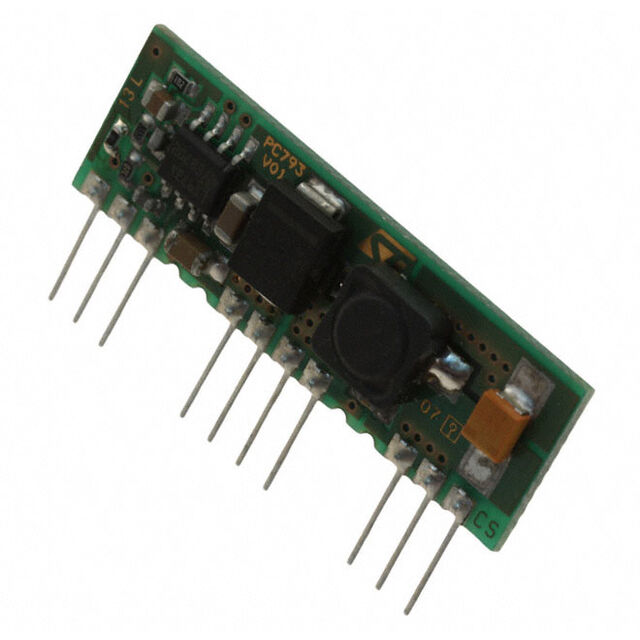

STMicroelectronics GS-R24FV0001.8	Through Hole	1.8 A	85 °C	-25 °C	10-SIP Module	1.235 V	5.5 V	Non-Isolated PoL Module	16 V	83 %	0.5 in	4.5 mm	1.52 in	0.18 in	38.7 mm	12.7 mm	35 V	ITE (Commercial)	1
