AZEV132 Series
Manufacturer: American Zettler
Beta
⌘K

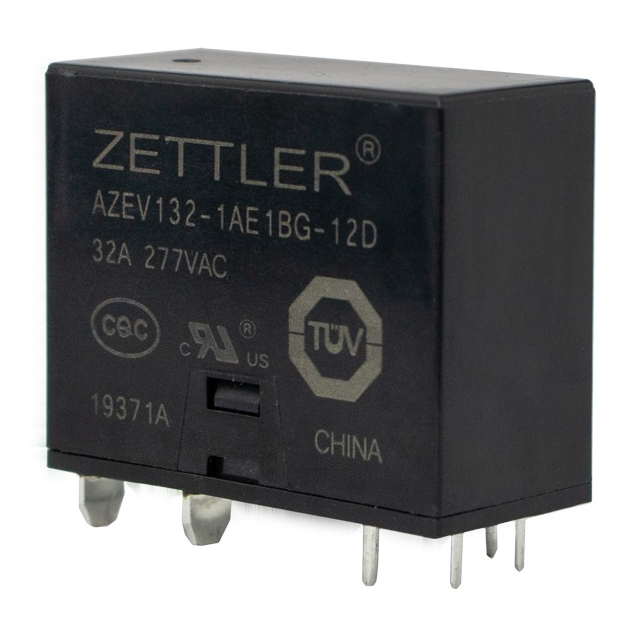

RELAY EV CHARGING SPST 32A 24V
| Part | Coil Resistance | Coil Voltage | Must Release Voltage | Relay Type | Coil Type | Termination Style | Contact Rating (Current) | Coil Insulation | Release Time | Contact Form | Coil Current | Must Operate Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Operate Time | Contact Material | Features | Switching Voltage [Max] | Approval Agency | Load - Max Switching [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 American Zettler | 372 Ohms | 24 VDC | 1.2 VDC | EV Charging | Non Latching | PC Pin | 32 A | Class F | 10 ms | SPST-NO (1 Form A) | 64.5 mA | 18 VDC | 85 °C | -40 C | Through Hole | 30 ms | Gold (Au) Silver Nickel (AgNi) Silver Tin Oxide (AgSnO) | Contact Weld Detection | 400 VAC | CQC cURus TUV | 12800 VA |
American Zettler | 93 Ohms | 12 VDC | 0.6 VDC | EV Charging | Non Latching | PC Pin | 32 A | Class F | 10 ms | SPST-NO (1 Form A) | 129 mA | 9 VDC | 85 °C | -40 C | Through Hole | 30 ms | Gold (Au) Silver Nickel (AgNi) Silver Tin Oxide (AgSnO) | Contact Weld Detection | 400 VAC | CQC cURus TUV | 12800 VA |
 American Zettler | 5 VDC | 0.25 VDC | EV Charging | Non Latching | PC Pin | 32 A | Class F | 10 ms | SPST-NO (1 Form A) | 309.6 mA | 3.75 VDC | 85 °C | -40 C | Through Hole | 30 ms | Gold (Au) Silver Nickel (AgNi) | Contact Weld Detection | 400 VAC | CQC cURus TUV | 12800 VA |
