ADG824 Series

0.5 Ω CMOS 1.65 V to 3.6 V Dual SPDT/2:1 Mux in Mini LFCSP Package

Catalog

0.5 Ω CMOS 1.65 V to 3.6 V Dual SPDT/2:1 Mux in Mini LFCSP Package

Part	Mounting Type	-3db Bandwidth	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Current - Leakage (IS(off)) (Max)	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Switch Circuit	Package / Case	On-State Resistance (Max) [Max]	Multiplexer/Demultiplexer Circuit	Channel-to-Channel Matching (ΔRon)	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Charge Injection
Analog Devices ADG824BCPZ-REEL7	Surface Mount	90 MHz	1.65 V	3.6 V	25 pF	25 pF	200 pA	2	85 °C	-40 °C	SPDT	10-UFQFN CSP	800 mOhm	2:1	3 mOhm	1.3	1.6	10-LFCSP-UQ	9.5 ns	7.7 ns	27 pC

Catalog

0.5 Ω CMOS 1.65 V to 3.6 V Dual SPDT/2:1 Mux in Mini LFCSP Package

Key Features

• 0.5 Ω typical on resistance

• 0.85 Ω maximum on resistance at 85°C

• 1.65 V to 3.6 V operation

• High current carrying capability: 300 mA continuous

• Rail-to-rail switching operation

• Fast switching times <20 ns

• Typical power consumption (<0.1 μW)

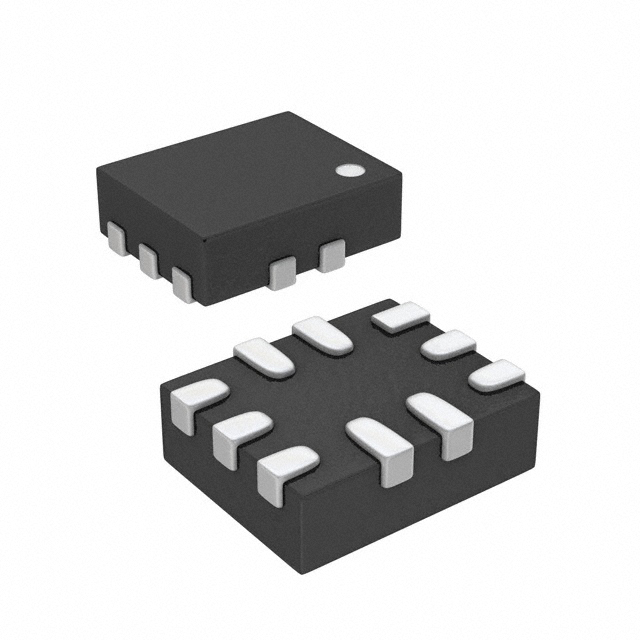

• 1.3 mm × 1.6 mm mini LFCSP package

Description

The ADG824 is a low voltage CMOS device containing two independently selectable single-pole, double throw (SPDT) switches. This device offers ultralow on resistance of less than 0.85 Ω over the full temperature range. The ADG824 is fully specified for 3.3 V, 2.5 V, and 1.8 V supply operation.Each switch conducts equally well in both directions when on, and has an input signal range that extends to the supplies. The ADG824 exhibits break-before-make switching action.The low on resistance of the ADG824 makes this device ideal for audio switching. In addition, a data rate of 180 Mbps makes the device suitable for USB low speed (1.5 Mbps) and full speed (12 Mbps) data switching.The ADG824 is available in a 1.3 mm × 1.6 mm, 10-lead mini LFCSP package.PRODUCT HIGHLIGHTS<0.85 Ω over the full temperature range of –40°C to +85°C.Single 1.65 V to 3.6 V operation.1.8 V logic compatible.High current carrying capability (300 mA continuous current at 3.3 V).Low THD + N (0.06% typical).1.3 mm × 1.6 mm mini LFCSP package.APPLICATIONSCellular phonesPDAsMP3 playersPower routingBattery-powered systemsPCMCIA cardsModemsAudio and video signal routingCommunication systems
