410-87 Series
Manufacturer: Preci-Dip
Beta
⌘K

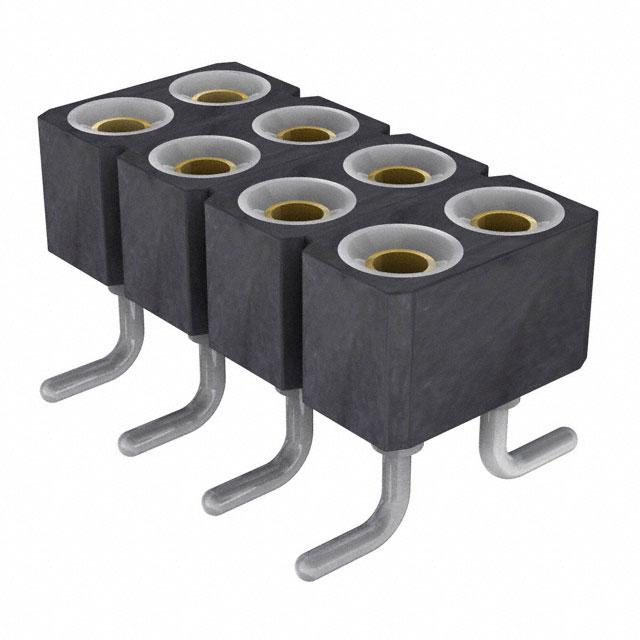

CONN SOCKET 4POS 0.1 GOLD PCB
| Part | Contact Material | Insulation Material | Contact Shape | Contact Finish - Mating | Contact Type | Connector Type | Contact Finish - Post | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows [custom] | Contact Finish Thickness - Mating | Fastening Type | Insulation Color | Mounting Type | Material Flammability Rating | Number of Positions | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Contact Length - Post | Contact Length - Post | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Insulation Height | Insulation Height | Termination | Number of Positions Loaded | Contact Resistance | Termination Post Length | Termination Post Length | Contact Material - Post [custom] | Contact Material - Mating | Housing Material | Type | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [custom] | Pitch - Post | Pitch - Post | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Gold | Female Socket | Socket | Tin | -55 C | 125 °C | 2 | Flash | Push-Pull | Black | Through Hole | UL94 V-0 | 4 | 0.1 " | 2.54 mm | 3 A | 0.125 in | 3.18 mm | 0.1 in | 2.54 mm | 0.165 in | 4.2 mm | Solder | All | |||||||||||||
 Preci-Dip | Gold | Tin | -55 C | 125 °C | Flash | Through Hole | UL94 V-0 | 0.1 " | 2.54 mm | 1 A | Solder | 10 mOhm | 0.125 in | 3.18 mm | Brass | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Zig-Zag Left Stackable | 2 | 16 | 8 | 0.1 in | 2.54 mm | |||||||||||||||||
 Preci-Dip | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Gold | Female Socket | Socket | Tin | -55 C | 125 °C | 2 | Flash | Push-Pull | Black | Surface Mount | UL94 V-0 | 66 | 0.1 " | 2.54 mm | 3 A | 0.1 in | 2.54 mm | 0.22 in | 5.6 mm | Solder | All | |||||||||||||||
 Preci-Dip | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Gold | Female Socket | Socket | Tin | -55 C | 125 °C | 2 | Flash | Push-Pull | Black | Surface Mount | UL94 V-0 | 8 | 0.1 " | 2.54 mm | 3 A | 0.1 in | 2.54 mm | 0.22 in | 5.6 mm | Solder | All | Pick and Place | ||||||||||||||
 Preci-Dip | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Gold | Female Socket | Socket | Tin | -55 C | 125 °C | 3 | Flash | Push-Pull | Black | Through Hole | UL94 V-0 | 72 | 0.1 " | 2.54 mm | 3 A | 0.125 in | 3.18 mm | 0.1 in | 2.54 mm | 0.165 in | 4.2 mm | Solder | All | |||||||||||||
Preci-Dip | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Gold | Female Socket | Socket | Tin | -55 C | 125 °C | 2 | Flash | Push-Pull | Black | Surface Mount | UL94 V-0 | 12 | 0.1 " | 2.54 mm | 3 A | 0.1 in | 2.54 mm | 0.22 in | 5.6 mm | Solder | All | Pick and Place | ||||||||||||||
Preci-Dip | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Gold | Female Socket | Socket | Tin | -55 C | 125 °C | 3 | Flash | Push-Pull | Black | Through Hole | UL94 V-0 | 78 | 0.1 " | 2.54 mm | 3 A | 0.125 in | 3.18 mm | 0.1 in | 2.54 mm | 0.165 in | 4.2 mm | Solder | All | |||||||||||||
 Preci-Dip | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Gold | Female Socket | Socket | Tin | -55 C | 125 °C | 2 | Flash | Push-Pull | Black | Through Hole | UL94 V-0 | 38 | 0.1 " | 2.54 mm | 3 A | 0.125 in | 3.18 mm | 0.1 in | 2.54 mm | 0.165 in | 4.2 mm | Solder | All | |||||||||||||
Preci-Dip | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Gold | Female Socket | Socket | Tin | -55 C | 125 °C | 2 | Flash | Push-Pull | Black | Surface Mount | UL94 V-0 | 72 | 0.1 " | 2.54 mm | 3 A | 0.1 in | 2.54 mm | 0.22 in | 5.6 mm | Solder | All | |||||||||||||||
Preci-Dip | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Gold | Female Socket | Socket | Tin | -55 C | 125 °C | 2 | Flash | Push-Pull | Black | Through Hole | UL94 V-0 | 0.1 " | 2.54 mm | 3 A | 0.125 in | 3.18 mm | 0.1 in | 2.54 mm | 0.165 in | 4.2 mm | Solder | All |
